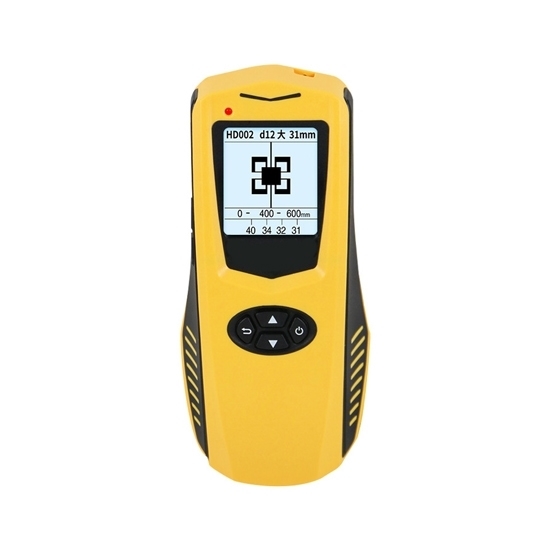

Handheld Concrete Rebar Scanner

0 reviews • Write a review

from

$591.29

Ex Tax: $591.29

Stock: In Stock
Model: RDDLZ-CRS-ZL610
Weight: 1.00
SKU: RDDLZ-CRS-ZL610

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Handheld concrete rebar scanner can penetrate the concrete surface and identify the presence, spacing, and depth of rebar. The reinforcement bar scanner provides real-time feedback, displaying rebar positions on a digital interface, allowing construction professionals to make informed decisions about drilling, cutting, or avoiding specific areas.

Specification

Model	RDDLZ-CRS-ZL610
Diameter Measuring Range	φ6~φ50mm
Measuring Range	Location Range: 1~120mm
	Small Range: 1~60mm
	Large Range: 30~120mm
Thickness Measuring Accuracy	1~40mm, ±1mm
	41~60mm, ±2mm
	61~80mm, ±3mm
	81~100mm, ±5mm
	101~120mm, ±8mm
Rebar Location Accuracy	1~60mm, ±3mm
Rebar Location Accuracy	61~120mm, ±6mm
Diameter Measuring Mode	Yes
JGJ Measurement	Yes
Data Storage	Yes
Off Time	Automatic
Power Supply	Rechargeable Lithium Battery
Working Temperature	10℃~+42℃
Dimension	170x78x38mm
Weight	0.28kg

Detail

Tips: What is a concrete rebar scanner?

A concrete rebar scanner is a specialized device used in construction to detect and locate reinforcement bars (rebars) within concrete structures. These scanners employ various technologies, including electromagnetic induction and ground-penetrating radar, to penetrate the concrete surface and identify the presence, position, and layout of rebars. By providing real-time feedback, these scanners assist construction professionals in ensuring the structural integrity of buildings and infrastructure. The information obtained helps prevent damage to rebars during drilling or cutting processes, ensuring the safety and durability of the concrete structure. Concrete rebar scanners play a crucial role in non-destructive testing, allowing for efficient and accurate inspection of reinforced concrete elements in construction projects.
