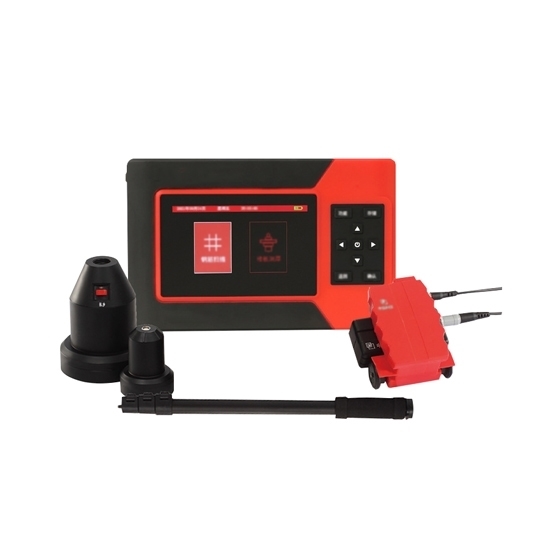

Rebar Scanner And Corrosion Detector

0 reviews • Write a review

from

$2,484.19

Ex Tax: $2,484.19

Stock: In Stock
Model: RDDLZ-ELB-RXS300
Weight: 1.00
SKU: RDDLZ-ELB-RXS300

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rebar scanner and corrosion detector are advanced tools used in construction and infrastructure maintenance. The rebar scanner employs electromagnetic or ground-penetrating radar technology to non-destructively locate and map reinforcement bars (rebar) within concrete structures. This helps ensure structural integrity by assessing the placement and condition of the reinforcement.

Specification

Model		RDDLZ-ELB-RXS300
Rebar Scanning	Protective Layer Thickness Measuring Range (Nominal)	First Range: 6~90mm
	Protective Layer Thickness Measuring Range (Nominal)	Second Range: 7~200mm
	Protective Layer Thickness Calibration Range	0~±50mm
	Rebar Diameter Measuring Range (Nominal)	φ6~φ50mm
	Error Range of Rebar Diameter Measuring Value	±1 Level
	Maximum Allowable Error in Measuring Value of Rebar Protective Layer Thickness
	Protective Layer Thickness First Range	Protective Layer Thickness Second Range
	6~59mm, ≤±1	7~79mm, ≤±1
	60~69mm, ≤±2	80~119mm, ≤±2
	70~90mm, ≤±4	120~200mm, ≤±4
Rebar Corrosion Detection	Detection Method	Potential Method, Gradient Method
	Measuring Potential	±3000mV
	Test Accuracy	±0.1mV
	Measuring Point Spacing	1~100cm
	Data Storage Capacity	5400 Test Areas, 228,000 Measurement Point Data
	Measure Area	8100m²
	Data Storage Capacity	Can Store More Than 200,000 Measurement Points
	Data Transmission Method	Type-C Data Interface
	Ambient Temperature	-10°C~+50°C (Avoid Direct Sunlight for Long periods)
	Relative Humidity	90%RH
	Electromagnetic Interference	No Strong Alternating Electromagnetic Field
	Power Supply	Built-in Rechargeable Lithium Battery
	Dimension	219x56x139mm

Application

Tips: Are rebar scanners suitable for post-construction inspections?

Yes, rebar scanners are highly suitable for post-construction inspections. These tools utilize advanced technology such as electromagnetic or ground-penetrating radar to detect and locate reinforcement bars (rebar) within concrete structures. Post-construction inspections are crucial to ensure the structural integrity and safety of buildings and infrastructure. Rebar scanners provide non-destructive testing, allowing inspectors to assess the condition of the reinforced concrete without causing damage. They can identify the spacing, depth, and diameter of rebars, helping detect any anomalies, corrosion, or construction defects. This information is valuable for evaluating the overall health of the structure and making informed decisions about maintenance or repairs. Rebar scanners contribute to efficient and cost-effective post-construction assessments, promoting structural durability and safety.
