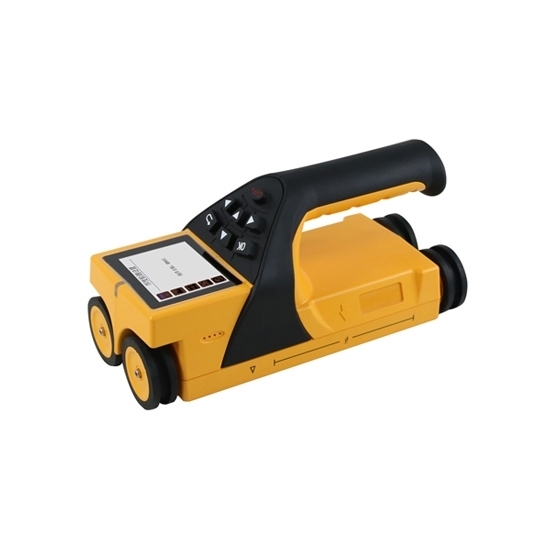

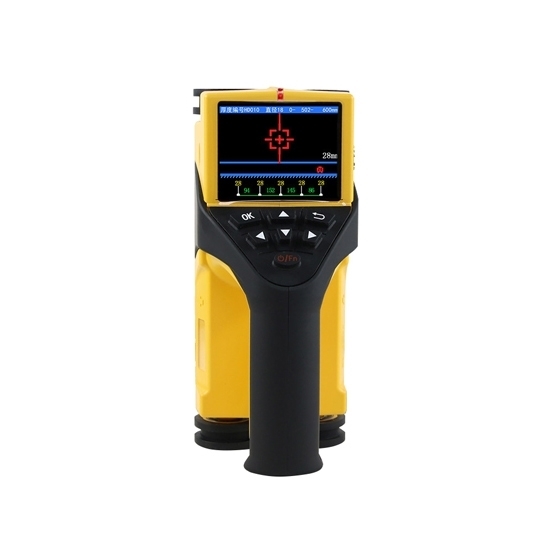

Integrated Concrete Rebar Scanner

0 reviews • Write a review

from

$2,445.59

Ex Tax: $2,445.59

Stock: In Stock
Model: RDDLZ-CRS-ZD31
Weight: 1.00
SKU: RDDLZ-CRS-ZD31

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The integrated concrete rebar scanner is a cutting-edge technology designed for efficient and accurate detection of reinforcement bars (rebar) within concrete structures. The integration of these reinforcement bar detectors enhances construction quality control by ensuring that concrete structures meet design specifications and safety standards. Integrated concrete rebar detector significantly improves construction processes, enhance structural integrity, and contribute to the longevity of concrete structures.

Specification

Model	RDDLZ-CRS-ZD31
Applicable Range of Rebar	φ6~φ50mm
Protective Layer Thickness Range	Small Range: 1~80mm Large Range: 5~185mm
Screen	320x240mm
Power Supply	Built-in High Capacity Lithium Battery
Working Hours	≥16h
Communication	USB Interface
Storage	200K Measuring Point of Rebar
Operation	Silicone Keypad
Dimension	219x92x106mm
Weight	0.6kg(Battery Included)

Measuring Range of Different Rebar Diameters

Rebar Diameter	Small	Large
φ6~φ8mm	1~60mm	5~100mm
φ10~φ18mm	1~80mm	5~120mm
φ20~φ28mm	1~80mm	5~140mm
φ32~φ50mm	1~80mm	5~185mm

Detail

Tips: What are the applications of concrete rebar scanners?

Concrete rebar scanners are crucial tools in construction and civil engineering for non-destructive testing of reinforced concrete structures. These devices utilize various technologies such as electromagnetic induction, ground-penetrating radar, or ultrasonic waves to detect and locate reinforcement bars (rebar) within concrete. The applications are diverse, including quality control during construction, assessing structural integrity, and ensuring adherence to design specifications. By accurately mapping the rebar layout, these scanners help prevent errors in construction, identify potential weaknesses or defects, and ensure compliance with safety standards. They play a vital role in infrastructure projects, buildings, bridges, and other concrete structures, enhancing efficiency, safety, and the overall durability of constructions.
