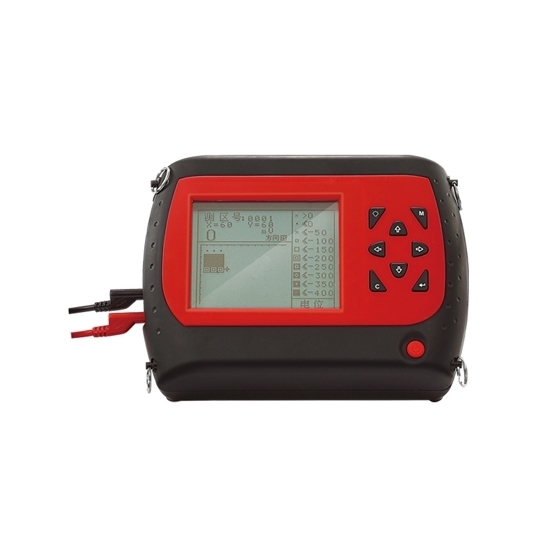

Rebar Corrosion Detector

0 reviews • Write a review

from

$1,478.79

Ex Tax: $1,478.79

Stock: In Stock
Model: RDDLZ-ELB-XS100
Weight: 1.00
SKU: RDDLZ-ELB-XS100

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rebar corrosion detector is a specialized device designed to identify and assess the corrosion of reinforcement bars (rebar) within concrete structures. It typically utilizes non-destructive testing methods to evaluate the condition of the embedded rebar. Rebar corrosion detectors play a crucial role in proactive structural health monitoring and maintenance practices.

Specification

Model	RDDLZ-ELB-XS100
Measuring Potential	±1000mV
Test Accuracy	±1mV
Measuring Point Spacing	1~100cm
Data Storage Capacity	5400 Test Areas, 228,000 Measurement Point Data
Measuring Area	8100m²
Ambient Temperature	10°C~ +50°C (Avoid Prolonged Direct Sunlight Exposure)
Relative Humidity	≤90%RH
Electromagnetic Interference	No Strong Alternating Electromagnetic Field
Power Supply	Built-in Rechargeable Lithium Battery (Power Supply Time Up to 50 Hours)
LCD Screen Resolution	160x128
Dimension	220x162x91mm

Detail

Tips: Can rebar scanners detect other objects or anomalies in concrete?

Rebar scanners are primarily designed to detect and locate reinforcing bars (rebar) within concrete structures. These devices utilize electromagnetic or ground-penetrating radar technology to identify the presence, depth, and spacing of rebar, aiding in construction and inspection processes. While rebar scanners excel at their intended purpose, they may incidentally detect other objects or anomalies within the concrete, such as conduits, post-tension cables, or voids. However, their accuracy in identifying these secondary elements may vary, and they are not specialized for detecting anomalies beyond rebar. For comprehensive assessment of concrete structures, additional tools like ground-penetrating radar or concrete imaging systems may be employed to identify various features and potential defects.
