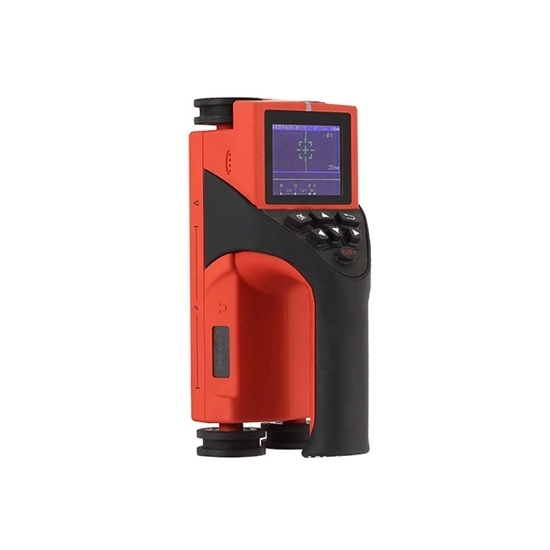

Integrated Concrete Rebar Detector

0 reviews • Write a review

from

$3,175.79

Ex Tax: $3,175.79

Stock: In Stock
Model: RDDLZ-CRS-RS900T
Weight: 1.00
SKU: RDDLZ-CRS-RS900T

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The integrated concrete rebar detector is a cutting-edge technology designed for efficient and accurate detection of reinforcement bars (rebar) within concrete structures. The integration of these reinforcement bar detectors enhances construction quality control by ensuring that concrete structures meet design specifications and safety standards. Integrated concrete rebar scanner significantly improves construction processes, enhance structural integrity, and contribute to the longevity of concrete structures.

Specification

Model	RDDLZ-ELB-RS900T
Applicable Range of Rebar	φ6~φ50mm
Protective Layer Thickness Range	Small Range: 1~190mm	Large Range: 5~210mm
Maximum Allowable Error of Protective Layer Thickness	1~80mm, ±1	5~80mm, ±1
	81~120mm, ±2	81~120mm, ±2
	/	121~210mm, ±4
Screen	320x240mm
Power Supply	Built-in High Capacity Lithium Battery
Working Time	≥16h
Communication Mode	Type-C Transmission Interface
Storage Capacity	200,000 Rebar Measurement Points
Working Temperature	-10℃~+50℃
Relative Humidity	<90%RH
Operation	Silicone Keypad
Dimension	219x92x106mm
Weight	0.6kg

Detail

Tips: How does a rebar scanner work?

A rebar scanner, also known as a reinforcement detector, is a tool designed to locate and identify reinforcing bars (rebars) within concrete structures. These devices utilize electromagnetic technology to detect variations in the material's electromagnetic field caused by the presence of metal, such as steel rebars. When the scanner is moved over a surface, it emits electromagnetic waves that interact with the reinforcing bars. The device then analyzes the reflected signals, providing information about the rebar's depth, diameter, and spacing. This information is crucial in construction and engineering projects to ensure the integrity of concrete structures and prevent damage during drilling or cutting. Rebar scanners contribute to efficient and precise inspection processes, enhancing the safety and reliability of construction work.
