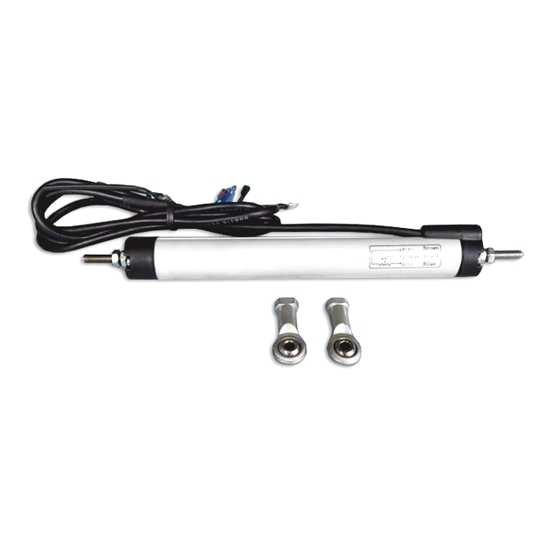

Linear Position Sensor 10-300mm

Linear Position Sensor 10-300mm
Linear Position Sensor 10-300mm
0 reviews • Write a review
from
$172.92
Ex Tax: $172.92
  • Stock: In Stock
  • Model: RDDLZ-DISS-H300
  • Weight: 1.00
  • SKU: RDDLZ-DISS-H300

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The linear displacement sensor has 2mm buffer stroke at both ends and direct cable connection, no need centering. The maximum allowable velocity is 5m/s when mounted vertically and 2m/s when mounted horizontally.

Applications: Linear position sensor has two miniature hinges at both ends for fixing. It's very suitable for the position detection of small mechanical stroke and swinging. And the occasions have no requirement on centering. Such as robot, pick-up machine, brick machine, shoes-making machine, ceramic machinery, sluice, etc.
Specification:

BasicsModelRDDLZ-LDSH
Weight100-500g
Measuring range *10mm25mm50mm75mm100mm125mm150mm175mm200mm225mm250mm275mm300mm
Technical parametersMechanical strokeMeasuring range + 3mm
Resistance1kΩ2 kΩ5 kΩ
Linearity0.1%FS0.08%FS0.05%FS
Repeated accuracy0.01mm
Maximum operating speed5m/s
Operating current≤10mA
Operating voltageDC 5VDC 10VDC 24V
Output signal *DC 0-5VDC 0-10VDC 0-5V, 0-10V, 4-20mA (optional)
Operating temperature-40℃～+135℃
Protection classIP67
A lengthMeasuring range + 120mm
B lengthMeasuring range + 33mm
DiameterΦ18mm or Φ22mm
WiringBrown: Vcc, blue: -Vcc, black: Output

Dimensional drawing (unit: mm):
