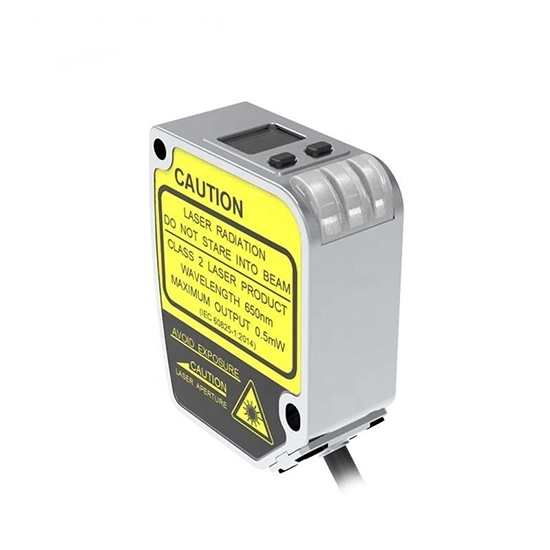

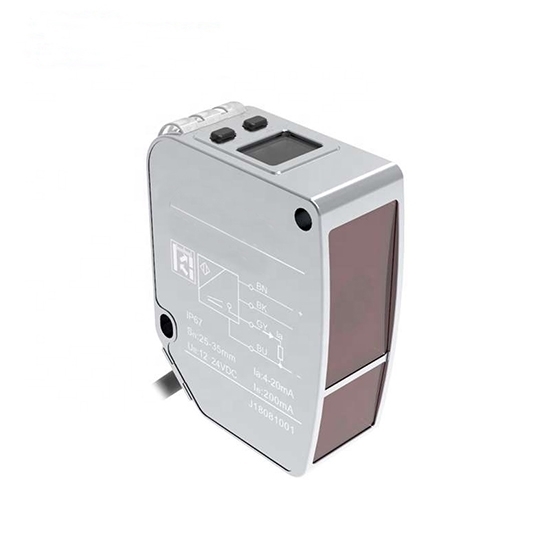

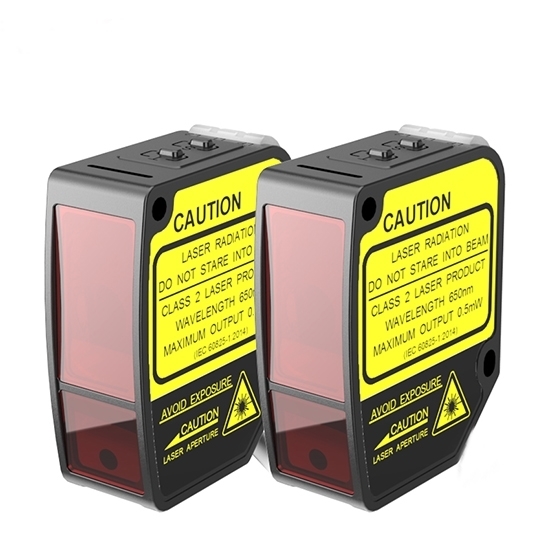

Laser Distance Sensor, 30-100mm

0 reviews • Write a review

from

$1,047.14

Ex Tax: $1,047.14

Stock: In Stock
Model: RDDLZ-LDS-PDACC10
Weight: 1.00
SKU: RDDLZ-LDS-PDACC10

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Exquisite appearance and light aluminum housing, easy to mount and dismount.
Convenient operation panel with visualized OLED display to complete all function settings fastly.
Small diameter light spot to accurately measure very tiny objects.
Key or remote teach-in to easily set response time for different applications.
Powerful function setting and flexible output way.
Complete shielded desgin, stronger anti-interference perfomance.
IP67 protection degree, able to work in water or dusty environment.

Specification

Model	RDDLZ-PDA-CC10DGR	RDDLZ-PDA-CC10TGI
Linear Accuracy	±0.3% F.S	±0.4% F.S
Supply Voltage	10-30V DC	12-24V DC
Output Signal	RS-485 (Support Modbus protocol)	4...20mA (Load resistance<390Ω)
Connection	2m 5-pins/ 4-pins PVC Cable	4-pin: analog output
Light Source	Red laser (650nm)
Laser Class	Class 2
Spot Diameter	1mm*3mm@100mm
Measuring Range	30-100mm
Resolution	15um@80mm; 500@500mm
Repeated Accuracy	30um@80mm; 250um@250um; 1000um@500mm
Voltage Drop	<2.5V
Power Consumption	≤ 700mW
Load Current	200mA
Circuit Protection	Short circuit, reverse polarity, overload protection
Ambient Temperature	-10-50℃
Temperature Drift	±0.02% F.S./℃
Response Time	2ms/ 16ms/ 40ms (configurable)
Ambient Humidity	35-85% RH (No condensation)
Anti-ambient Light	Incandescent light: <3,000lux
Impluse Withstand	500m/s² (About 50G)3 times each in X, Y, Z directions
Vibration Resistance	10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
Protection Degree	IP67
Material	Housing: Aluminum; Lens cover: PMMA; Display panel: PC
Accessory	Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
Dimension	655123mm
Certificates	CE, UL, CCC, ROHS
Warranty	12 months

Remark:
①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card.
②The statistical data follows the 3σ criteria
③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
④Slave address,baud rate setting only for RS-485 series.
⑤Protecion circuit only for switch output.

Dimension (unit=mm)

Accessory Dimension

Wiring diagram

Remark:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

Installation of laser distance sensor

Tips: Working Principle of Laser Distance Sensor.

When the laser distance sensor is working during the transmission time, the laser diode is first aimed at the target and emits laser pulses. The laser light is scattered in all directions after being reflected by the target. Part of the scattered light returns to the sensor receiver and is imaged on the avalanche photodiode after being received by the optical system. The avalanche photodiode is an optical sensor with an internal amplification function, so it can detect extremely weak light signals. Record and process the elapsed time from when the light pulse is sent to when it is received, and then the distance to the target can be determined. Transit time Laser sensors must measure the transit time extremely accurately because the speed of light is too fast.
