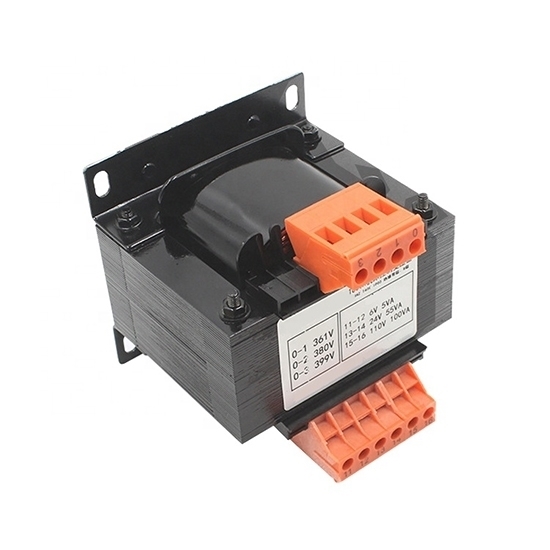

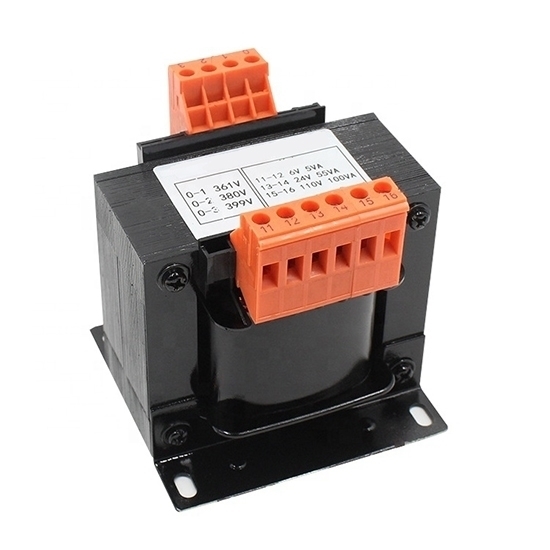

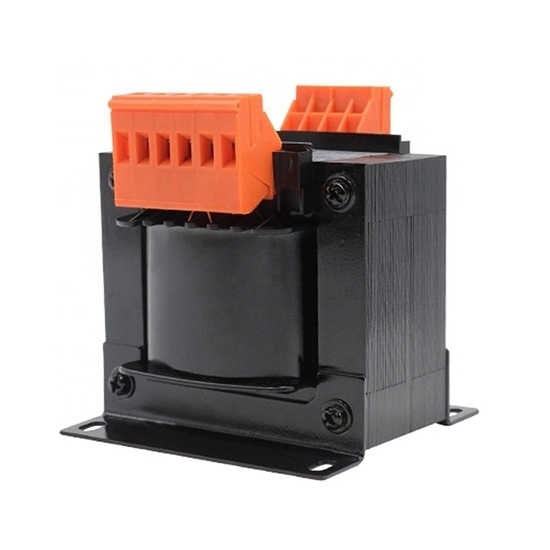

800VA Control Transformer, 220/380V To 120/48V

0 reviews • Write a review

from

$425.69

Ex Tax: $425.69

Stock: In Stock
Model: RDDLZ-T-BK800VA
Weight: 1.00
SKU: RDDLZ-T-BK800VA

Available Options

Winding Material

Primary Voltage (AC)

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1-phase 800VA control transformer on sales, step down 220/380V AC input to 120/48V AC output in 50Hz or 60Hz system. Primary and secondary voltages are customizable and but should note that primary voltage not exceed 500V, secondary voltage not exceed 240V.

Specifications

Product Name	Single phase control transformer
Product Model	RDDLZBK-800VA
Winding Material*	Enameled copper wire or enameled aluminum wire (Optional)
Total Output Capacity	800VA Note: (If your output includes multiple voltage levels, please email us with the capacity of each output. The total capacity should be the sum of all individual outputs. For example, if your outputs are aV and bV, then aV (capacity) + bV (capacity) = 800VA).
Primary Voltage* (VAC)	110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Optional and Customized)
Secondary Voltage* (VAC)	6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Optional and Customized)
Frequency	50 / 60Hz
Insulation Level	F / H
Withstand Voltage Test	Primary to secondary 2.5KV/min
	Primary to safety ground 2.5KV/min
	Secondary to safety ground 1.5KV/min
Insulation Resistance	Primary to secondary 2500V>100 megohm
	Primary to safety ground 2500V>100 megohm
	Secondary to safety ground 1500V>100 megohm
Induction Withstand Voltage Test	125Hz/ 800V/min
Ground Resistance	25A<80 milliohm
Cooling Method	Natural or air cooling
Transformation Ratio	<3%
Air Carrying Current	<6%
Impedance Voltage	about 6%
Total Losses	0.1
Efficiency	80%~99%
Operating Temperature	-25℃~40℃ (40℃, 93% RH, 56 days)
Storage Temperature	-25℃~100℃ (40℃, 93% RH, 56 days)
Certificate	CE, ISO
Warranty	12 months
Size	Overall size: 150135155mm, Hold distance for installation: 120115mm, Installation hold: 127mm
Weight	13kg

Schematic diagram illustration

Control transformer dimension

Overall size (mm)			Hole distance for installation (mm)		Installation hole (mm)
B	E	D	A	C	K x J
150	135	155	120	115	12 x 7

Tips: 2 points should be noted when using 800VA control transformers

The control transformer is a kind of small dry-type transformer, which is often used as the power supply of local lighting, signal lamp or indicator lamp, and as the power supply of control circuit in electrical equipment. Two points should be paid attention to when using the control transformer: One is the power of the transformer, the other is the correct wiring.

The total power of the load connected to the secondary side shall not be greater than the power of the control transformer, and short circuit is not allowed. Otherwise, the temperature will be too high, and transformer will be burned if it is serious.
The primary and secondary wiring of the control transformer shall not be wrongly connected, especially the primary side wiring. The voltage value of the primary side shall be marked on its terminal. It is not allowed to connect the 380V power line to the 220V terminal, but the 220V power line can be connected to the 380V terminal. At this time, all the output voltage of the secondary side will be reduced by 1.73 times. The secondary side load shall be connected to the corresponding terminal according to its rated voltage, for example, the 6.3V indicator light shall be connected to the 6.3V terminal, the 36V lighting bulb of the machine tool shall be connected to the 36V terminal, and the 127V AC contactor coil of the machine tool shall be connected to the 127V terminal.
