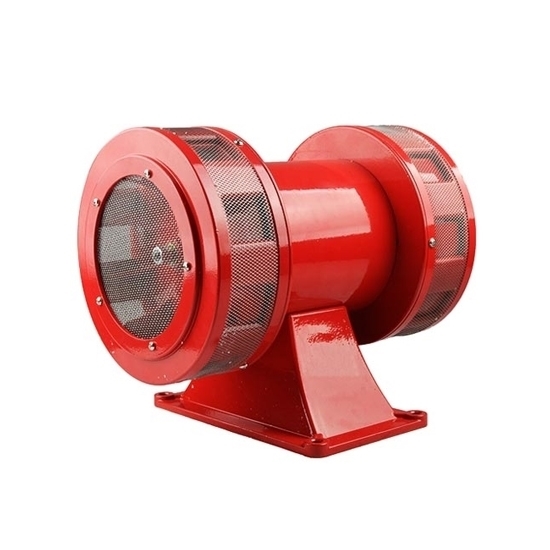

Motor Alarm, 180dB, AC 220V/AC 110V

Motor Alarm, 180dB, AC 220V/AC 110V
Motor Alarm, 180dB, AC 220V/AC 110V
0 reviews • Write a review
from
$481.48
Ex Tax: $481.48
  • Stock: In Stock
  • Model: RDDLZ-MOALM-180
  • Weight: 1.00
  • SKU: RDDLZ-MOALM-180

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Motor alarm has high volume 180dB, optional working voltage AC 220V/AC 110V and two-way alarm mode.

Specification:

ModelRDDLZ-MOALM-MS790
Shipping weight14kg
Dimension333*248*283mm
Working voltage *AC 220V, AC 110V
Working frequency50Hz/60Hz
Working current2.2A, 4.1A
Output volume180dB
SoundContinuous alarm sound (It is best to work for 2 minutes, and then stop working for 30 minutes. After the motor becomes cool, the motor alarm can work again.)
Working modeAlarm when power on
Shell materialCast aluminum alloy
ColorRed
Protection classIP44
Insulation resistance100MΩ (at 500VDC)
Motor speed1000 rpm

Dimension (unit: mm):

Tips: What is a motor alarm?
The motor alarm is a motor driven siren that can be used for audible alarm in case of emergency. It is composed of the main parts such as the rotor, stator, positioning base, positioner, stainless steel cover, motor, base, etc.

  1. Rotor: It is the most important part of the motor alarm. It can generate sound source during high-speed operation.
  2. Stator: The part that highly matches the rotor usually has about 10 sound windows. The number of sound window is equal to the number of rotor vanes.
  3. Positioning base: The bracket for fixing positioner.
  4. Positioner: The sound window can be closed automatically when the rotor is in non-working state or stopped, to prevent rats, birds, spiders and other debris in the air from entering the motor alarm.
  5. Stainless steel cover: On the one hand, it is a sound reinforcement effect after the sound is refracted. On the other hand, it protects the entire alarm and prevents rainwater from entering the alarm.
  6. Motor: The power device of the alarm drives the rotor to make a sound.
  7. Base: The bracket of the whole alarm.
