4" Electric Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$1,412.39

Ex Tax: $1,412.39

Stock: In Stock
Model: RDDLZ-EBV-100B
Weight: 1.00
SKU: RDDLZ-EBV-100B

Available Options

Power Supply

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Industrial electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	RDDLZ-EBV-100B
	Port Size	4 inch (DN100, 100mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	RDDLZ-KLST-20	RDDLZ-KLST-60
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	80N.m, 9s 100N.m, 15s 150N.m, 20s 200N.m, 30s/ 60s	150N.m, 9s 250N.m, 15s 400N.m, 20s 600N.m, 30s/ 60s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Note: Threaded ball valve, PVC true union ball valve and 2 way flanged ball valve match with RDDLZ-KLST-20 electric actuator, and 3 way flanged ball valve matches with RDDLZ-KLST-60 electric actuator.

Body Dimension (Unit: mm)

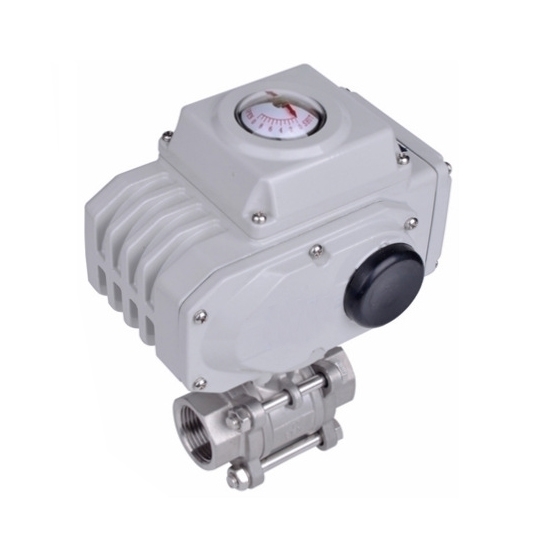

2 way, stainless steel, threaded type

φd	L	A	H
98	266	255	285

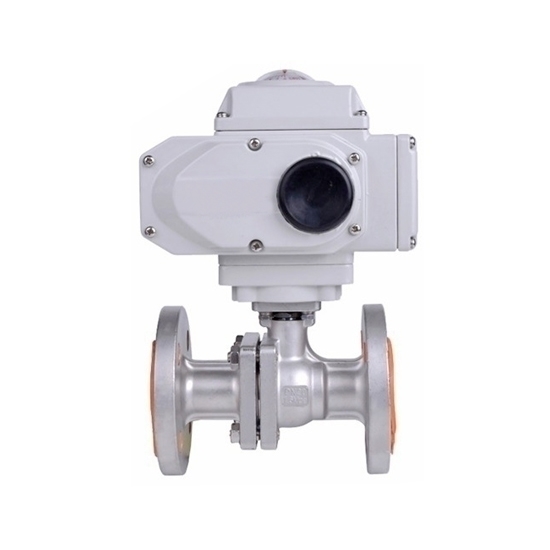

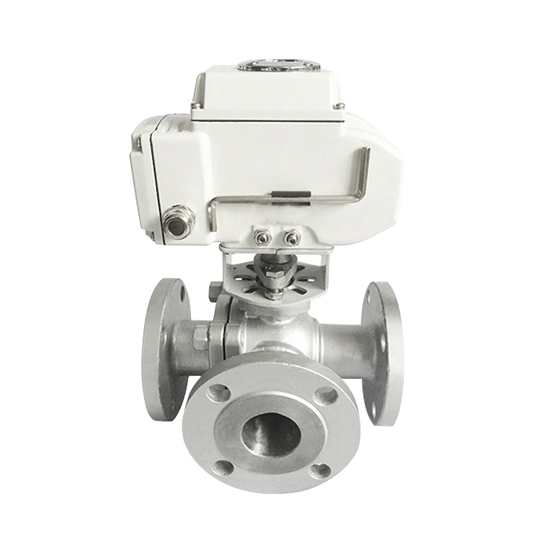

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
100	280	20	2	215	155	180	321	321	255	255	320	8-φ18

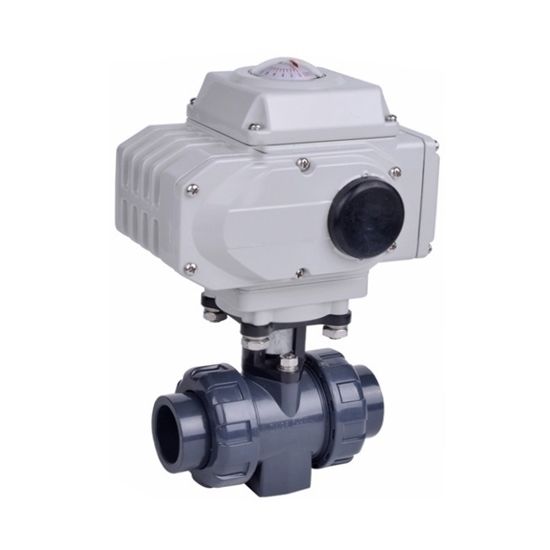

2 way, PVC true union type

DN	D	D1	d	L1	A	H
100	110	146	99	45	255	425

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Electric actuated ball valve features

Automatic pressure relief structure: When the pressure in the side chamber is abnormally increased, the medium in the middle chamber can rely on its own thrust to push the valve seat to automatically release the pressure, thereby ensuring the safety of valve lift.
Reliable sealing of the valve stem: The valve stem adopts a bottom-mounted structure with an inverted seal. The sealing force of the inverted seal increases with the increase of the medium pressure, so the reliable sealing of the valve stem can be ensured. When the valve stem is abnormally boosted, it will not be ejected.
Fireproof structure: According to the working conditions and the needs of users, the ball valve can be planned as a fireproof structure.
Anti-static structure: When the valve is operated, due to the friction between the ball and the valve seat, electrostatic charge will be generated and accumulated on the ball. In order to prevent the occurrence of electrostatic sparks, electrostatic equipment is specially installed on the valve to export the electric charge accumulated on the sphere.
