Digital LCR Meter, 20Hz~1MHz

0 reviews • Write a review

from

$3,739.54

Ex Tax: $3,739.54

Stock: In Stock
Model: RDDLZ-LCRM-20100
Weight: 1.00
SKU: RDDLZ-LCRM-20100

Available Options

Test Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Multi-specification test function, The test voltage or current automatic level control of ALC function.
Output impedance of 4 different signal sources: 30Ω, 50Ω, 100Ω, 10/CC.
Internal 0V, 1.5V and 2V DC bias voltage, optional ± 5V (± 100mA) and 1A internal DC bias source.
Built-in comparator, 10 bins and bin counters. 10 point list scanning function.

Specification

Model	RDDLZ-LCRM-2828	RDDLZ-LCRM-2819
Test Frequency	20Hz~1MHz, 0.01Hz resolution	20Hz~500kHz, 0.01Hz resolution
Test Specifications	\|Z\|, \|Y\|, C, L, X, B, R, G, D, Q, θ, DCR
Basic Test Accuracy	0.05%
Equivalent Circuit	Series, parallel
Mathematical Function	Absolute value deviation, percentage deviation
Range Mode	Auto, Hold, manual
Trigger Mode	Internal, Manual, External, Bus
Measurement Speed (≥1kHz)	Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
Averaging Rate	1—255
Delay Time	time 0—60s, n 1 ms step by step
Correction Function	Open, short, load
List Sweep	10 points
Display Mode	Direct, Δ, Δ%, V/I (V/I monitor)
Display	800×480 RGB7inch 16:9 TFT LCD display
Power Requirements	110V~240V
Test signal
Output Impedance	30Ω, 50Ω, 100Ω, 10/CC selectable
Test Level	Normal: 5mV－2V Accuracy: 10%, with step of 1 mV Constant level: 10mV－1V Accuracy: 5%, with step of 1 mV
DC Bias Source	interior: 0V, 1.5V, 2V, Accuracy 1%\| option: ±5V (±100mA) Dc bias source option 1A: 0-1A DC bias current source option.
Display Range	\|Z\|, R, X: 0.01MΩ—99.9999 MΩ DCR: 0.001MΩ—99.9999MΩ \|Y\|, G, B: 0.00001µS—99.9999S C: 0.00001pF—9.9999F L: 0.00001µH—9999.99H D: 0.00001—9.9999 Q: 0.00001—9999.9 θ (DEG): -179.999º—179.999º θ (RAD): -3.14159—3.14159
Comparator Function	10 bins: 9 pass bin, 1 fail bin, AUX bin
Multiparameter	Four parameters can be chosen optionally measure and display at the same time
Curve Scanning Function	A variety of test conditions, the piece to be measured for graph scanning separation
Memory	Internal storage, USB extended storage
Interface	Standard: RS232C, HANDLER, USB HOST, USB DEVICE, headphone jack, solid interface Optional: GPIB, LAN
Size	375mm (W)135mm (H)350mm (L)
Certification	CE
Standard Accessories	26011B 4 terminal Kelvin test clip leads 26005B 4 terminal test fixture 26010 gilded shorting plate
Optional Accessories	26009B SMD test fixture 26008A SMD Test box 26010 gilded shorting plate RS232 Communication software customization

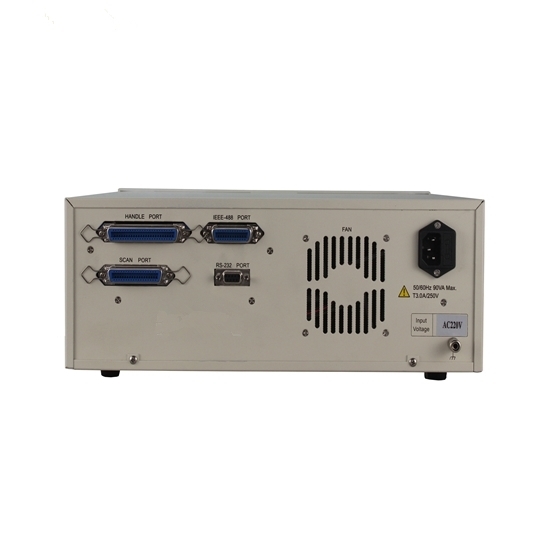

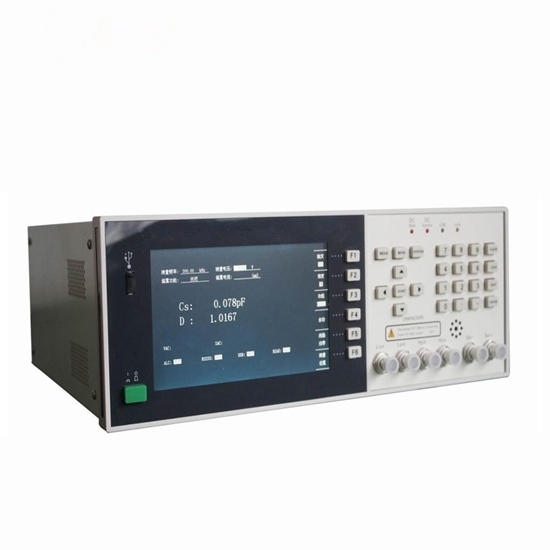

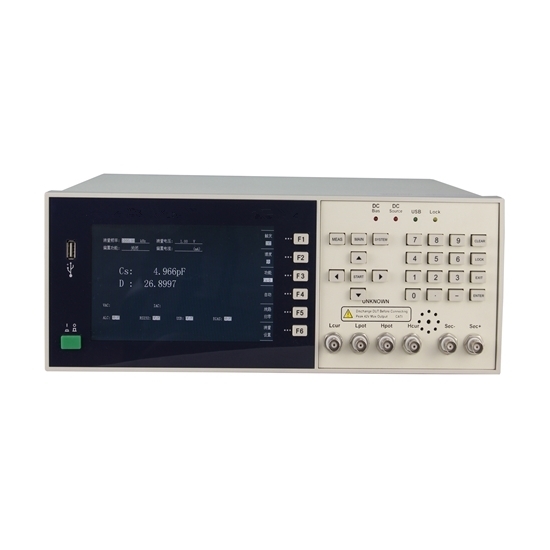

Panel Details

Dimension Drawing

Tips: LCR meter measurement steps.

Set the test frequency.
Test voltage or current level.
Select test specifications, such as C, L, X, B, R, G, D, | Z |, | Y |, etc.
Instrument calibration, mainly for open and short calibration, more precise LCR meter also needs to perform load calibration.
Select test fixture.
Fixture compensation
Put the DUT on the fixture to start test.
