Digital over and under voltage protection device for sale online, available with 63A/80A/100A rated current, flame retardant housing, DIN rail installation,and optional 2 pole or 4 pole. RDDLZ under voltage protector with a flame-retardant material shell, can be installed in a standard distribution box.

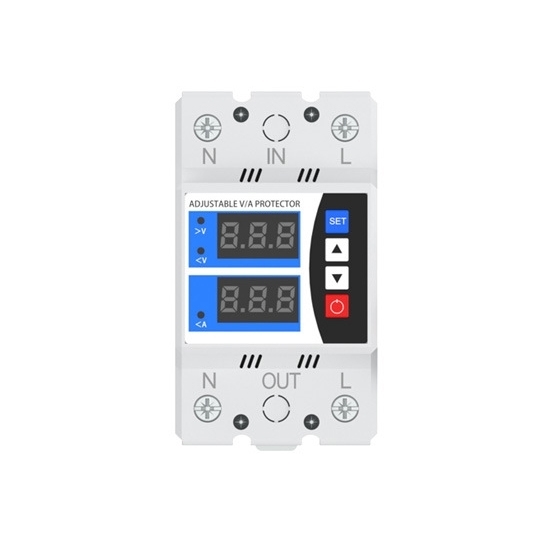

Specifications (2 Pole)

Model: RDDLZ-FB-118
Pole: 2 Pole
Supply Terminals: N, L
Rated Supply Voltage: AC 220V; DC 85-300V
Rated Frequency: 40/50/60/70Hz
> V Setting Range: AC130-300V; DC130-300V
< V Setting Range: AC80-210V; DC85-210V
Voltage Hysteresis: 5V
Overvoltage Trip Delay: 0.5s
Voltage Accuracy: <1%
Max. Operating Phase Voltage: 350V
Max. Operating Current: 63A/80A
Altitude: ≤2000m
Function: Lightning Protection
Permissible Relative Humidity: ≤50% at 40℃ (Without Condensation)
Ambient Temperature: -25℃~+55℃
Net Weight: 63A: 201g; 80A: 213g
Size: 83x54x66mm

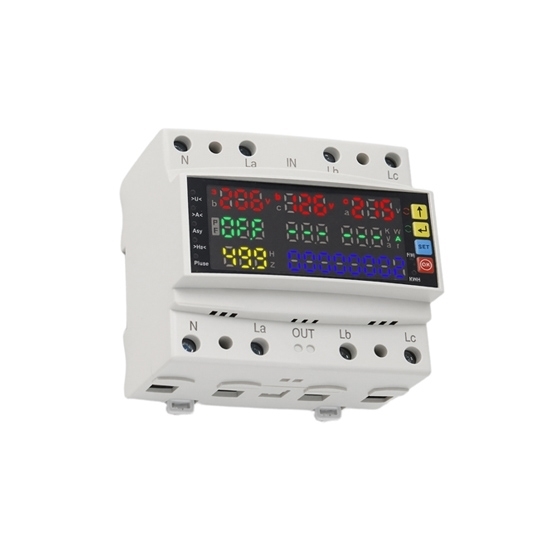

Specifications (4 Pole)

Model: RDDLZ-FB-168
Pole: 4 Pole
Rated Supply Voltage: AC 230V
Operating Voltage Range: AC 230-300V
Rated Frequency: 40-70Hz
Lag: Overvoltage and Asymmetry: 5V; Undervoltage: 5V
Measurement Accuracy: 0.5 class
Rated Insulation Voltage: 450V
Output Contact: 3NO
Electrical Life: 10⁵
Mechanical Life: 10⁵
Protection Class: p20
Pollution Degree: 3
Altitude: <2000m
Operating Temperature: -5℃~40℃
Humidity: ≤50%or40℃(Condensation Free)
Storage Temperature: -10℃~55℃
Size: 110x108x70mm

Dimensions and Wiring Diagrams (Unit: mm)

2 Pole

4 Pole

Tips: Advantages of Digital Overvoltage and Undervoltage Protector

The digital overvoltage and undervoltage protector offers accurate and stable monitoring of the power supply, while allowing flexible adjustment of thresholds and delay settings. It reacts quickly to abnormal voltage changes to safeguard equipment and often combines multiple protection functions in a single unit. With a clear digital display for real-time voltage information and a durable electronic design, it ensures reliable performance and a longer service life.
