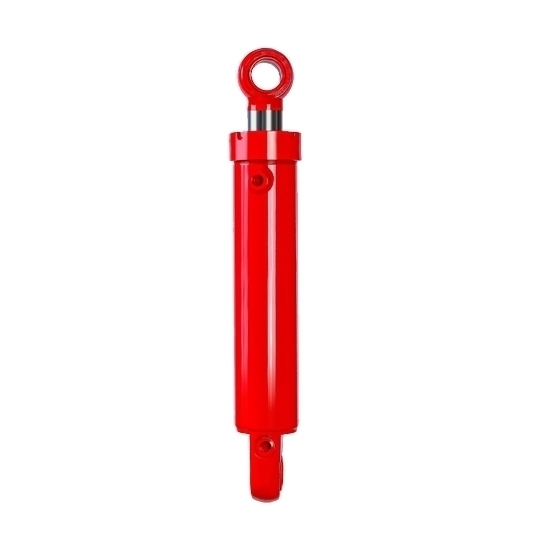

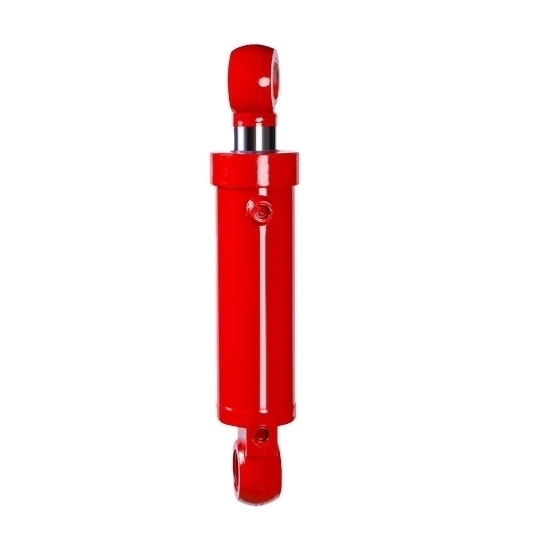

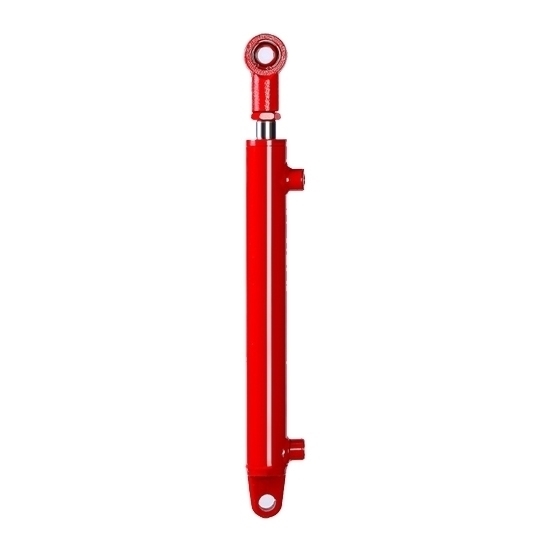

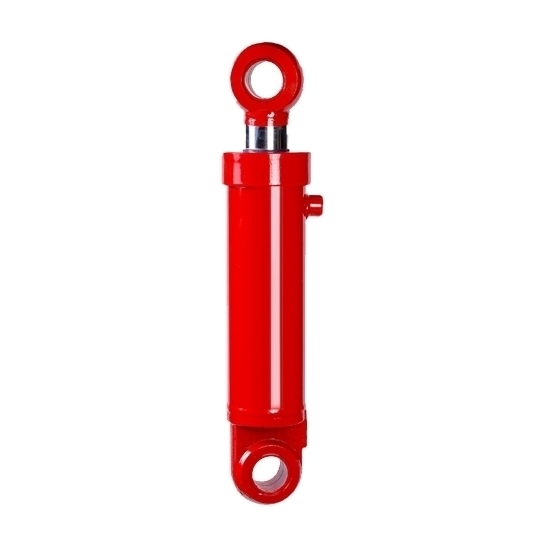

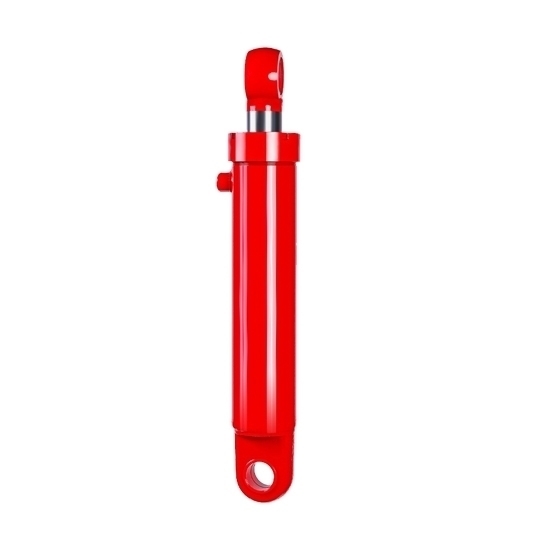

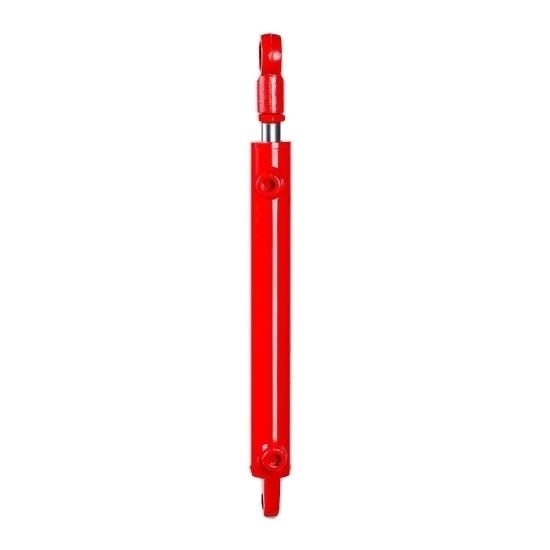

Double Acting Welded Hydraulic Cylinder, 32 Inch (800mm) Stroke

0 reviews • Write a review

from

$447.85

Ex Tax: $447.85

Stock: In Stock
Model: RDDLZ-WHC-800MM
Weight: 1.00
SKU: RDDLZ-WHC-800MM

Available Options

Bore Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small double acting welded hydraulic cylinders are commonly used in mini excavators, robots, log splitters, dump trucks, press machine and dump trailers, and more. They are capable of performing pushing and pulling actions, making them versatile for tasks that require controlled movement and force in both directions.

Specification

Model	RDDLZ-HSG40800	RDDLZ-HSG50800	RDDLZ-HSG63800	RDDLZ-HSG80800	RDDLZ-HSG100800
Acting Type	Double Acting
Stroke	32 inch (800mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ40mm	φ50mm	φ63mm	φ80mm	φ100mm
Load Capacity	2 Ton	3 Ton	5 Ton	8 Ton	12 Ton
Rated Push Force	30772N (3 Ton)	30772N (3 Ton)	49850N (5 Ton)	80384N (8 Ton)	80384N (8 Ton)
Rated Pull Force	21121N (2 Ton)	21121N (2 Ton)	31681N (3 Ton)	48984N (5 Ton)	49014N (5 Ton)
Oil Port	18*1.5	18*1.5	18*1.5	18*1.5	22*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

RDDLZ-HSG40800

RDDLZ-HSG50800

RDDLZ-HSG63800

RDDLZ-HSG80800

RDDLZ-HSG100800

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG40800	40	50	25	800	18*1.5	20	1030	1080
RDDLZ-HSG50800	50	60	28	800	18*1.5	20	1040	1090
RDDLZ-HSG63800	63	73	35	800	18*1.5	30	1070	1140
RDDLZ-HSG80800	80	90	50	800	18*1.5	40	1100	1180
RDDLZ-HSG100800	100	112	63	800	22*1.5	50	1170	1260

Tips: Can a single acting hydraulic cylinder be converted to double acting?

Converting a single acting hydraulic cylinder to a double acting one is possible but involves modifications and additional components. A single-acting cylinder operates in one direction, usually extending under hydraulic pressure and retracting by a spring or external force. To make it double acting, you need to add a second hydraulic port on the cylinder's blind end, allowing fluid to push and retract the piston.

The conversion process typically involves disassembling the cylinder, machining the blind end to create the new port, and installing seals and a rod on the blind end to make it functional. Additionally, you'll need to modify your hydraulic system to accommodate the double acting hydraulic cylinder, with the appropriate control valves, hoses, and connections.

While conversion is feasible, it requires some technical expertise and equipment. It's crucial to ensure that the cylinder's structural integrity and seal compatibility are maintained during the modification to prevent leaks or operational issues. Consulting with a hydraulic expert is advisable to ensure a successful conversion.
