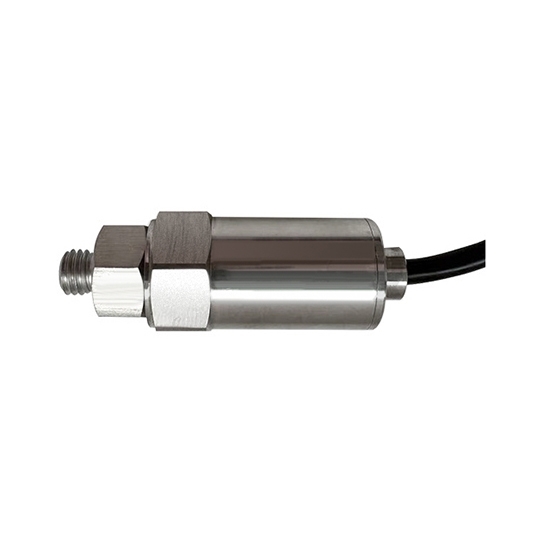

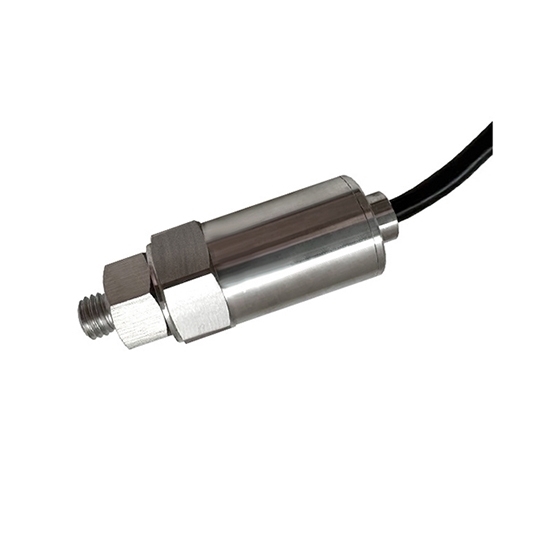

Accelerometer and Vibration Sensor, 4-20mA Output, 0-20mm/s

0 reviews • Write a review

from

$258.77

Ex Tax: $258.77

Stock: In Stock
Model: RDDLZ-AS-1020A
Weight: 1.00
SKU: RDDLZ-AS-1020A

Available Options

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

All-in-one vibration transmitter combines accelerometer and vibration sensor and precision measurement circuitry to form a high-precision vibration measurement system. Offering a measurement range of 10g/0-20mm/s with 4-20mA output, it is suitable for vibration measurement of 600rpm-60000rpm (10-1000Hz) machines.This accelerometer and vibration sensor can be directly connected to DCS, PLC, or other devices, and it is ideal for measuring the vibration of fans, motors, pumps, and other factory equipment.

Specifications

Model	RDDLZ-SAMA50A-20MM	RDDLZ-SAMA10A
Frequency Response	10~1000 Hz	10~1000 Hz
Measuring Range	0~20mm/s	10g
Signal Output	4-20mA	4-20mA
Output Impedance	≤500Ω	≤500Ω
Working Voltage	DC24V±10%	DC24V±10%
Connection Method	2-wire	2-wire
Ambient Temperature	-40°C~85°C	-40°C~85°C
Relative Humidity	≤90%	≤90%
Overall Dimension	φ24*56mm	φ24*56mm

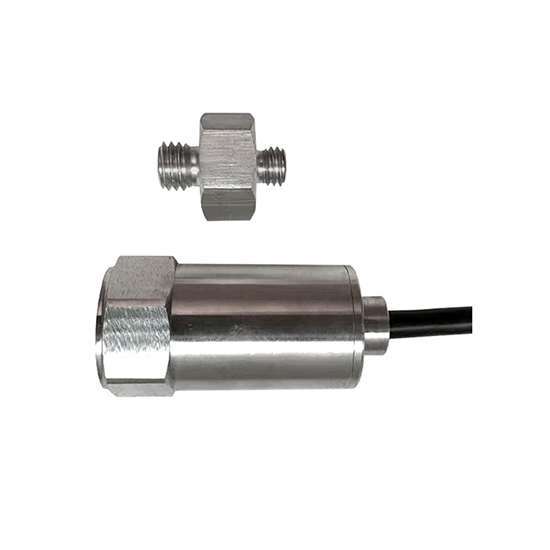

Installation	M10*1.5 threaded mounting	M10*1.5 threaded mounting
Weight	Approx. 100g	Approx. 100g

Dimension (unit: mm)

Wiring Diagram

Wiring Description

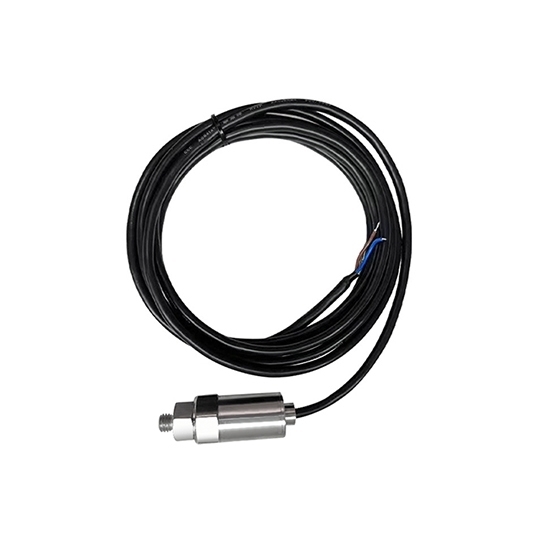

The brown wire is connected to the positive end of DC24V power supply, and the blue wire is connected to the negative end of DC24V power supply, meanwhile, the brown and blue wires are also the 4～20mA output leads. The connecting wires are required to have good insulation properties, and a two-core shielded cable is used.

Application

Tips: What are the mounting options for accelerometer vibration sensors?

An accelerometer vibration sensor detects vibration by measuring the change in acceleration of an object. It typically utilizes piezoelectric materials or capacitive elements to convert the acceleration caused by vibration into an electrical signal. This signal can be further processed for monitoring equipment operating conditions, detecting faults or predicting equipment maintenance needs.

Common mounting methods for accelerometer and vibration sensors include threaded and adhesive mounting. Threaded mounting is used for more robust equipment, while adhesive mounting is used where temporary installation is required. Choosing the right mounting method ensures that the sensor will work reliably and provide accurate vibration data.
