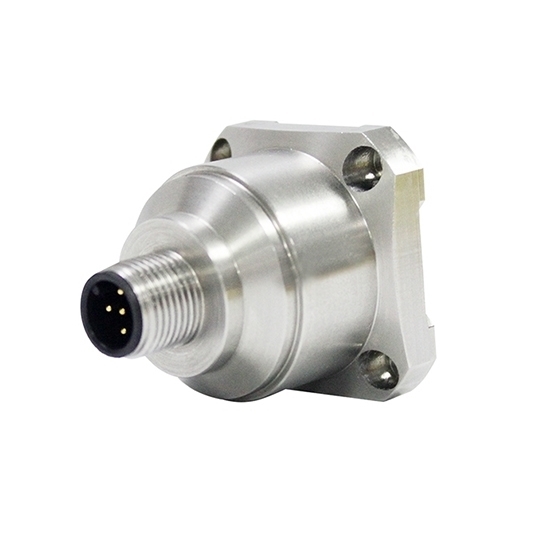

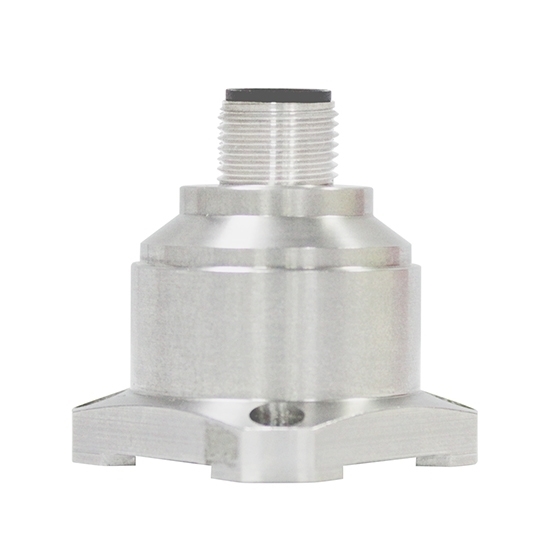

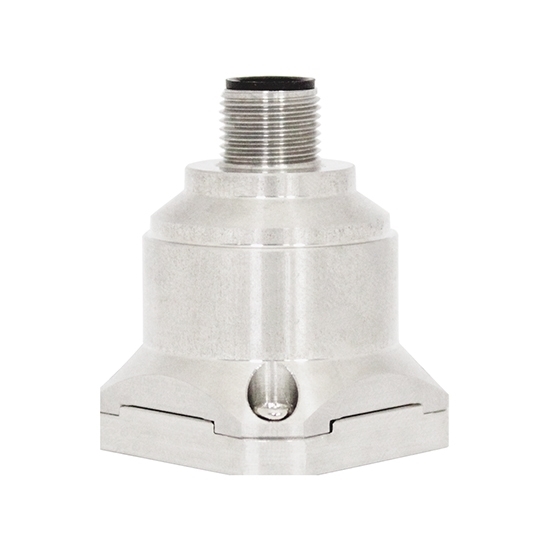

3-axis Accelerometer Sensor, Digital Output

0 reviews • Write a review

from

$1,289.60

Ex Tax: $1,289.60

Stock: In Stock
Model: RDDLZ-AS-AKF392
Weight: 1.00
SKU: RDDLZ-AS-AKF392

Available Options

Installation

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

500Hz bandwidth triaxial accelerometer sensor with short recovery time, 1%/ 2%/ 5% lateral vibration sensitivity ratio, 2.4kHz/ 5.5kHz resonance frequency. It is widely used in crash record, fatigue monitoring and prediction, wind power generation, low frequency vibration and automatic monitoring, automobile, bridge and road roller.

Parameters

Model	RDDLZ-AKF392
Measuring Range	±2g	±4g	±8g	±10g	±20g	±40g
Nonlinearity	<0.5% FS (highest)	<0.8% FS (highest)	<1%FS (highest)	<1%FS (highest)	<1%FS (highest)	<1%FS (highest)
Lateral Vibration sensitivity ratio	1%	1%	2%	5%	5%	5%
Cross-axis Sensitivity	1% mA/g	1% mA/g	1% mA/g	2% mA/g	2% mA/g	2% mA/g
Resonance Frequency	2.4kHz	2.4kHz	2.4kHz	5.5kHz	5.5kHz	5.5kHz
Deviation Calibration	<1mg
Measuring Axis	X, Y, Z
Up/ off Power Repeatablity (mg) (highest)	<2
Deviation Temperature Coefficient	0.01%/°C (Typical value)
Resolution/ Threshold	<1@1Hz (mg) (highest)
Bandwidth	500 (3Db) (Hz)
Output Rate	5Hz, 10Hz, 25Hz, 50Hz, 100Hz, 200Hz, 500Hz, 1000Hz
Interface Type/ Interface Protocol	RS232/ Modbus-RTU
Reliability	MIL-HDBK-217, Grade 2
Shock Resistance	100g@11ms, Triaxial and Identical (Half Sine Wave)
Recovery Time	<1ms (1000g, 1/2 Sin 1ms, Shock Acting On The i Axis)
Vibration	20g Rms, 20-2000Hz (Random Noise, o, p, i Per Axis For Action 30 Minutes )
Input (Vdd_Vss)	9-36 VDC
Current Consumption	<60mA @ 12 VDC
Connector	Industrial standard M12 connector
Weight	73.5g
Dimension	34.334.338.5mm
Certificate	CE
Warranty	12 months

Dimension (unit: mm)

Details

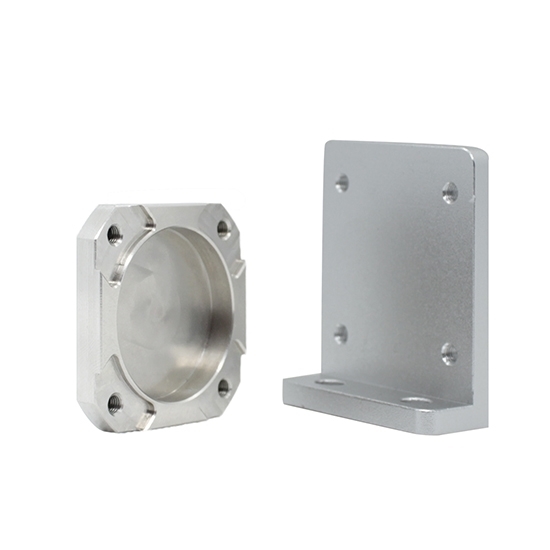

Dimension of Mounting Fittings (unit: mm)

Electrical Connection

Applications

Tips: What is Three Axis Accelerometer Sensor?

An acceleration sensor is a sensor that can measure acceleration. It is usually composed of masses, dampers, elastic components, sensitive components, and adaptive circuits. In the process of acceleration, the sensor obtains the acceleration value by using Newton's second law by measuring the inertial force on the mass block. According to the different sensitive components of the sensor, common acceleration sensors include capacitive, inductive, strain, piezoresistive, piezoelectric, etc.
