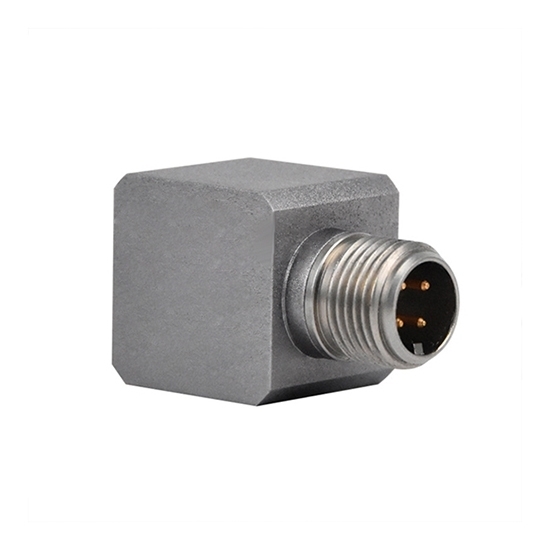

ICP/IEPE Accelerometer Sensor, 3 Axis, 10g/ 50g/ 100g

0 reviews • Write a review

from

$952.66

Ex Tax: $952.66

Stock: In Stock
Model: RDDLZ-AS-SAE051
Weight: 1.00
SKU: RDDLZ-AS-SAE051

Available Options

Installation Method

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The use of piezoelectric ceramics and aerospace aluminum alloy housings provide the ICP/IEPE 3-axis accelerometer sensors with excellent durability and anti-interference capabilities. High-performance triaxial accelerometer sensors for sale offer 10g, 50g, and 100g measuring ranges, suitable for use in a variety of vibration testing and acceleration measurement needs. Standard M5 threaded and magnetic mounting options provide flexible and convenient mounting, and the M12 aviation plug output connector ensures a reliable connection.

Specifications

Model	RDDLZ-SAE30001	RDDLZ-SAE30005	RDDLZ-SAE30010
Triaxial Voltage Sensitivity	500mV/g	100mV/g	50mV/g
Measuring Range	10g	50g	100g
Frequency Response	0.5~5000Hz
Mounting Resonance Frequency	10kHz
Linear	<1%
Lateral Sensitivity	≤3%
Maximum Measurable Acceleration	50g
Temperature Range	-20°C~+120°C

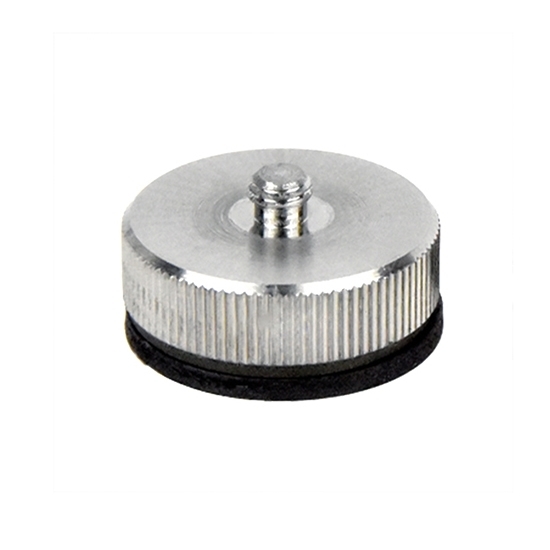

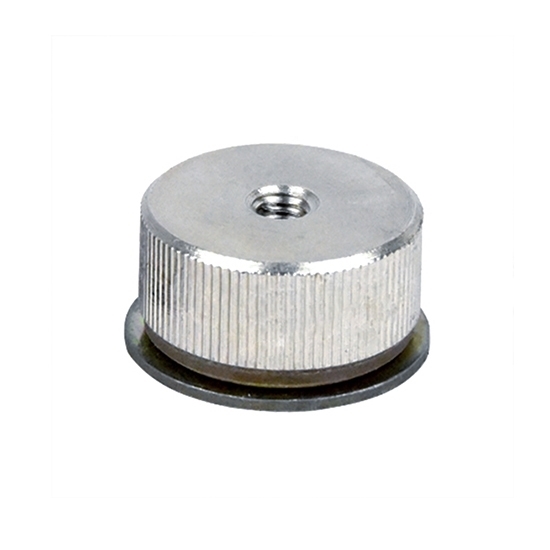

Mounting Thread	M5 thread (default); Magnetic chuck M5 male 120N/Magnetic chuck M5 female 120N (optional)
Mounting Torque	≈20-30Kgf.cm (M5 grain)
Piezo Material	PZT5 piezoelectric ceramic
Housing Material	Aviation aluminum alloy
Internal Structure	Plane shear

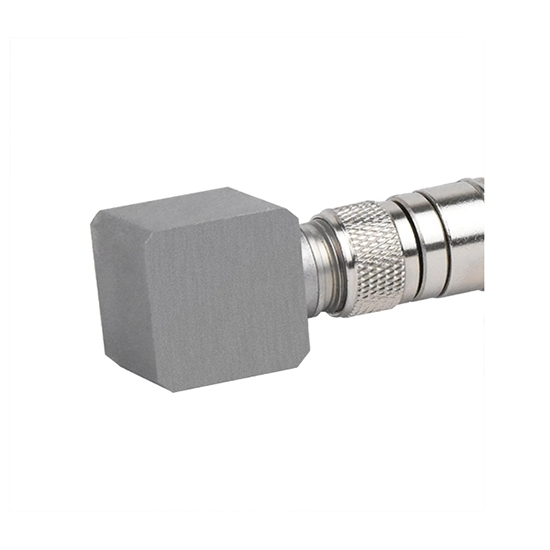

Output Method	M12 aviation plug
Matching Parts	Sensor certificate of conformity (calibration parameters, frequency response curve)

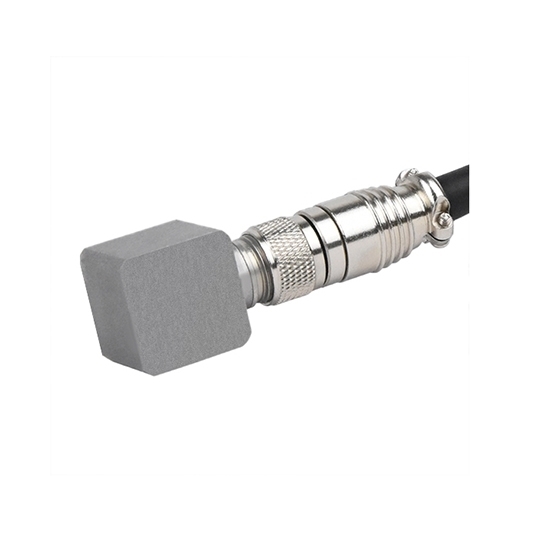

	Four-core STYV-2 cable (2m)
	M5 link bolt
	Product box
Dimension	Square 202018mm
Weight	27g

Features

A general-purpose IEPE accelerometer with high sensitivity and good cost performance.
This IEPE/ICP piezoelectric acceleration sensor has low noise and strong anti-interference.
Suitable for vibration/shock measurement in X, Y and Z directions.

Dimension (unit: mm)

Typical Frequency Response Curve

Temperature Curve

Application

Tips: What is an IEPE piezoelectric accelerometer sensor?

An IEPE (Integrated Electron Piezoelectric) piezoelectric accelerometer is a sensor that utilizes a piezoelectric crystal to measure acceleration. It uses integrated electronics to provide a constant current excitation to the piezoelectric element, which converts mechanical vibration into an electrical signal.IEPE sensors are used in a wide range of applications where high accuracy and reliable performance is required, such as machinery monitoring, automotive testing, and industrial vibration analysis.

IEPE piezoelectric accelerometers offer a number of advantages, including high sensitivity, wide frequency response and small size. The integrated electronics make it easier to integrate with measurement systems, eliminating the need for external signal conditioning. These sensors are also known for their durability and ability to operate in harsh environments, making them ideal for industrial and automotive applications!
