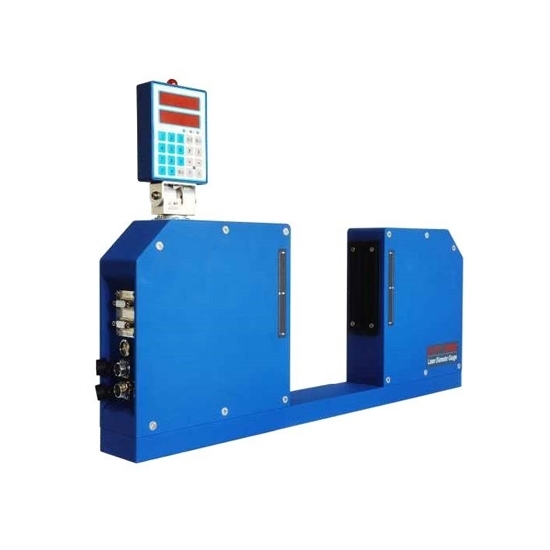

Laser Diameter Gauge, Single Axis, 1-100mm

0 reviews • Write a review

from

$5,979.39

Ex Tax: $5,979.39

Stock: In Stock
Model: RDDLZ-LDG-100A
Weight: 1.00
SKU: RDDLZ-LDG-100A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single axis laser diameter gauges are highly accurate and precise, often capable of measuring diameter sizes with micrometer-level tolerances. These laser measuring devices are widely utilized in various industries, including wire and cable manufacturing, metalworking, plastics extrusion, and textile production.

Features

Laser diameter gauge is a measurement of diameter value, with a multi-angle display of the operation panel.
This laser diameter measuring equipment adopts fully automatic closed-loop control technology and advanced DSP processing technology.
The measurement process is not affected by speed and vibration.
It comes with an over-tolerance alarm function.
It adopts high-quality stainless steel fasteners, an aluminum die-casting shell, a plastic spraying surface, and good corrosion resistance.
RS232/485/MODBUS protocol communication interface.

Specification

Model	RDDLZ-CJY-100A
Measuring Range	1-100mm
Measuring Accuracy	±10μm±0.008%Dz mm (Dz is the actual diameter of the measured object)
Resolution Ratio	0.001mm
Scanning Speed	1400 Times Scanning Cycle/Second
Power Supply	100~240V AC, 1A
Working Frequency	50/60Hz
Display Method	Two-Row 5-Digit Pipe Display
Light Source	Second Generation Visible Laser, Wavelength 650nm
Working Principle	Non-Contact Laser Scanning
Data Collection and Analysis	Support (Need to connect to an external computer and install related software)
Out-of-Tolerance Alarm Function	Dual relay contact output, upper and lower deviation signals are output separately (External sound and light alarm 24V DC and below)
Working Temperature	0~45℃
Relative Humidity	≤85%RH (No Condensation Water)
Other Environmental Requirements	The air does not contain corrosive gases, serious volatile oils, water vapor and dust.
Power Consumption	≤15W (with Adapter + 40W)
Communication Mode	Communication Method: Use RS485 interface, MODBUS RTU protocol/TCP protocol (Ethernet) to communicate with other devices
Protection Grade	IP65
Dimension	57564378mm (LWH)
Weight	7.5kg

Dimension (Unit: mm)

Tips: How to choose a suitable laser diameter gauge?

There are several key factors to consider when choosing a suitable laser diameter gauge:

Measuring range: Make sure the measuring range of the instrument covers your actual needs, including both the minimum and maximum diameters.
Measuring accuracy: Choose a laser diameter measuring instrument with suitable measuring accuracy based on the specific requirements of the application. High-precision measuring instruments are usually more expensive, but they are necessary in demanding applications.
Response speed: In dynamic measurements, the response speed is an important factor to ensure that the instrument can capture rapidly changing diameters in real time.
Environmental adaptability: Consider the adaptability of the instrument in different working environments, such as temperature, humidity, vibration, etc.
Data output and processing: Check the data output options and interfaces of the instrument to ensure that it is compatible with your data acquisition and processing system.
