Laser Diameter Gauge, Single Axis, 0.1-25mm

0 reviews • Write a review

from

$2,558.69

Ex Tax: $2,558.69

Stock: In Stock
Model: RDDLZ-LDG-25A
Weight: 1.00
SKU: RDDLZ-LDG-25A

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single axis laser diameter gauges have high accuracy and precision, often capable of measuring diameters down to micrometer-level tolerances. Laser diameter measuring devices are widely used in various industries such as wire and cable manufacturing, metalworking, plastics extrusion, and textile production.

Features

Laser diameter gauge is a measurement of diameter value, with a multi-angle display of the operation panel.
This laser diameter measuring equipment adopts fully automatic closed-loop control technology and advanced DSP processing technology.
The measurement process is not affected by speed and vibration.
It comes with an over-tolerance alarm function.
It adopts high-quality stainless steel fasteners, an aluminum die-casting shell, a plastic spraying surface, and good corrosion resistance.
RS232/485/MODBUS protocol communication interface.

Specification

Model	RDDLZ-CJY-25AR	RDDLZ-CJY-25A	RDDLZ-CJY-25AL
Measuring Range	0.1-25mm
Measuring Accuracy	±2μm±0.008%Dz mm (Dz is the actual diameter of the measured object)
Resolution Ratio	0.001mm
Scanning Speed	1400 Times Scanning Cycle/Second
Power Supply	100~240V AC, 1A
Working Frequency	50/60Hz
Display Method	Two-Row 5-Digit Pipe Display
Light Source	Second Generation Visible Laser, Wavelength 650nm
Working Principle	Non-Contact Laser Scanning
Data Collection and Analysis	Support (Need to connect to an external computer and install related software)
Out-of-Tolerance Alarm Function	Dual relay contact output, upper and lower deviation signals are output separately (External sound and light alarm 24V DC and below)
Working Temperature	0~45℃
Relative Humidity	≤85%RH (No Condensation Water)
Other Environmental Requirements	The air does not contain corrosive gases, serious volatile oils, water vapor and dust.
Power Consumption	≤15W (with Adapter + 40W)
Communication Mode	Communication Method: Use RS485 interface, MODBUS RTU protocol/TCP protocol (Ethernet) to communicate with other devices
Protection Grade	IP65
Dimension	31965250mm (LWH)	28066315mm (LWH)	412100135mm (LWH)
Weight	2.8kg	3.4kg	3.6kg

Dimension (Unit: mm)

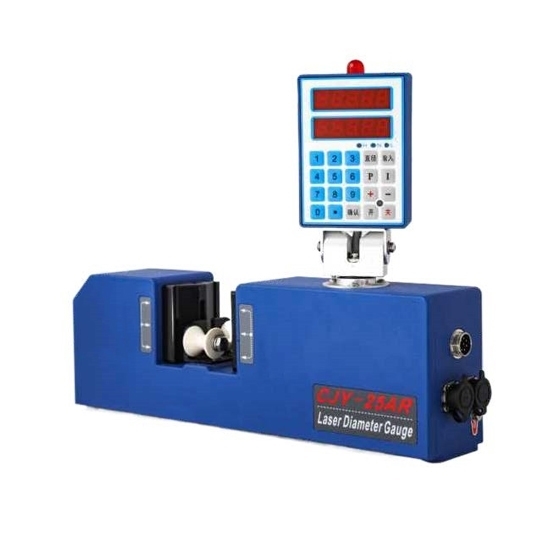

RDDLZ-CJY-25AR

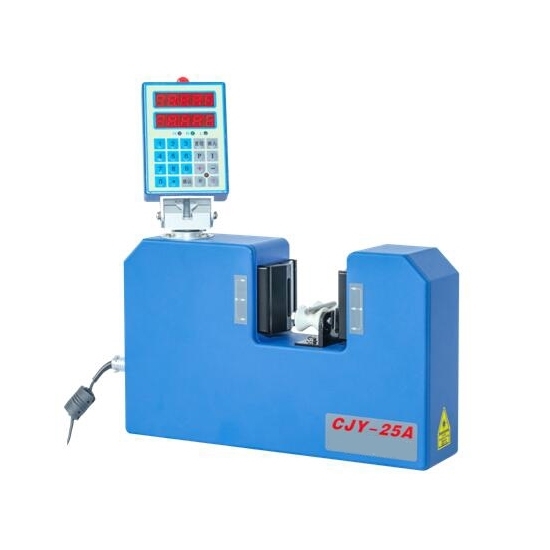

RDDLZ-CJY-25A

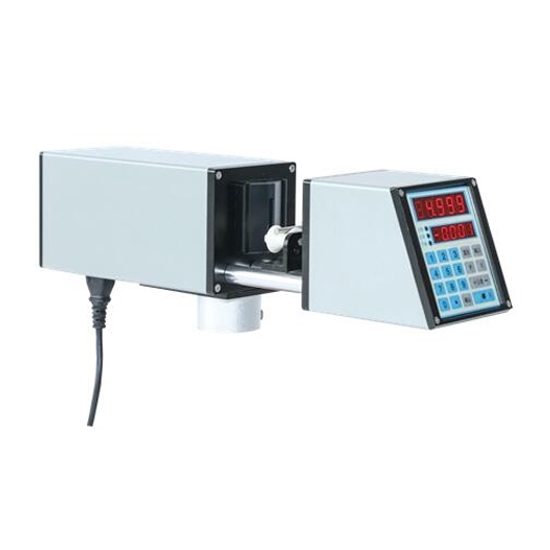

RDDLZ-CJY-25AL

Tips: What factors affect the measurement data of laser diameter gauges?

The measurement data of laser diameter measuring instruments are affected by many factors:

Laser beam quality: The divergence angle, spot shape, and beam mode of the beam will affect the accuracy of the measurement.
Environmental factors: Environmental conditions such as temperature, humidity, and air pressure will cause scattering and diffraction of the laser beam, thus affecting the measurement results.
Instrument calibration: The calibration status of the measuring instrument directly affects the measurement accuracy. Uncalibrated or inaccurately calibrated instruments will produce deviations.
Measuring distance: Laser diameter measurement usually relies on the expansion of the laser over a certain distance. Changes in the measuring distance will affect the results.
Detector sensitivity: The sensitivity and response time of the detector will affect the capture and processing of the signal, thereby affecting the measurement data.
Surface reflectivity: The reflectivity of the surface of the measured object affects the echo signal of the laser beam. Low reflectivity surfaces may cause signal weakening.
Power supply stability: Power supply fluctuations will affect the stability of the laser output, thereby affecting the measurement accuracy.

Taking these factors into consideration, the measurement accuracy and reliability of the laser diameter measuring gauge can be improved.
