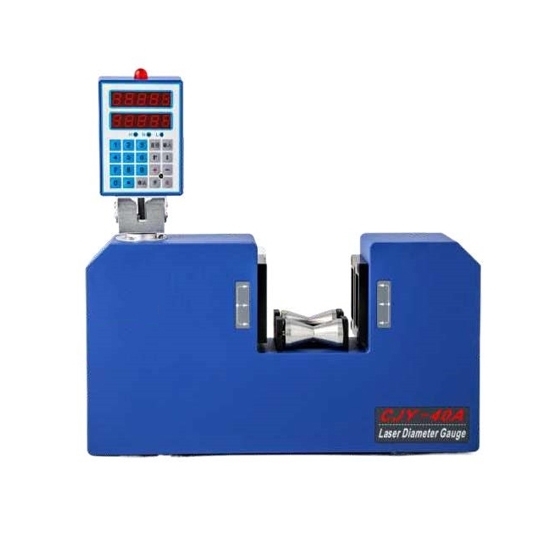

Laser Diameter Gauge, Single Axis, 0.1-40mm

0 reviews • Write a review

from

$3,025.39

Ex Tax: $3,025.39

Stock: In Stock
Model: RDDLZ-LDG-40A
Weight: 1.00
SKU: RDDLZ-LDG-40A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single axis laser diameter gauges are highly accurate and precise, often capable of measuring diameter sizes with micrometer-level tolerances. These laser measuring devices are widely utilized in various industries, including wire and cable manufacturing, metalworking, plastics extrusion, and textile production.

Features

Laser diameter gauge is a measurement of diameter value, with a multi-angle display of the operation panel.
This laser diameter measuring equipment adopts fully automatic closed-loop control technology and advanced DSP processing technology.
The measurement process is not affected by speed and vibration.
It comes with an over-tolerance alarm function.
It adopts high-quality stainless steel fasteners, an aluminum die-casting shell, a plastic spraying surface, and good corrosion resistance.
RS232/485/MODBUS protocol communication interface.

Specification

Model	RDDLZ-CJY-40A
Measuring Range	0.1-40mm
Measuring Accuracy	±2μm±0.008%Dz mm (Dz is the actual diameter of the measured object)
Resolution Ratio	0.001mm
Scanning Speed	1400 Times Scanning Cycle/Second
Power Supply	100~240V AC, 1A
Working Frequency	50/60Hz
Display Method	Two-Row 5-Digit Pipe Display
Light Source	Second Generation Visible Laser, Wavelength 650nm
Working Principle	Non-Contact Laser Scanning
Data Collection and Analysis	Support (Need to connect to an external computer and install related software)
Out-of-Tolerance Alarm Function	Dual relay contact output, upper and lower deviation signals are output separately (External sound and light alarm 24V DC and below)
Working Temperature	0~45℃
Relative Humidity	≤85%RH (No Condensation Water)
Other Environmental Requirements	The air does not contain corrosive gases, serious volatile oils, water vapor and dust.
Power Consumption	≤15W (with Adapter + 40W)
Communication Mode	Communication Method: Use RS485 interface, MODBUS RTU protocol/TCP protocol (Ethernet) to communicate with other devices
Protection Grade	IP65
Dimension	33276325mm (LWH)
Weight	4.4kg

Dimension (Unit: mm)

Tips: Can laser diameter measuring gauges measure moving objects?

Laser diameter gauges have certain technical challenges when measuring moving objects, but they are feasible under certain conditions. Such instruments usually use a laser beam to scan the object and calculate the diameter of the object by the received reflected light signal or by the time the beam is blocked. For moving objects, the key lies in the response speed and data processing capabilities of the laser measuring instrument.

If the object moves slowly and the trajectory is stable, modern high-precision laser diameter gauges can quickly capture data and perform real-time calculations to accurately measure the diameter of the object. For high-speed moving objects, high-frequency laser pulses and high-speed data acquisition systems are required to ensure multiple sampling in a very short time to obtain accurate measurement results. In addition, the combination of high-speed camera technology and image processing algorithms can also improve the measurement accuracy of fast-moving objects.
