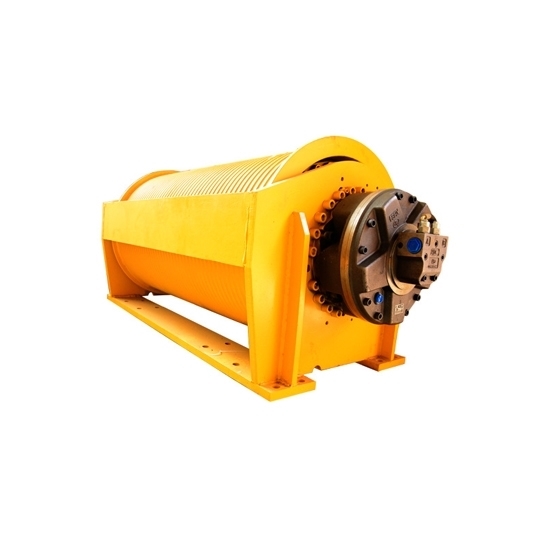

20000 Lbs Hydraulic Winch

20000 Lbs Hydraulic Winch
Free Shipping
20000 Lbs Hydraulic Winch
0 reviews • Write a review
from
$9,675.39
Ex Tax: $9,675.39
  • Stock: In Stock
  • Model: RDDLZ-HWINCH-20000
  • Weight: 1.00
  • SKU: RDDLZ-HWINCH-20000

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic winch is a device that uses hydraulic power to reel in or let out a cable or rope. It is commonly used in heavy-duty applications such as towing, construction, and off-road vehicles. The hydraulic system provides the necessary force and control for efficient pulling and lifting operations.

Specification

ModelRDDLZ-HW150-100
The 1st LayerPull20000 lbs (10 ton)
Rope Speed0~30 m/min
Working Pressure Differential16 Mpa
Oil Flow Supply240 L/min
Rope Diameter28mm
Hydraulic MotorBMR-500
Planetary Reduction Ratio1:24
LayerWire Rope Capacity
133m
270m
3110m
4150m

Note*:

  1. Never exceed working load limit.
  2. This hydraulic winch does not include wire rope.
  3. If you want to purchase wire rope, please contact us.

Dimensions (Unit: mm)

Tips: Hydraulic winch for excavator

A hydraulic winch is a specialized device used for excavators in various applications. It is designed to provide powerful pulling and lifting capabilities to aid in heavy-duty operations. The winch utilizes hydraulic power to generate force and control the movement of the cable or rope. It is typically mounted on the excavator's boom or chassis and can be operated remotely from the operator's station. The winch enables the excavator to perform tasks such as dragging heavy loads, lifting and positioning objects, and even assisting in self-recovery in challenging terrain. Its robust construction and hydraulic functionality make it an indispensable tool for excavation projects requiring enhanced pulling and lifting capabilities.
