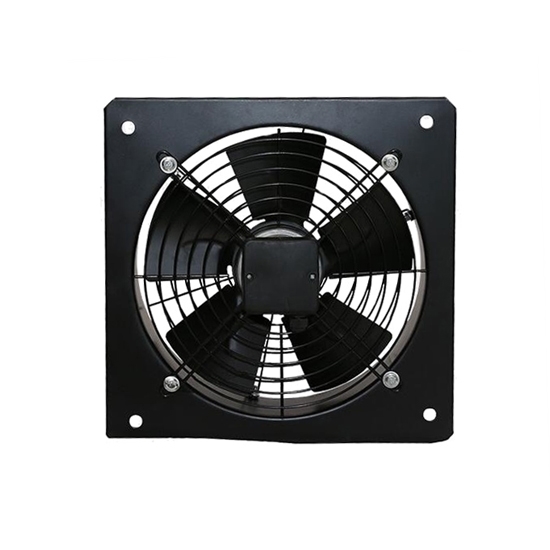

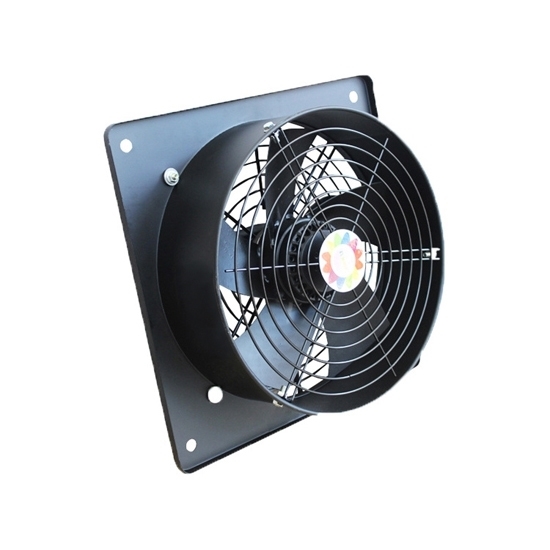

Square Plate Mounted Axial Fan, 8/10/12/16/20/24 Inch

0 reviews • Write a review

from

$173.59

Ex Tax: $173.59

Stock: In Stock
Model: RDDLZ-PMAF-FZW
Weight: 1.00
SKU: RDDLZ-PMAF-FZW

Available Options

Short Description

Rated Voltage

Impeller Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Square plate mounted axial fan is used for efficient air movement in industrial and commercial applications. This axial flow fan comes with 8/10/12/16/20/24 inch axial impeller mounted on a plate for ventilation, cooling, and air circulation.

Specification

Model	RDDLZ-FZW-4E/D200	RDDLZ-FZW-4E/D250	RDDLZ-FZW-4E/D300	RDDLZ-FZW-4E/D350	RDDLZ-FZW-4E/D400	RDDLZ-FZW-4E/D500	RDDLZ-FZW-4E/D600
Impeller Diameter	8 inch (200mm)	10 inch (250mm)	12 inch (300mm)	14 inch (350mm)	16 inch (400mm)	20 inch (500mm)	24 inch (600mm)
Rated Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Pole	4 Pole
Current	0.20A	0.22A	3.33A/0.23A	0.7A/0.42A	0.80A/0.51A	1.78A/0.85A	3.20A/1.62A
Input Power	40W	50W	70W/80W	150W/145W	185W/180W	340W/310W	700W/820W
Rated Speed	1450rpm	1400rpm	1350rpm/1400rpm	1360rpm	1360rpm	1390rpm/1395rpm	1310rpm/1350rpm
Air Volume	510m³/h	1300m³/h	2200m³/h	2950m³/h/3100m³/h	4350m³/h/4450m³/h	7100m³/h/7200m³/h	10600m³/h/12600m³/h
Total Pressure	70Pa	80Pa	160Pa	130Pa	140Pa	140Pa/160Pa	270Pa/260Pa
Noise	53db(A)	553db(A)	613db(A)	653db(A)	683db(A)	753db(A)	783db(A)
Environment Temperature	-40℃~+55℃
Altitude	55Kpa (2500m)
Relative Humidity	90%~95%RH

Dimension (Unit: mm)

Model	A	B	C	D	E	G	H
RDDLZ-FZW-4E/D200	218	275	100	210	225	150	45
RDDLZ-FZW-4E/D250	274	325	102	260	275	155	45
RDDLZ-FZW-4E/D300	325	375	107	315	330	160	40
RDDLZ-FZW-4E/D350	370	425	132	365	378	190	50
RDDLZ-FZW-4E/D400	428	480	140	415	430	195	50
RDDLZ-FZW-4E/D500	525	590	157	515	530	215	50
RDDLZ-FZW-4E/D600	620	686	183	625	640	235	50

Tips: Square plate mounted axial fan applications

Plate mounted axial fans are widely used in various industrial and commercial applications for their efficiency in moving large volumes of air at low pressures. These fans are typically installed in walls, ceilings, or ducts and are designed to provide ventilation, cooling, and air circulation in different environments.

In industrial settings, they are used to remove heat, fumes, and airborne contaminants from manufacturing areas, ensuring a safe and comfortable working environment. In commercial buildings, plate-mounted axial fans are employed in HVAC systems to maintain indoor air quality and regulate temperature. Additionally, they find applications in agriculture for ventilating barns and greenhouses, preventing the buildup of harmful gases and ensuring the health of plants and animals.

Their robust construction, ease of installation, and ability to handle high airflow rates make plate-mounted axial fans a versatile solution for various ventilation needs.
