Single Mode Fiber Converter

0 reviews • Write a review

from

$352.38

Ex Tax: $352.38

Stock: In Stock
Model: RDDLZ-UT-2577SM
Weight: 1.00
SKU: RDDLZ-UT-2577SM

Available Options

Interface Mode

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

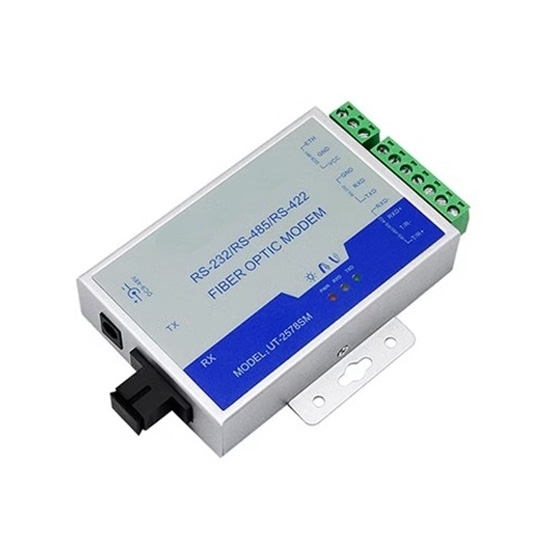

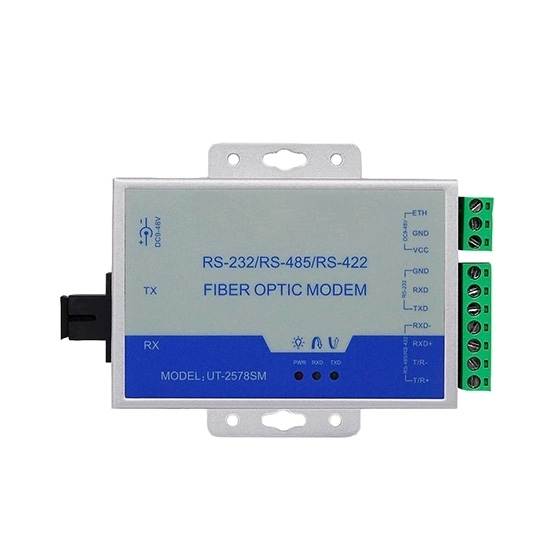

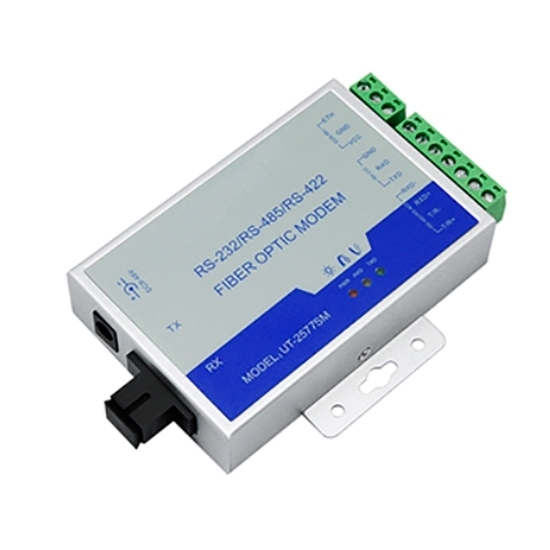

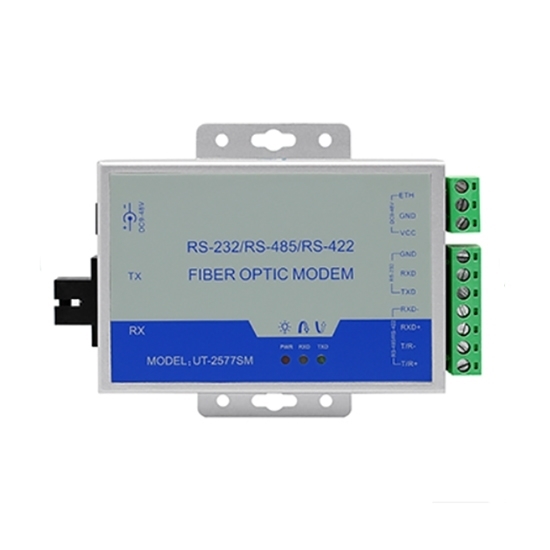

Good price RS232/ RS485/ RS422 to fiber converter single mode with interface of optional SC, FC, ST, with the transmission rate 460 kbps, single mode fiber converter supports RS-232, RS-485/422 working at the same time.

Specification

Model	RDDLZ-UT-2577SM/ RDDLZ-UT-2578SM (UT-2577SM and UT-2578SM models must be used in pairs)
Port	RS232/ RS485/ RS422 ports
Asynchronous transmission	Point to point, 460Kbps
Transmission distance	20000/ 40000m single mode
Operating temperature	-40-85℃
Relative humidity	5%~95%
Operating wavelength	1310/ 1550nm (single mode)
Interface	RS-232/ RS485/ RS422: Terminal block; fiber port: with optional SC/ FC/ ST
Input voltage	DC9-48V, 200mA
RS-232	Standard RS232 3-pin terminal block, with ±15kV ESD protection, max. transmission rate can be 115.2kbps transmission rate
RS-485/ 422	±15kV ESD protection, provides 600W surge protection to each bit
Certificate	CE
Warranty	12 months

Note: This product includes two models, UT-2577SM and UT-2578SM, which need to be paired for use.

Dimension (inch/ mm)

Details

Tips: Features of Fiber Converter.

Generally, the longest distance of multi-mode fiber converter is 4km; single-mode is 40km.
Single-mode and multi-mode can also be converted mutually to realize the networking function of multi-machine communication and relay conversion.
1. Optical fiber interface adopts dual SC (FIBER-TX, FIBER-RX) interface.
2. The physical interface of the serial port is in the form of 12-hole binding posts.
3. The serial port provides RS232, RS422 and RS485 three interfaces at the same time, which has a wider range of applications.
4. RS-485 adopts advanced automatic flow control technology, which can automatically identify signal flow direction.
5. The serial port end is adaptive to RS232, RS422 and RS485 interfaces, no external working mode selection switch, simpler and more convenient to use.
