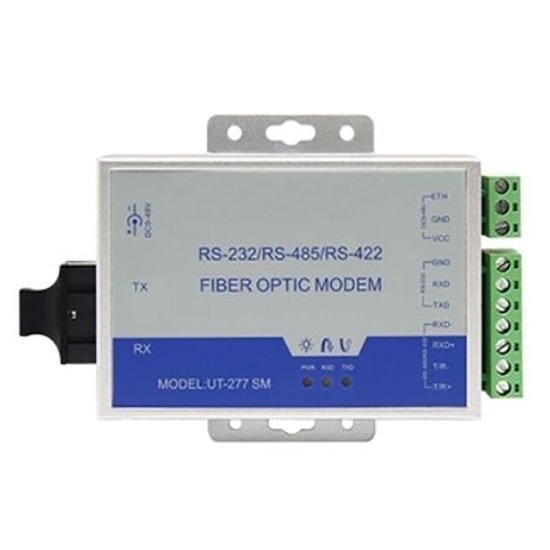

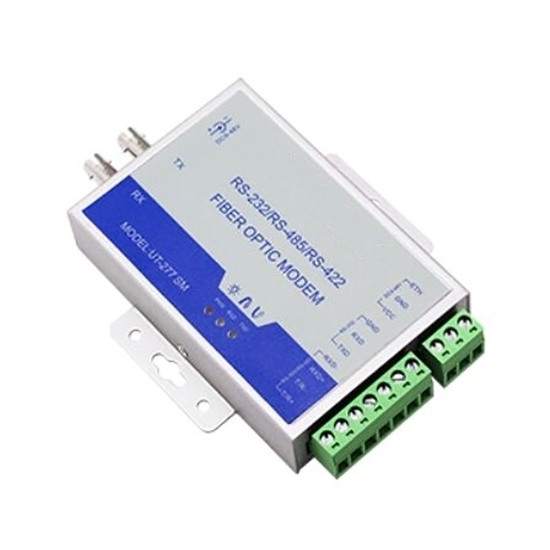

RS232/ 485/ 422 To Fiber Converter, 2PCS

0 reviews • Write a review

from

$299.21

Ex Tax: $299.21

Stock: In Stock
Model: RDDLZ-UT-277SM
Weight: 1.00
SKU: RDDLZ-UT-277SM

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 2-piece RS232/ 485/ 422 to fiber converter with the fastest transmission rate for RS-232 can be 115.2 kbps, and for RS-485/422 can be 460 kbps, the communication distance can be as far as 4km at multimode, and 20km at single mode.

Specification

Model	RDDLZ-UT-277SM
Asynchronous transmission	Point to point, 460 kbps
Input voltage	DC9-48V, 200mA
Port	RS232/ RS485/ RS422 ports
Wavelength	1310 nm (muti mode), 1310/ 1550 nm (single mode)
Interface	RS-232/ RS485/ RS422: Terminal block; fiber port: with optional SC/ FC/ ST
RS-232	Standard RS-232 3 wire ±15kV ESD protection, as high as 115.2 kbps transmission rate
RS-485/ 422	Auto negotiation, no need switch setting, ±15kV ESD protection
Certificate	CE
Warranty	12 months

Note: The package includes two UT-277SM fiber converters, which need to be paired for use.

Dimension (inch/ mm)

Details

Applications

Tips: What is Fiber Converter?

RS232/ 485/ 422 optical fiber converter realizes one RS232 or RS485 or RS422 through single-mode optical fiber for long-distance transmission. This product has the characteristics of RS485/ 422 interface supporting multi-machine communication and convenient networking. At the same time, due to the use of optical fiber as the transmission medium, it has the advantages of high isolation voltage, anti-electromagnetic interference, and anti-lightning strike.
232/ 485 optical fiber converter is widely used in various industrial control, distributed data acquisition and other occasions, especially suitable for power system automation, traffic control and other departments.
