Split Core Current Transformer, 500/5A

0 reviews • Write a review

from

$32.89

Ex Tax: $32.89

Stock: In Stock
Model: RDDLZ-SCT-CTKD-500
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

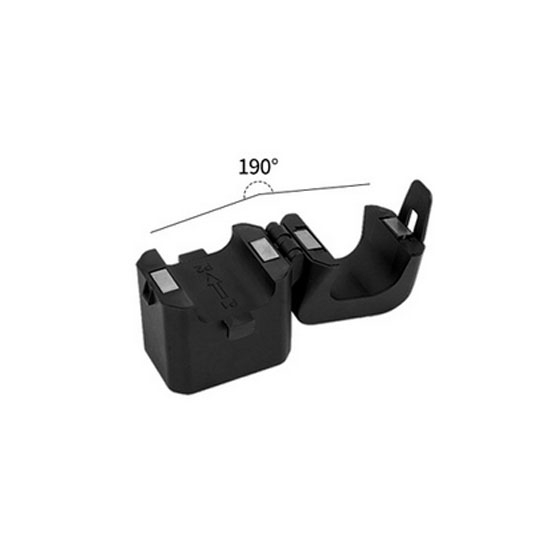

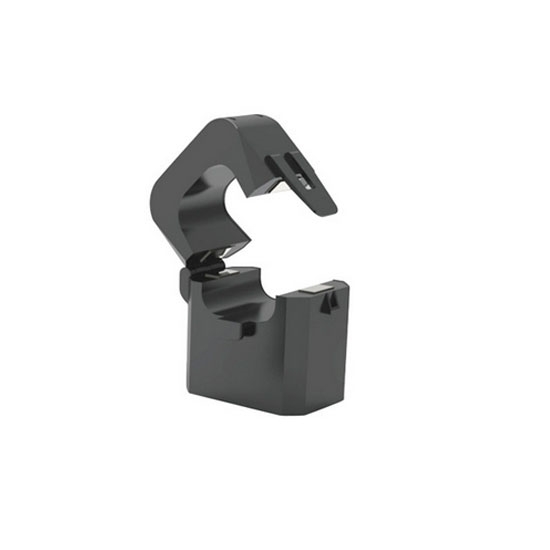

A compact split core current transformer with a current ratio of 500/5A, safe enclosure, high flame retardant protection, can be easily installed on existing power lines without disconnecting lines or interrupting service.

Specification

Model: RDDLZ-SCT-CTKD36-500
Current Ratio: 500/5A
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

500A Split Core Current Transformer Dimension

φ	A	B	C
36	60	89	43

Tips: What is the rated capacity of split core current transformer?

Rated capacity: The apparent power consumed by the rated secondary current through the secondary rated load. The rated capacity can be expressed in terms of apparent power V.A, or in terms of secondary rated load impedance Ω.
