300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s

0 reviews • Write a review

from

$2,571.75

Ex Tax: $2,571.75

Stock: In Stock
Model: RDDLZ-SCOPE-300M2
Weight: 1.00
SKU: RDDLZ-SCOPE-300M2

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

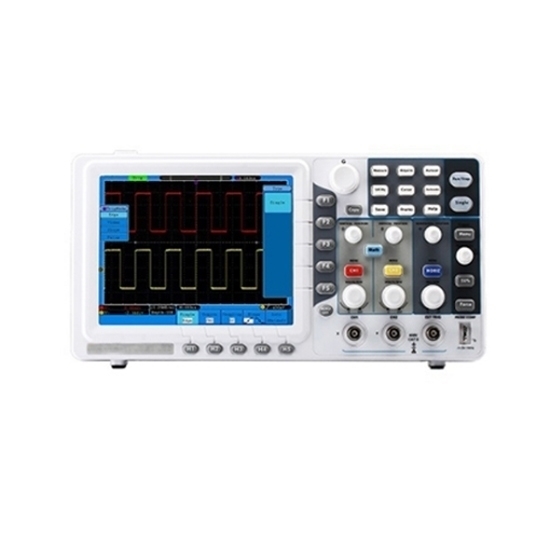

This compact digital oscilloscope with 300 MHz bandwidth, 2.5 GSa/s sampling rate, 8 inches color LCD screen, bright color, and high contrast. Digital storage oscilloscope can be used to observe and compare single-shot processes and non-periodic phenomena, low-frequency, and slow signals, and signals observed at different times and places.

Specification

Model	RDDLZ-EDS-302C
Bandwidth	300 MHz
Channel	2+ external trigger
Sample rate	2.5 GSa/s
Acquisition model	Sample, Peak detect
Record length	10M
Display	8 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	1ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤5.8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34015570mm
Weight	1.8kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Dimension

Details

Tips: What are the applications of digital oscilloscopes?

Oscilloscopes are used in the sciences, medicine, engineering, automotive and telecommunications industry. General-purpose instruments are used for the maintenance of electronic equipment and laboratory work.
