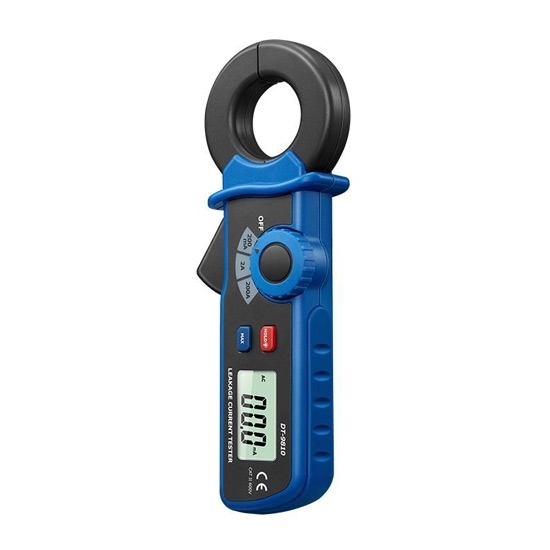

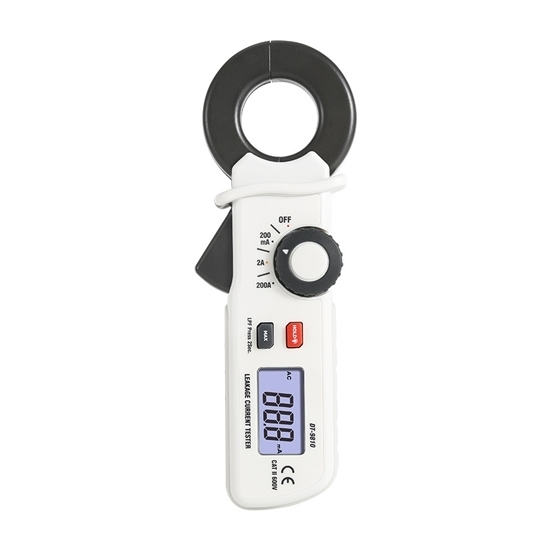

Leakage Current Clamp Meter With Measuring Range AC 200mA/2A/200A

0 reviews • Write a review

from

$186.98

Ex Tax: $186.98

Stock: In Stock
Model: RDDLZ-CLAM-DT-9810
Weight: 1.00
SKU: RDDLZ-CLAM-DT-9810

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Leakage current clamp meter has leakage current measuring range AC 0-200mA/0-2A/0-200A, data hold/automatic power off/overload protection/backlight functions, maximum jaw opening size 1.2" (30mm), 4 digit display and maximum value 1999.

Specification:

Basics	Model	RDDLZ-DT-9810
	Weight	225g
	Size (LWH)	1826134mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 3V, 2 AAA batteries
	Maximum jaw opening size	1.2" (30mm)
	Woring environment	Temperature: 0℃~30℃ (32℉~86℉), relative humidity:＜90%, altitude: ＜3000m
	Storage environment	Temperature: -25℃~60℃ (-14℉~140℉), relative humidity:＜90%
	Display rate	2 times/s
	Safety standard	EN61010-1, EN61010-2-032, CAT II 600V
	Protection class	IP54
	Accessories	User manual, 2 AAA batteries
Functions	Item	Range	Resolution	Accuracy
	Leakage current	AC 200mA	0.1mA	±(5.0%+8 digits)
		AC 2A	1mA	±(5.0%+8 digits)
		AC 200A	100mA	±(2.5%+10 digits)
Special functions	Data hold	Automatically hold the reading and peak value when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Manual range selection
	Backlight	Backlight for LCD display

Leakage current clamp meter measuring method:

Details

Tips: How to measure circuit leakage current with a current clamp meter?
The supply current and the return current generate a relative magnetic field. The currents should be equal (and opposite) and the opposing magnetic fields should cancel each other out. If there is no cancellation, it means that some current (called leakage current) is returning from the other path, and the only other path is the ground loop.There are many reasons cause for leakage current, one is the load and the nature of the circuit itself, one is the wrong wiring, and the third is the poor insulation.
Place the live wire and neutral wire in the jaws of the leakage current clamp meter as shown in the figure above. If any current can be measured, that is the leakage current, which is returning to the ground loop.
