3/4" Electric Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$346.39

Ex Tax: $346.39

Stock: In Stock
Model: RDDLZ-EBV-20B
Weight: 1.00
SKU: RDDLZ-EBV-20B

Available Options

Power Supply

Port

Flow Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Lightweight 3/4 inch electric actuated ball valve comes with stainless steel or PVC body material, which is widely used for controlling water, gas, oxygen and other air and fluid in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	RDDLZ-EBV-20B
	Port Size	3/4 inch (DN20, 20mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	RDDLZ-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Body Dimension (Unit: mm)

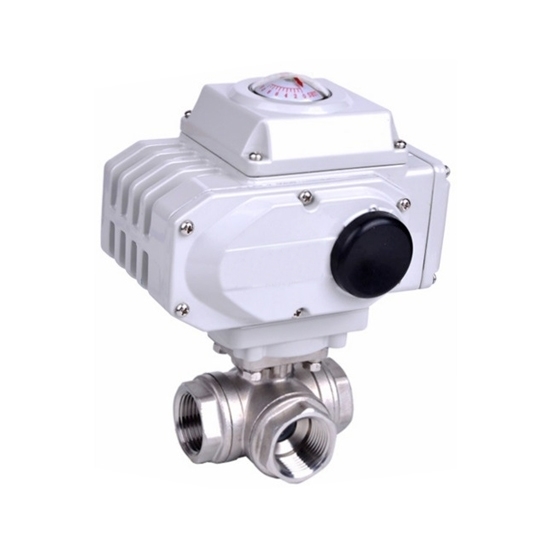

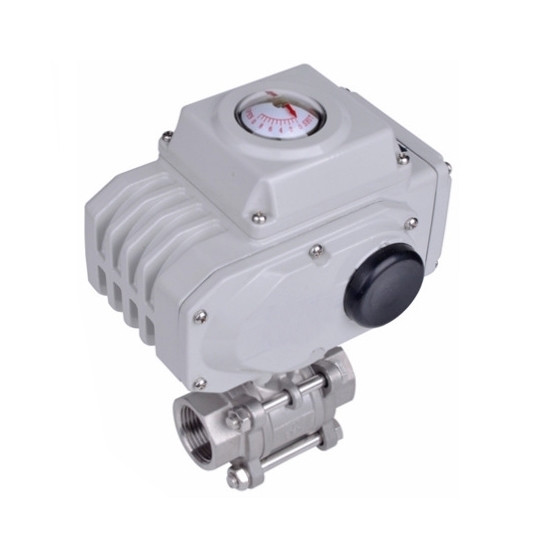

2 way/ 3 way, stainless steel, threaded type

φd	L1	A1	A2	H1	L2	H2
20	79	160	160	170	78	154

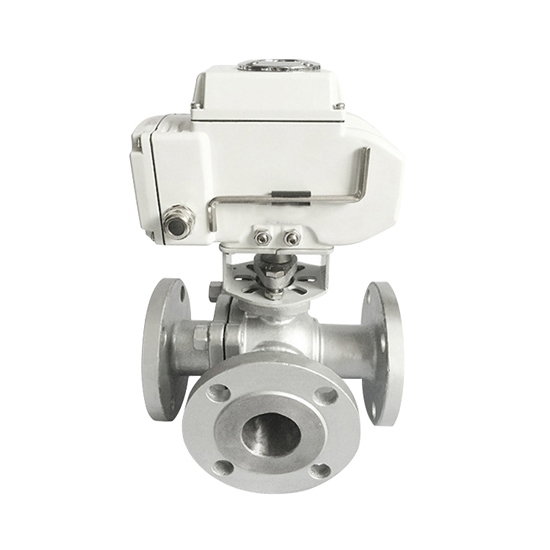

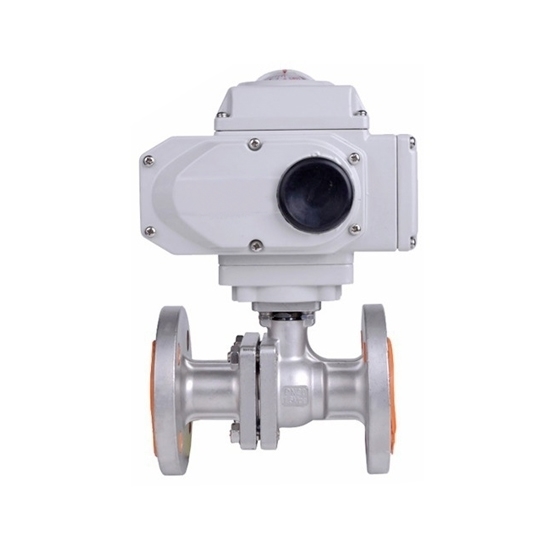

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
20	140	15	2	105	54	75	185	185	160	160	160	4-φ14

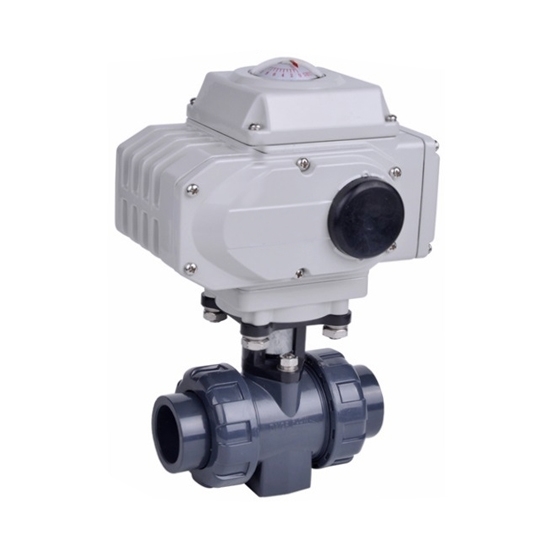

2 way, PVC true union type

DN	D	D1	d	L1	A	H
20	25	37	18	17	160	208

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips for using an electric actuated ball valve

The ambient temperature should be controlled within -25℃-70℃.
Explosion-proof electric actuated ball valve should be selected in several situations, such as unstable current, environmental corrosion, flammable and explosive occasions, special media, and no maintenance for a long time.
Electric actuated ball valve should not be disassembled by itself when a fault occurs to prevent accidents.
Do not knock the electric actuated ball valves or put them together under any circumstances.
