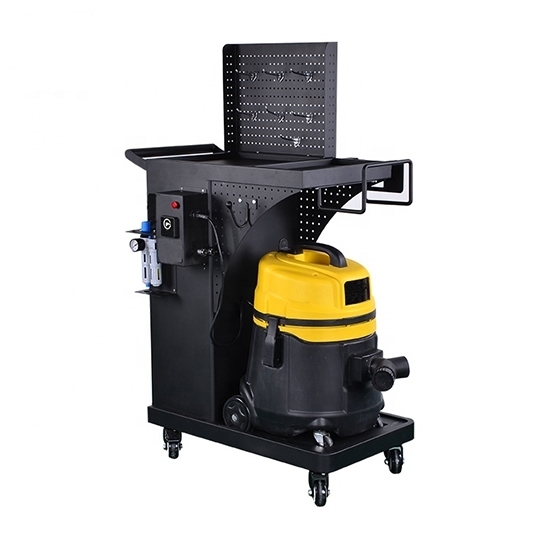

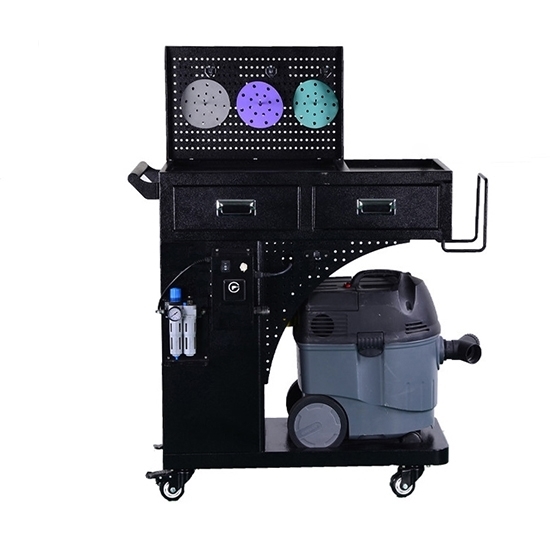

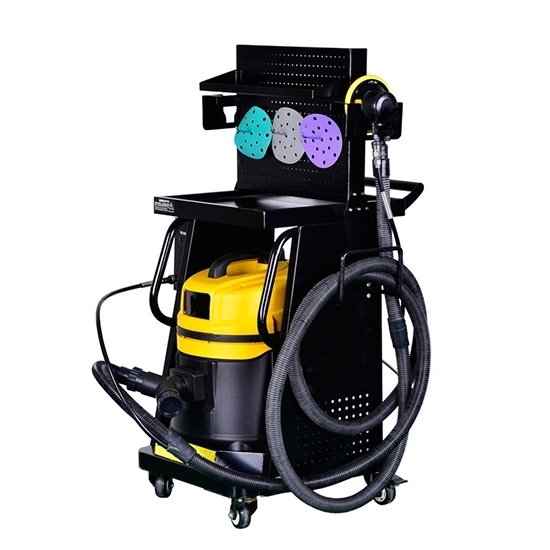

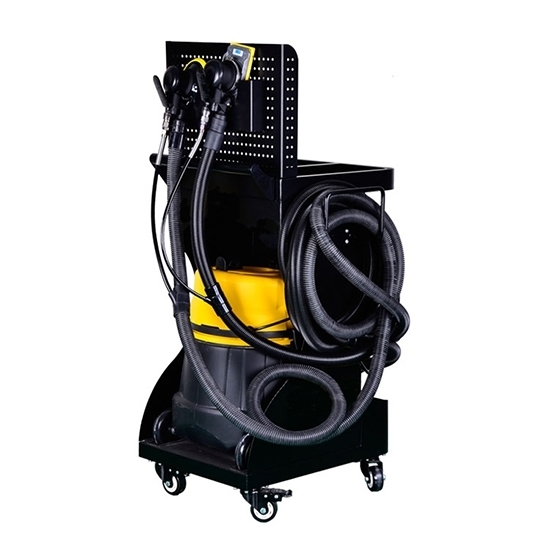

Air Sander Tool Cart With Dust Collector/Servo

0 reviews • Write a review

from

$3,299.89

Ex Tax: $3,299.89

Stock: In Stock
Model: RDDLZ-ASTC-98
Weight: 1.00
SKU: RDDLZ-ASTC-98

Available Options

Number of Round Sander

Number of Square Sander

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The pneumatic sander dry sanding system is an ideal product for sanding, grinding, and polishing processes in the automotive, furniture, steel processing, wood and other industries.

Specification

Model	RDDLZ-ASTC-98

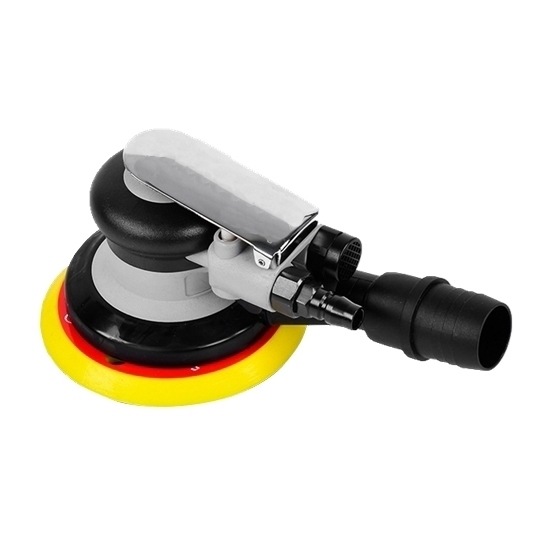

Air Sander Specification
Size	6 inch
Voltage	220-240V/60Hz
Air Consumption	480L/min
Working Pressure	6.0kg/cm³
Noise Level	60dBa
Rated Power	240W
No-Load Speed	12000rpm
Eccentricity	5mm
Tray Size	6", 5/16
Other Specification
Power Consumption	1200 W±10%
Negative Pressure	2100mm/H²
Dust Collector Capacity	36L
Certification	CE
Air Volume	2.5m³/min

Air Sander Tool Cart Features

Air Sander	Tool Cart

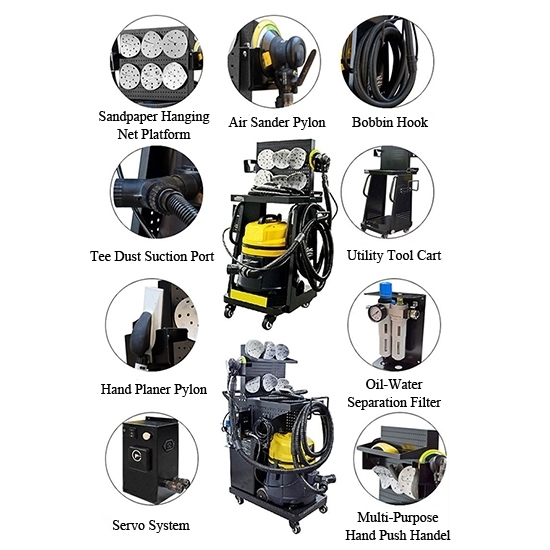

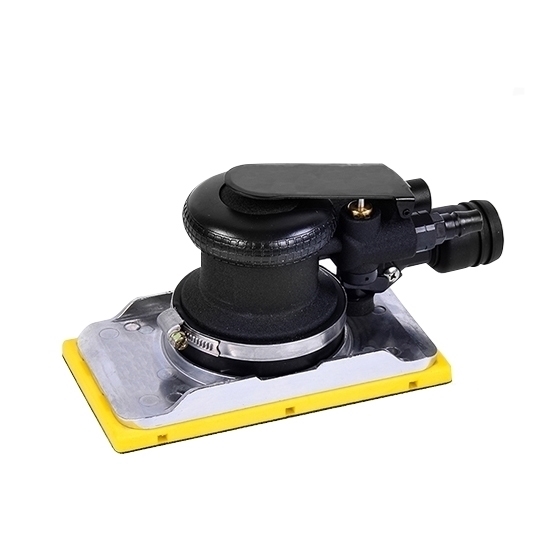

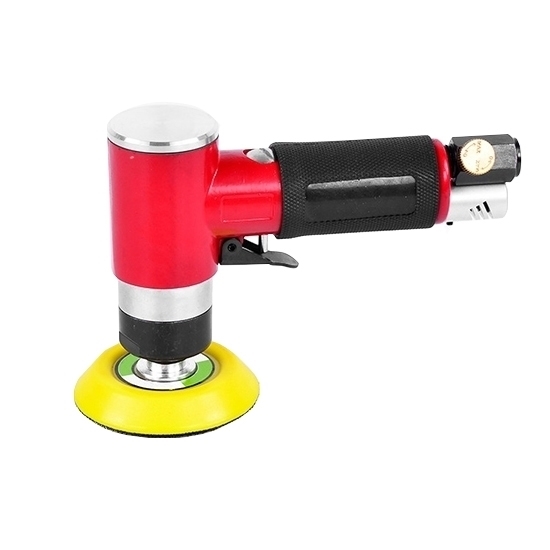

Different models are equipped with different round or square sanders, have various sanding methods such as sanding. Push-button switches and speed switches, suitable for fast and efficient sanding and grinding. It is used in car waxing, metal polishing, surface rust removal, drywall sanding, floor sanding, etc.	Consists of sandpaper pylon, hand template platform, power cord pylon, dust pipe pylon, and sander pylon. Reasonable space design, integrated storage, perfect storage of various parts and power cords to avoid missing parts.
Servo System	Dust Collector
External servo system, induction circuit board is separated from dust collector, which is not affected by heat dissipation of the dust bucket, eliminating the circuit board failure due to heat. Precise circuit control layout provides safety protection.	With five-layer filtering structure, can effectively filter and suppress dust. Has two working modes of manual and automatic. Dust collector automatically activates and work, automatically vacuuming and improve efficiency.

Air Sander Structure Diagram

Dust Collector Structure Diagram

Air Sander Tool Cart Installation

As shown in following diagram, installation of the air sander tool cart is very simple. Connect the water-oil separation filter to air inlet of air compressor. Connect one end of suction pipe to tee joint of the dust collector, and connect the other end to the air sander. Attach sandpaper to air sander and then can perform sanding operation.

Tips: Selection for air sander with dust collector.

At present market, there are mainly three types of dust collection and vacuuming systems for air sander: no dust collection system, built-in dust collector, and central vacuuming system. For the three dust collection modes, users should choose based on actual needs. If there is relatively good ventilation system on operation site, or there is not much dust during sanding, you can select an air sander without dust collector system. However, based on being responsible for the user’s health and for improving sanding efficiency, users are better off using air sanders with dust collector system. As for whether it equipped with vacuuming bag or central dust collection system, there is not much difference in the vacuuming effect, and users can choose freely.

If users select an air sander with dust collector system, then the sanding disc pad should also select a tray with holes. In the case of relatively large dust during sanding process, such as woodworking plain board grinding, artificial marble sanding and polishing, aluminum profile sanding, etc., a reasonable dust collection method and a reasonable sanding disc pad should be used to improve sanding efficiency.
