500 Lb. 20 Ft. Air Chain Hoist

0 reviews • Write a review

from

$3,167.99

Ex Tax: $3,167.99

Stock: In Stock
Model: RDDLZ-ACH-50020
Weight: 1.00
SKU: RDDLZ-ACH-50020

Available Options

Short Description

Metal Chain Container

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

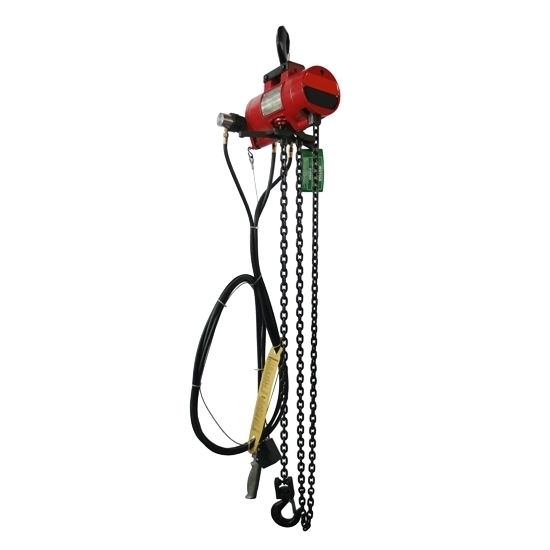

Compact 1/4 ton. cap. 20 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

Specification

Air Chain Hoist	Model	RDDLZ-29HX90
	Capacity	500 lb. (0.25 ton)
	Lift	20 ft.
	Lift Speed	0 to 65 fpm
	Min Between Hooks	15 1/4 in.
	Reeving	1
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	46 lbs (21 kg)

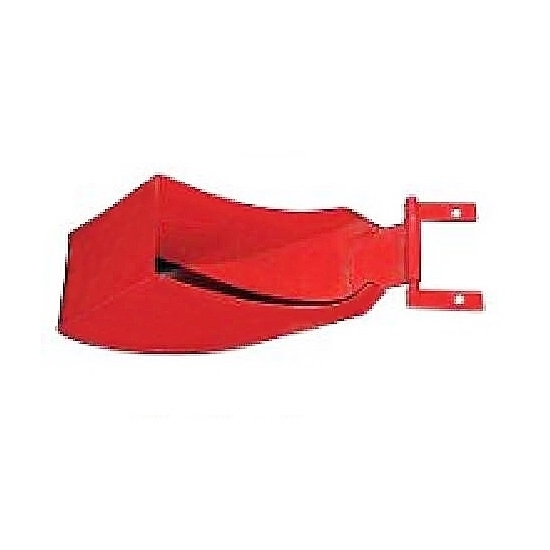

Metal Chain Container	Model	RDDLZ-29HX91
	Chain Lift	Single 20 ft.
	Width	4.5 in.
	Height	12 in.

Dimensions (Unit: mm)

Tips: Why choose RDDLZ air chain hoist?

Air chain hoist is a kind of lifting equipment that uses compressed air as the working medium and converts the pressure energy of the compressed air into mechanical energy to lift the goods. It is mainly composed of five parts: the air motor part, the deceleration mechanism, the air circuit control, the braking mechanism and the lifting mechanism. Widely used in petroleum, chemical, coal mine, textile, warehousing, household appliance production line, automobile manufacturing production line and ship repair and other industries, it is an essential and important equipment for enterprises to produce safely, improve efficiency and reduce costs. Compared with electric chain hoists, pneumatic hoists have the following advantages:

There is no spark, which completely solves the explosion-proof problem of lifting equipment.
It can work in high a temperature, high dust and strong corrosive working environment.
Small size, light weight, easy to install and use.
Continuous high-frequency operation can be realized.
The lifting speed can realize stepless speed change.
Good self-locking performance, safe and reliable.

Compressed air is easy to obtain, and the medium is clean, easy to maintain, and has self-protection properties. In military, textile, chemical and other special industries with flammable, explosive and corrosive media, pneumatic hoists have replaced electric hoists, and their application fields are still expanding. The development of foreign pneumatic hoists is very fast. The pneumatic hoist developed in the United States can lift as small as ton, as large as ton, and the lifting height can reach meters, and the lifting speed is about 100%. Foreign pneumatic hoists first used parallel shaft external gear transmission, and now most of them use planetary transmission.
