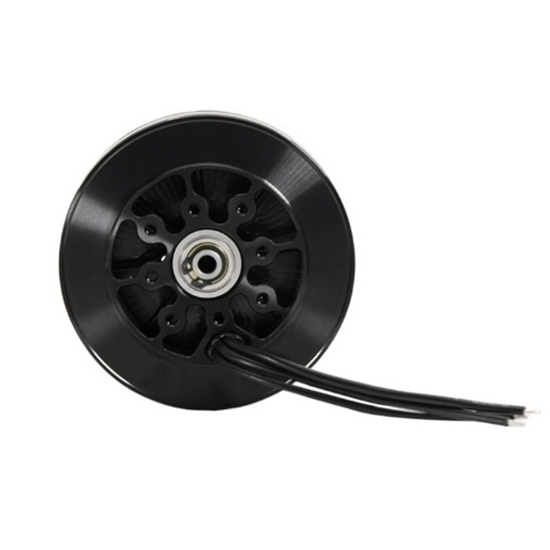

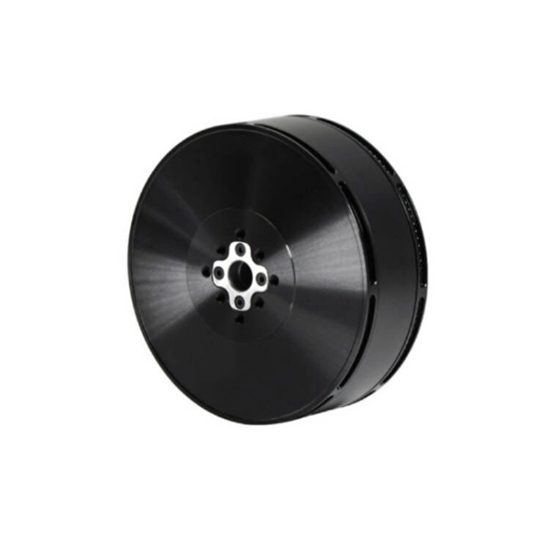

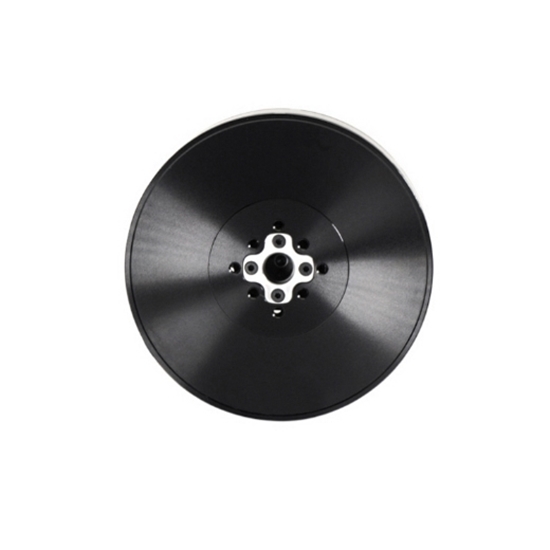

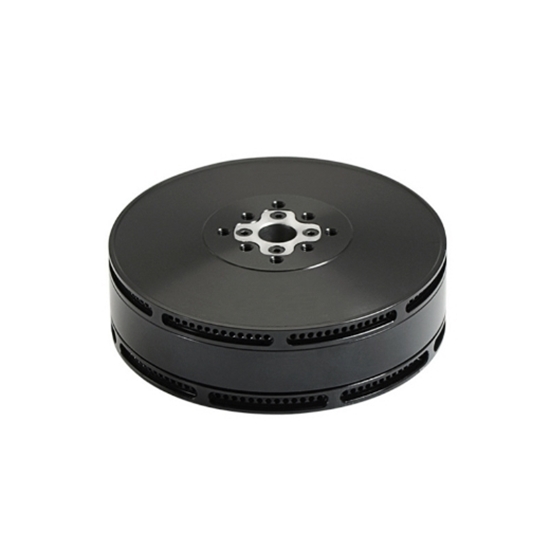

320KV Brushless Motor For Drone, 4S/6S

0 reviews • Write a review

from

$211.04

Ex Tax: $211.04

Stock: In Stock
Model: RDDLZ-BDM-320
Weight: 1.00
SKU: RDDLZ-BDM-320

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 320KV/420KV/580KV brushless motor is designed for multirotor drone. Heavy lift drone motor comes with 4S/6S rated voltage to spin 15/16/17 inch propeller and generate the thrust that your drone can fly. The drone motor rpm is optional, suitable for various working environments.

Specifications

Model	RDDLZ-EOLO-4112
Motor KV	320	420	580
Number of Stator Slots	12	12	12
Number of Rotor Poles	14	14	14
Motor Size	φ47.5*37.3mm	φ47.5*37.3mm	φ47.5*37.3mm
Shaft Diameter	4.0mm	4.0mm	4.0mm
Motor Silicone Wire	20AWG 600mm	20AWG 600mm	20AWG 600mm
Motor Weight (Including Wires)	197g	199g	200g
Rated Voltage (Lipo)	6S	6S	4S
No-Load Current	0.5A/10V	0.7A/10V	1.1A/10V
Maximum Continuous Power	825W	1000W	1020W
Maximum Continuous Current	33A/30s	40A/30s	62A/30s
Recommended ESC	40A	40A	50A
Recommended Propeller	CN17*6.2	CN155.5/C155.5	CN176.2/CN155.5

Features

High-efficiency 320KV/420KV/580KV brushless motor is designed for drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

Dimensions (Unit: mm)

Tips: What is KV in Brushless Drone Motors?

"KV" (not to be confused with “kV” the abbreviation for kilovolt) talks about the constant speed of the motor. The KV rating indicates the RPM a particular motor can produce when a given voltage is applied. Typically, the applied voltage is 1 volt of current. This voltage is usually used without any load connected to the motor.
