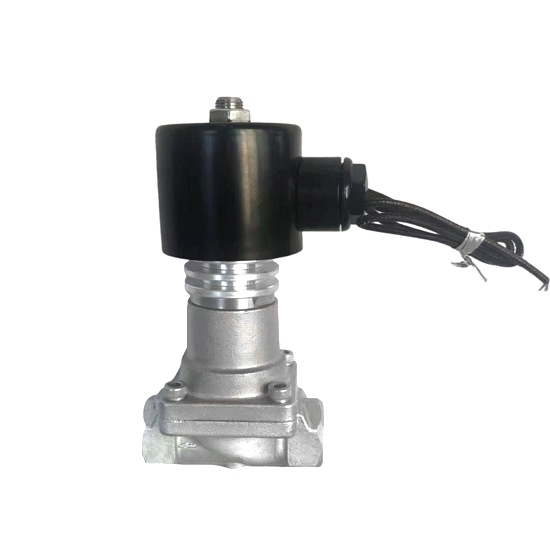

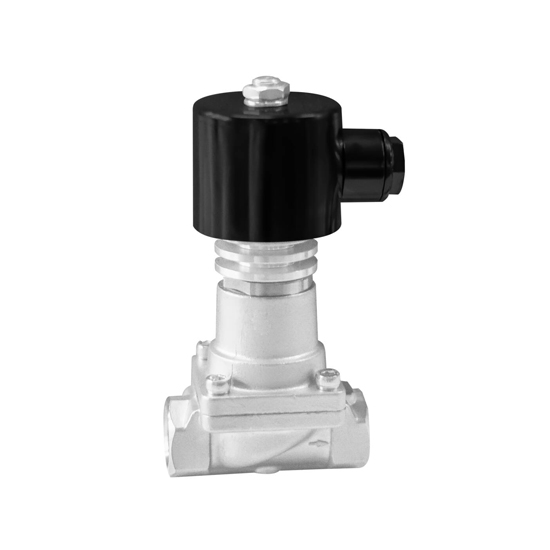

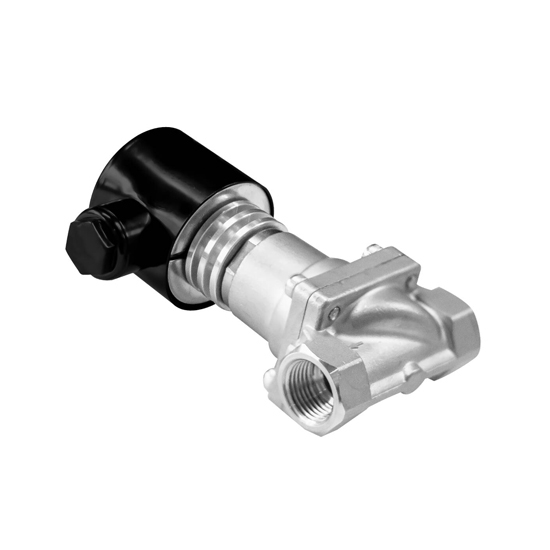

Steam Solenoid Valve, NPT, Stainless Steel, DC 12V/24V

0 reviews • Write a review

from

$312.76

Ex Tax: $312.76

Stock: In Stock
Model: RDDLZ-SSV-HK10SD
Weight: 1.00
SKU: RDDLZ-SSV-HK10SD

Available Options

Voltage

Port Size

Fluid Temperature

Valve Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High temperature steam solenoid valves are suitable for media such as steam, hot water, and oil, and can operate stably under pressure ranges from 0.05 MPa to 1.6 MPa. It is designed for high temperature environments and provides fluid control in various industrial applications.

Specification

Model		RDDLZ-HK10S-12	RDDLZ-HK10S-15	RDDLZ-HK10S-20	RDDLZ-HK10S-25	RDDLZ-HK10S-32	RDDLZ-HK10S-40	RDDLZ-HK10S-50
Port Size		3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)		12	15	20	25	32	40	50
Cv		4.5	4.5	9.3	12	24	29	48
Min Pressure		0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa
Max Pressure (AC 28VA)		1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Max Pressure (DC 22W)		1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Medium		Steam, hot water, oil, etc
Fluid Temperature		PEEK (-20℃~300℃), PTFE (-20℃~180℃)
Port Thread		NPT
Voltage		DC 12V/24V
Tolerance		±10%
Coils		Y21H, 28VA (AC), 22W (DC), IP65, 100%ED				Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
Material	Body	Stainless steel
	Seal	PEEK, PTFE
	Armature tube	Stainless steel 304
	Moving iron core	Stainless steel 430F
	Static iron core	Stainless steel 430F
	Springs	Stainless steel 304
	Shading rings	Copper

Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

Dimension (mm)

Size	A	B	C
HK10S-12	73	48	179
HK10S-15	73	48	176
HK10S-20	83	60	189.5
HK10S-25	100	72	189.5
HK10S-32	130	96	214
HK10S-40	130	96	214
HK10S-50	155	122	228

Tips: What is NPT?

NPT (National Pipe Tapered) is a standard type of tapered pipe thread widely used for connecting piping systems. Its design feature is that the thread gradually increases, thereby forming a good sealing effect during connection, effectively preventing the leakage of liquids or gases. NPT threads comply with the standards of the American National Pipeline Manufacturers Association (ANSI), ensuring that fittings from different manufacturers can be interchangeable. Its application scope covers various industrial fields such as water pipes, gas pipelines, steam pipelines, etc., providing reliable sealing and pressure resistance performance.
