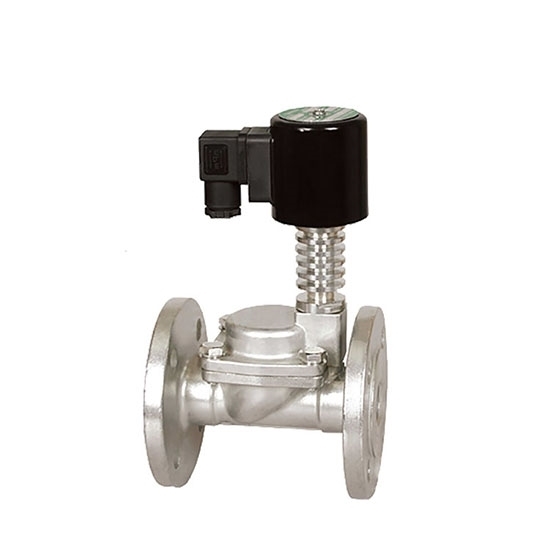

Steam Solenoid Valve, Flanged, Stainless Steel, DC 12V/24V

0 reviews • Write a review

from

$528.76

Ex Tax: $528.76

Stock: In Stock
Model: RDDLZ-SSV-HK10FSD
Weight: 1.00
SKU: RDDLZ-SSV-HK10FSD

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-temperature steam solenoid valve adopts a pilot piston structure, with low power consumption characteristics, suitable for long-term operation of pipeline systems. Steam solenoid valve can be used for media such as steam, hot water, and oil, and its design ensures stability and reliability in high-temperature environments.

Specification

Model		RDDLZ-HK10FS-25	RDDLZ-HK10FS-32	RDDLZ-HK10FS-40	RDDLZ-HK10FS-50
Port Size		1"	1-1/4"	1-1/2"	2"
Orifice (mm)		25	32	40	50
Cv		12	24	29	48
Min Pressure		0.05MPa	0.05MPa	0.05MPa	0.05MPa
Max Pressure (AC 28VA)		1.6MPa	1.6MPa	1.6MPa	1.6MPa
Max Pressure (DC 22W)		1.6MPa	1.6MPa	1.6MPa	1.6MPa
Medium		Steam, hot water, oil, etc
Fluid Temperature		PEEK (-20℃~300℃), PTFE (-20℃~180℃)
Port Thread		Flanged
Voltage		DC 12V/24V
Tolerance		±10%
Coils		Y21H, 28VA (AC), 22W (DC), IP65, 100%ED	Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
Material	Body	Stainless steel
	Seal	PEEK, PTFE
	Armature tube	Stainless steel 304
	Moving iron core	Stainless steel 430F
	Static iron core	Stainless steel 430F
	Springs	Stainless steel 304
	Shading rings	Copper

Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

Dimension (mm)

Size	A	B	C	D
HK10FS-25	130	⌀115	85	⌀65
HK10FS-32	160	⌀140	100	⌀78
HK10FS-40	160	⌀150	110	⌀85
HK10FS-50	190	⌀165	125	⌀100

Tips: The differences between NPT connection and flanged connection

NPT (National Pipe Tapered) connection uses tapered threads along with sealant tape or sealant to create a seal, making them suitable for medium and small diameter pipes. They are easy to install and cost-effective but can be challenging to maintain and may not offer reliable sealing under extremely high pressure and temperature conditions.

Flanged connection involves bolting two flanges together with a sealing gasket in between, making them ideal for large diameter pipes and applications involving high pressure and temperature. They provide superior sealing and easier maintenance but are more complex to install, have higher costs, and require more space.
