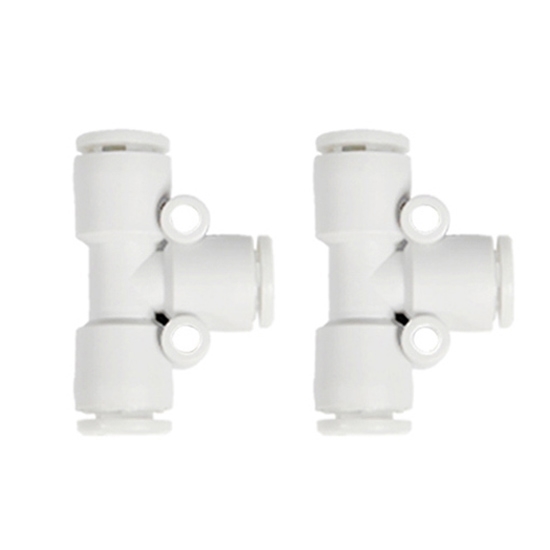

Hose Quick Connector, Intubation Type

Hose Quick Connector, Intubation Type
Hose Quick Connector, Intubation Type
0 reviews • Write a review
from
$3.53
Ex Tax: $3.53
  • Stock: In Stock
  • Model: RDDLZ-QC-I03
  • Weight: 1.00
  • SKU: RDDLZ-QC-I03

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Best price quick connector for sale online. It is available with 03/04/06 mm input cannula diameters. Hose quick connector can quickly connect to the end of hoses, widely use for all kinds of watering equipment, such as sprinklers, sprayers, sprinklers, etc.

Specifications

ModelRDDLZ-KJT
FluidAir/Water
MaterialBrass
Maximum operating pressure1.0MPa
Operating vacuum pressure-100kPa
Proof pressure3.0MPa
Ambient and fluid temperatureAir:-5~60°C, Water:0~40°C
Tubing materialNylon, Soft nylon, Polyurethane
Tubing O.D.Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)ModelWeight (g)
Ø3RDDLZ-KJT03-002.5
Ø3.2RDDLZ-KJT23-002.6
Ø4RDDLZ-KJT04-003
Ø6RDDLZ-KJT06-004.6

Tips: Advantages of quick contactor

  1. The quick connector does not need hot welding, spot glue, no hand screwing nut, only one hand can complete the sealing connection, more pneumatic quick connector solution, integrated automatic airtightness test, and high efficiency.
  2. It is easy to install and operate. The operator only needs to hold the joint, press, or pneumatic drive to align the tubing and seal instantly.
  3. Fast connector with good sealing, safety and reliability, and good stability, to ensure the accuracy of airtightness test data.
  4. RDDLZ quick connector can be connected to a variety of pipe types, straight pipe, threaded pipe, flange pipe, turn over the pipe, gradually expanded pipe, pagoda head, etc.
  5. It is made of wear-resistant brass and a high-quality plastic shell.
