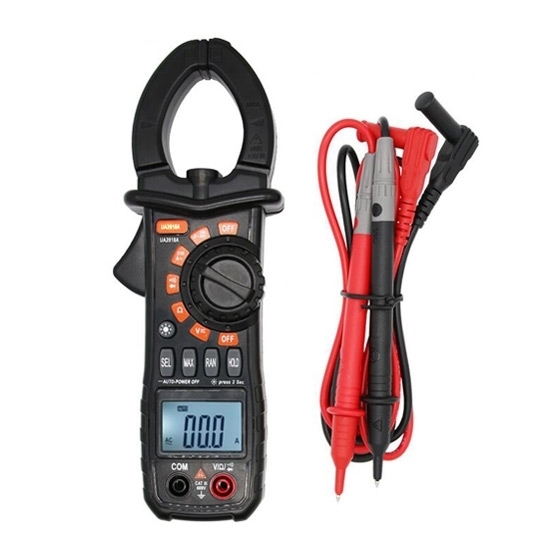

Clamp Meter For True RMS AC Current 600A Measurement

Clamp Meter For True RMS AC Current 600A Measurement
Clamp Meter For True RMS AC Current 600A Measurement
0 reviews • Write a review
from
$88.89
Ex Tax: $88.89
  • Stock: In Stock
  • Model: RDDLZ-CLAM-2018A
  • Weight: 1.00
  • SKU: RDDLZ-CLAM-2018A

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital clamp meter has AC current range 0-600A, TRMS function, maximum jaw opening size 36mm, 4 digit display and maximum value 1999.

Specification:

BasicsModelRDDLZ-UA2018A
Weight530g
Size (L*W*H)210*78*35mm
Display4 digit LCD display
Maximum display value1999
Power supplyDC 4.5V, 3 AAA batteries
Maximum jaw opening size36mm
Woring environmentTemperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
Storage temperature-10℃~+50℃ (14℉~122℉)
AccessoriesA pair of test probes, a user manual, 3 AAA batteries
FunctionsItemRangeAccuracy
AC current600A±(3.0%+10 digits)
DC voltage600V±(0.8%+2 digits)
AC voltage600V±(1.0%+10 digits)
Resistance20MΩ±(1.2%+2 digits)
Special functionsTRMSTrue RMS measurement for sine wave signal
Diode testDisplay forward voltage value of diode
On-off buzzerContinuity test buzzer
Data holdHold the reading when taking a measurement
Automatic power offAutomatic power off when 15 minutes no operation
Overload protectionOverload protection for 100% range
Range selectionManual range selection
BacklightBacklight for LCD display
Inspection lightInspection light for clamp operation
LED torchA LED torch for night lighting

Details

Tips: Resistance measurement of AC clamp meter
To avoid damage to the AC clamp meter or the device under test, all power supply to the circuit under test should be cut off and all high voltage capacitors fully discharged before measuring the resistance.
Resistance measurement:

  1. Turn the rotate dial to the resistance function.
  2. Insert the black test lead into the COM jack，and the red test lead into the resistance jack.
  3. Use the other end of the test pen to measure the resistance of the circuit under test.
  4. Read the measured resistance value from the LCD.

Note:

  1. The measured resistance on the circuit will usually differ from the resistance rating.
  2. In the measurement of low resistance, in order to measure accurately, short-circuit the two test leads, read out the resistance of the test leads short-circuit, after measuring the resistance to be measured to be subtracted from the resistance.
  3. At 20MΩ, the meter may take a few seconds to stabilize the reading, which is normal for high resistance measurements.
  4. When the meter is open, the display will show '0L', indicating that the measured value is out of range.
