3 Pin Covered Toggle Switch

0 reviews • Write a review

from

$16.89

Ex Tax: $16.89

Stock: In Stock
Model: RDDLZ-TS-HKS1202
Weight: 1.00
SKU: RDDLZ-TS-HKS1202

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

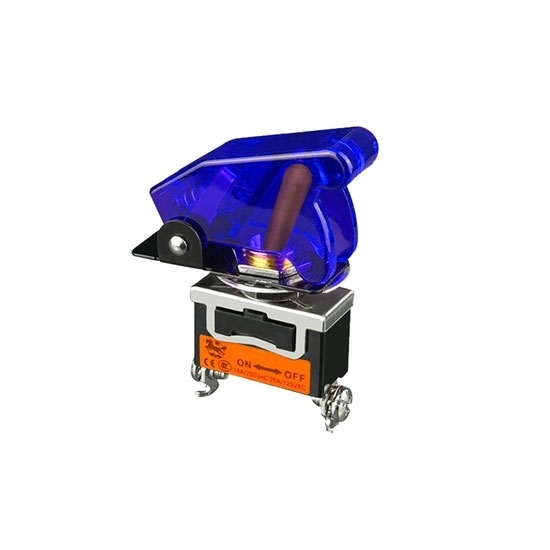

Sell 3 pin toggle switch with blue safety cover, single pole 2 position, hole diameter 12mm, on/off switch, waterproof and corrosion resistant, suitable for auto parts.

Specification:

Model	RDDLZ-TS-HKS1202
Withstand Voltage	AC 1500V/min
Pin	3 pin
Type	Single pole 2 position
Operating Force	2-10N
Use lifetime	>10000 cycles
Cover	Stainless steel
Contact Angle	Brass
Operating Temperature	-25℃~85℃
Contact Resistance	≤0.02
Insulation Resistance	≥1000
Socket	Brass
Warranty	12 Months
Weight	36g

3 Pin Toggle Switch Dimension (unit: mm)

Tips: Toggle switch working principle

In manual operation, the switch action can be divided into two stages. The first stage is to pull the trigger to the middle by hand until the trigger is in the vertical position. At this time, the pointed top of the single-pole slider gradually moves closer to the middle, and further compresses the compression spring. After the trigger passes the vertical position, the single-pole slider moves quickly in the other direction under the pressure of the compression spring, and drives the trigger to turn quickly. The contact pin is quickly connected, this is the second stage. At this time, the separation speed of the contact is related to factors such as the pressure of the compression spring and the friction between the moving parts, and the speed is very high. According to the test, the time from the disconnection of the contact to the reconnection is only about milliseconds, and the average speed is up to milliseconds. This speed is many times faster than manual pull speed or motor test pull speed.
