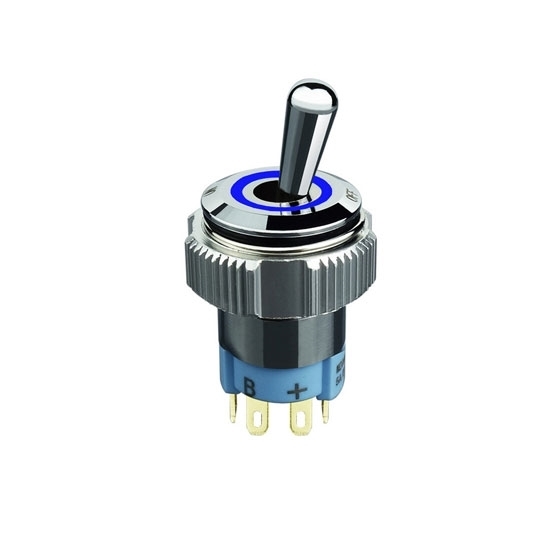

24V Lighted Toggle Switch, 6 Pin

24V Lighted Toggle Switch, 6 Pin
24V Lighted Toggle Switch, 6 Pin
from
$26.89
Ex Tax: $26.89
  • Stock: In Stock
  • Model: RDDLZ-TS-AD16102E2
  • Weight: 1.00
  • SKU: RDDLZ-TS-AD16102E2

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

24V toggle switch with blue led light, can choose other colors of lights, red, yellow, blue, green and white, 4/5/6 pin, 2 position on off, contact resistance 25mΩ.

Specification

ModelRDDLZ-TS-AD16102E2
Rated Current5A
Rated Voltage3~250V AC/DC
Position2 Position, on/off
Pin4, 5, 6 Pin
LED Life Time≤50,000 Times
Insulation Resistance≥100 MΩ
Action Force2.0±0.2N
Action MethodAutomatic Lock
Protection LevelIP67
Operating Temperature-25℃~55℃
Contact Resistance25mΩ
Nut Tightening Force16N
Electrical Life Time≥50,000 Times
Switch Stroke1.2mm
Warranty12 Months
Weight17.8g

6 Pin Toggle Switch Dimension (unit: mm)

Pin Definition

Tips: Application of toggle switch

  • Audio and video products: MP3, MP4 audio.
  • Digital products: digital cameras, digital video cameras, etc.
  • Communication products: mobile phones, car phones, telephones, building equipment, PDAs, etc.
  • Security products: video intercoms, monitors, etc.
  • Toys: electronic toys, etc.
  • Computer products: cameras, etc.
  • Fitness equipment: electronic body fat scales, treadmills, etc.
  • Medical equipment: sphygmomanometer, clinical thermometer, hospital call system, etc.
