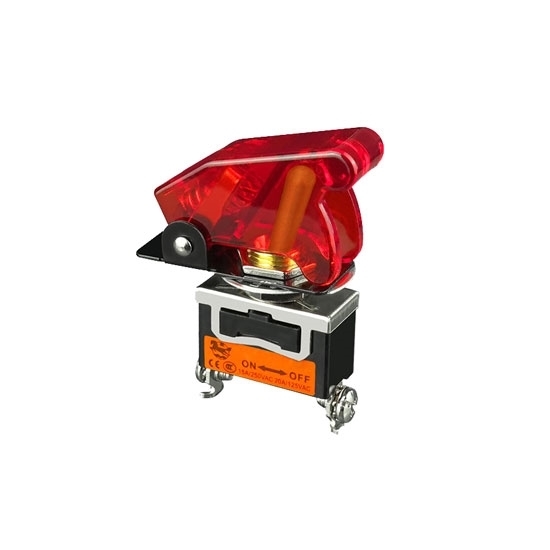

2 Pin Covered Toggle Switch

0 reviews • Write a review

from

$16.89

Ex Tax: $16.89

Stock: In Stock
Model: RDDLZ-TS-HKS1201
Weight: 1.00
SKU: RDDLZ-TS-HKS1201

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

On off waterproof toggle switch can only be activated after flipping the switch guard, 12mm hole size, 2 pin, service life time is more than 10,000 cycles, safe and reliable.

Specification:

Model	RDDLZ-TS-HKS1201
Withstand Voltage	AC 1500V/min
Pin	2 pin
Type	Single pole 2 position
Operating Force	2-10N
Use lifetime	>10000 cycles
Cover	Stainless steel
Contact Angle	Brass
Operating Temperature	-25℃~85℃
Contact Resistance	≤0.02
Insulation Resistance	≥1000
Socket	Brass
Warranty	12 Months
Weight	36g

2 Pin Covered Toggle Switch Dimension (unit: mm)

Tips: What is a toggle switch?

Toggle switch is to switch the circuit by turning the switch handle to make the circuit on or off. The commonly used varieties of toggle switches include single-pole double-position, single-pole three-position, double-pole double-position and double-pole three-position, etc. It is generally used in low-voltage circuits, and has the characteristics of flexible slider action and stable and reliable performance. Toggle switch Mainly widely used in: various instruments/meters and equipment, various electric toys, fax machines, audio equipment, medical equipment, beauty equipment, and other electronic product fields.
