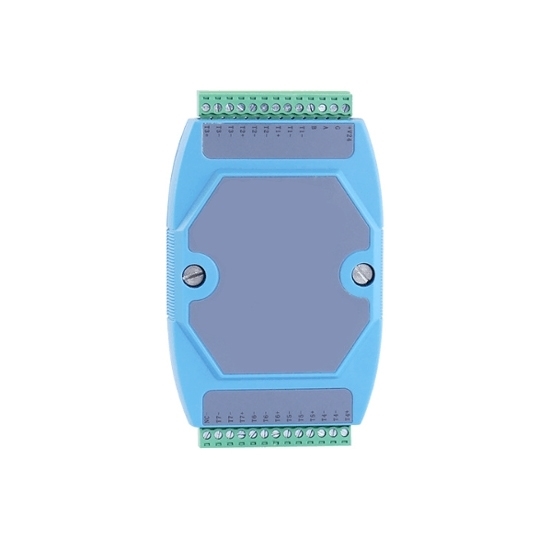

RTD Pt100 To RS485 Converter, 3 Wire, -190~490℃

0 reviews • Write a review

from

$124.56

Ex Tax: $124.56

Stock: In Stock
Model: RDDLZ-RTD-MPT71
Weight: 1.00
SKU: RDDLZ-RTD-MPT71

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RTD Pt100 to RS485 converter, measuring -190~490°C with ±0.1% FS accuracy. Operates on 9~28VDC, with 1500VDC isolation, IP54 protection, and reliable performance from -40°C to 80°C. Ideal for process control, HVAC, power plants, labs, and food industries.

Specification

Model	RDDLZ-MPT71
Input Signal	Pt100 resistance signal (three-wire)
Output Signal	RS485 (RTU)
Measurement Range	-190~490°C
Power Supply Voltage	9~28VDC
Signal Isolation	1500VDC
Maximum Power	0.72W (at 24VDC supply)
Protection Rating	IP54
Overall Weight	≈118g
Operating Temperature	-40~80°C
Conversion Accuracy	±0.1% FS
Housing	ABS engineering plastic

Feature

Supports Multiple Inputs: Equipped with 7 channels for Pt100 three-wire inputs, making it suitable for multi-point temperature monitoring.
Standard RS485 Output: Outputs temperature data via standard RS485 (RTU) communication for seamless integration with industrial systems.
Signal Isolation Feature: Includes built-in signal isolation to enhance safety and protect connected equipment from electrical interference.
Precision and High Resolution: Delivers accurate temperature signal conversion with exceptional resolution for reliable measurements.
Space-saving Design: Compact structure ensures easy integration into confined control panels or equipment setups.

Dimensions and Wiring Diagram

Tips: What are the main applications of this converter?

This converter is versatile and can be used in various industries:

Industrial Process Control: Monitoring and controlling temperature in manufacturing systems like furnaces, chemical reactors, and food production lines.
Energy Systems: Tracking temperature in power plants, turbines, and solar thermal systems.
HVAC Systems: Ensuring efficient heating, ventilation, and air conditioning performance in buildings.
Laboratories and Research: Providing precise temperature measurements for scientific experiments and quality control.
Food and Beverage: Maintaining proper temperatures during processing and storage to ensure product quality and compliance.
