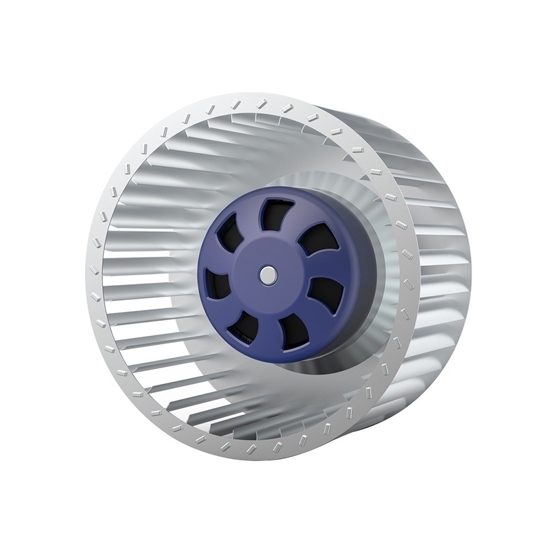

EC Forward Curved Centrifugal Fan, 200mm, 230V

0 reviews • Write a review

from

$615.09

Ex Tax: $615.09

Stock: In Stock
Model: RDDLZ-FCCF-EC200
Weight: 1.00
SKU: RDDLZ-FCCF-EC200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low noise EC (electronically commutated) forward curved centrifugal fan comes with 200mm (8 inch) impeller working at 230V voltage, which combines the efficiency of EC motors with the effective airflow characteristics of forward inclined blades. EC motors are high efficiency and have variable speed control, and integrated electronics, allowing precise performance adjustments.

Specification

Model	RDDLZ-BL-F200B-EC-07
Operating Voltage	230V AC
Frequency	50/60Hz
Max. Power	230W
Motor Power	230W
Max. Current	1.5A
Noise	70dB(A)
Impeller Diameter	200mm (8 inch)
Speed	2450rpm
Air Volume	820m³/h (480 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	PA6+GF
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protector Automatically Reset
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS
Weight	3.5kg

Dimension (Unit: mm)

Performance Curve

Wiring

Detail

Tips: How does an EC forward curved centrifugal fan work?

An EC (Electronically Commutated) forward curved centrifugal fan operates using a combination of a centrifugal fan design and electronic motor control. The forward curved blades, which are curved in the direction of the airflow, draw air into the fan and then propel it outward at a high velocity. This design is ideal for creating high static pressure and ensuring consistent airflow.

The EC motor, a type of brushless DC motor, integrates electronic controls within the motor itself, allowing precise control of speed and efficiency. Unlike traditional motors with separate speed controllers, EC motors adjust the fan speed based on real-time demand and operational conditions. This results in energy savings, reduced noise, and improved reliability. The synergy between the forward inclined blade design and the EC motor’s control system enhances overall performance and efficiency in ventilation and air handling applications.
