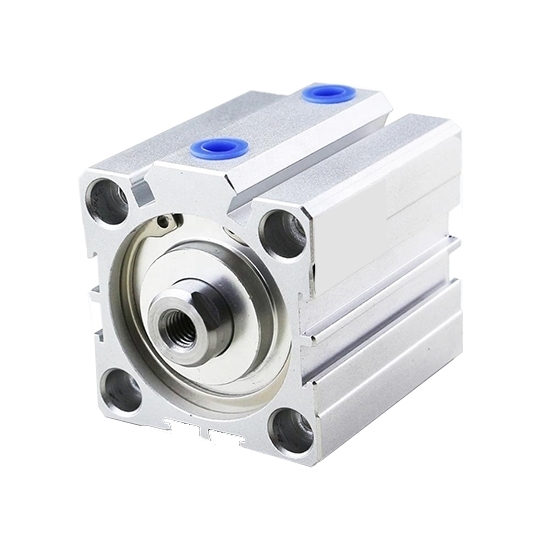

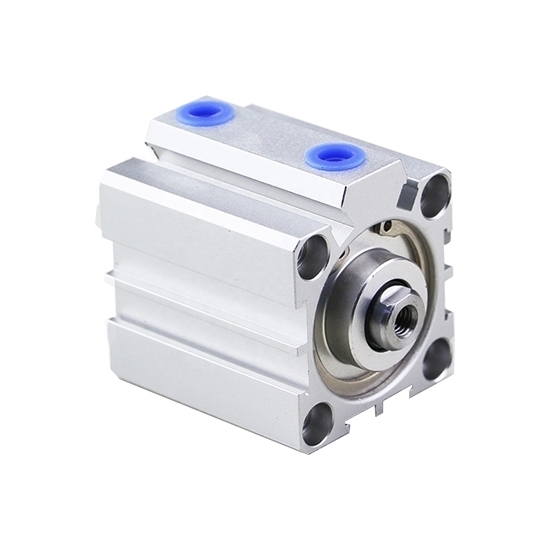

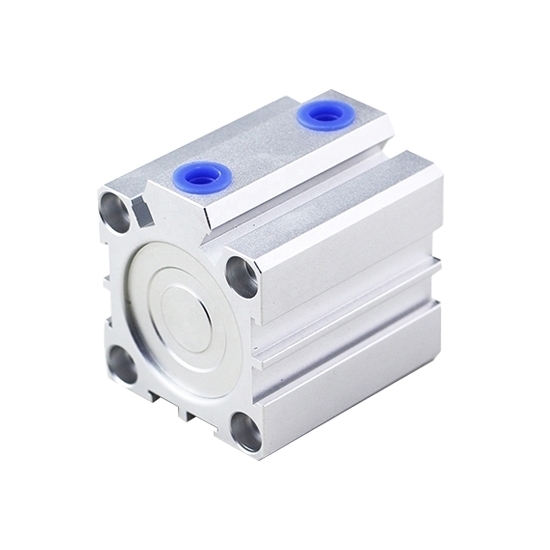

Compact Pneumatic Cylinder, 100mm Bore, 100mm Stroke, Double Acting

0 reviews • Write a review

from

$117.69

Ex Tax: $117.69

Stock: In Stock
Model: RDDLZ-CP-SDA
Weight: 1.00
SKU: RDDLZ-CP-SDA

Available Options

Bore X Stroke

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Pneumatic cylinders with minimized complexity are being sold featuring customizable bore and stroke as well as other selection functions and accessories including high temperature resistance, embedded magnet and male threads. With the cylinder body constructed by aluminum alloy, the device strikes a perfect balance between durability and functionality.

Product features:

There are magnetic switch slots around the cylinder body which is convenient to install a sensor switch.
Multiple bore sizes paired with different stroke lengths are available.
(bore sizes: 12/16/20/25/32/40/50/63/80/100mm)
Riveted structure is adopted to connect the cylinder body and back cover, as well as piston and piston rod to make it compact and reliable.
The seal of piston adopts heterogeneous two-way seal structure to achieve a compact size and grease storage.
Compact size can save significantly the installation area.
The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, delivering excellent abrasion resistance and durability.
Additional functions and accessories are offered for customization.

Specifications:

Model	RDDLZ-CP-SDA
Bore size	12mm	16mm	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100m
Acting type	Double acting
Fluid	Air (to be filtered by 40 um filter element)
Operating pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70℃
Speed range	Double acting: 30~500mm/s
Stroke tolerance	Stroke≤100+1.00 Stroke＞100+1.50
Cushion type	Bumper
Port size	M5 × 0.8				1/8″		1/4″		3/8″

Stroke (unit=mm):

Bore size			Standard stroke	Max. std stroke
12mm 16mm	Double acting	With magnet	5 10 15 20 25 30 35 40 45 50	50
12mm 16mm	Double acting	Without magnet	5 10 15 20 25 30 35 40 45 50 55 60	60
20mm	Double acting	With magnet	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90	90
20mm	Double acting	Without magnet	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100	100
25mm 32mm 40mm 50mm 63mm	Double acting	With magnet	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120	120
25mm 32mm 40mm 50mm 63mm	Double acting	Without magnet	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 130	130
80mm 100mm	Double acting	With magnet	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120	120
80mm 100mm	Double acting	Without magnet	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 130	130
Note) 1.Please contact us for other special strokes. 2.The dimensions of non-std stroke cylinder has the same dimensions as the next longer stroke std. stroke cylinder, e.g. 23mm stroke cylinder has the same dimensions of 25 std. stroke cylinder.

Inner structure and material of major parts:

NO.	Item	Material
1	Back cover	No (Φ12, 16)/ Aluminum alloy (Others)
2	Bumper	NBR
3	Piston	Brass (Φ12, 16)/ Aluminum alloy (Others)
4	Piston seal	NBR
5	Piston rod	Carbon steel with 20 um chrome plated
6	Body	Aluminum alloy
7	Front cover	Aluminum alloy
8	O-ring	NBR
9	C clip	Spring steel
10	Front cover packing	NBR
11	Piston nut	Carbon steel
12	Bushing	No (Φ12~32)/ Wear resistant material (Others)

Dimensions (unit=mm):

Item	A	AC	A	AC	AB	B	BA	D	DA	E	EA	H	J	JA	K	KA	KB	M	MA	P	PA		PB		T
Bore size	Without magnet		With magnet		AB	B	BA	D	DA	E	EA	H	J	JA	K	KA	KB	M	MA	P	St=5	St＞5	St=5	St＞5	T
12	22	17	32	27	5	25	-	6	4	M3×0.5	6	5	6.5	4.5	M5×0.8Thru.hole: Φ4.2	12	16.3	10.2	1	M5×0.8	7.5	7.5	5	5	23
16	24	18.5	34	28.5	5.5	29	-	6	4	M3×0.5	6	5	6.5	4.5	M5×0.8Thru.hole: Φ4.2	12	19.8	11	1.5	M5×0.8	8	8	5	5.5	28
20	25	19.5	35	29.5	5.5	34	36	8	4	M4×0.7	8	6	6.5	4.5	M5×0.8Thru.hole: Φ4.2	14	24	13	1.5	M5×0.8	8	9	5	5.5	-
25	27	21	37	31	6	40	42	10	4	M5×0.8	10	8	8.2	5.5	M6×1.0Thru.hole: Φ5.2	15	28	17	2	M5×0.8	9	9	5.5	5.5	-
32	31.5	24.5	41.5	34.5	7	44	50	12	4.5	M6×1.0	12	10	8.2	5.5	M6×1.0Thru.hole: Φ5.2	16	34	22	2.5	1/8″	9	9	6.5	9	-
40	33	26	43	36	7	52	58.5	16	4	M8×1.25	12	14	10.5	6.5	M8×1.25Thru.hole: Φ6.7	20	40	28	3	1/8″	9.5	9.5	7.5	7.5	-
50	37	28	47	38	9	62	71.5	20	5	M10×1.5	15	17	10.5	6.5	M8×1.25Thru.hole: Φ6.7	25	48	38	4	1/4″	8	10.5	8	10.5	-
63	41	32	51	42	9	75	84.5	20	5	M10×1.5	15	17	10.5	6.5	M8×1.25Thru.hole: Φ6.7	25	60	40	4	1/4″	9.5	12	9.5	11	-
80	52	41	62	51	11	94	104	25	6	M14×1.5	20	22	17	11	M12×1.75Thru.hole: Φ10.4	25	74	45	5	3/8″	11.5	14.5	11.5	14.5	-
100	63	51	73	61	12	114	124	32	7	M18×1.5	20	27	19	13	M14×2.0Thru.hole: Φ12.4	30	90	55	5	3/8″	16	20.5	16	20.5	-

Male thread

Bore size/Item	AB	D	DA	E	EA	EB	F	FA	H	M	MA
12	17	6	16	M5×0.8	10	12	8	4	5	10.2	1
16	17.5	6	16	M5×0.8	10	12	8	4	5	11	1.5
20	20.5	8	19	M6×1.0	13	15	10	5	6	13	1.5
25	23	10	21	M8×1.25	15	17	12	6	8	17	2
32	25	12	22	M10×1.25	15	18	17	6	10	22	2.5
40	35	16	32	M14×1.5	25	28	19	8	14	28	3
50	37	20	33	M18×1.5	25	28	27	11	17	38	4
63	37	20	33	M18×1.5	25	28	27	11	17	40	4
80	44	25	39	M22×1.5	30	33	32	13	22	45	5
100	50	32	45	M26×1.5	35	38	36	13	27	55	5

Note: Optional function of high temperature resistance, embedded magent and male threaded types are offered with extra charges for your customization, and the price list is presented below.

Bore size Extra rates	12mm	16mm	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke length plus 10mm				$1.23	$1.23	$1.38	$1.54	$1.85	$2.31	$2.77
High temperature resistance	$1.08	$1.08	$1.23	$1.54	$1.85	$2.15	$2.46	$3.08	$3.69	$4.92
With magnet	$0.77	$0.77	$0.77	$0.77	$0.92	$1.23	$1.54	$1.85	$2.31	$3.08
Male threaded type	$0.46	$0.46	$0.46	$0.46	$0.46	$0.46	$0.77	$0.77	$1.08	$1.54

Tips: Precautions for installation and application of pneumatic cylinders

When load changes in the work, the cylinder with abundant output capacity shall be selected.
Cylinders with high temperature resistance or corrosion resistance shall be chosen under the condition of the high temperature or corrosion.
Necessary protection measures shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the ingress of particles into the cylinder.
The medium used by cylinder shall be filtered to 40 um or below.
As both of the front cover and piston of the cylinder are short, typically too long stroke can not be selected.
Anti-freezing measures shall be adopted under low temperature environment to prevent moisture freezing.
The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
