0.01μF 100V Disc Ceramic Capacitor

0 reviews • Write a review

from

$1.04

Ex Tax: $1.04

Stock: In Stock
Model: RDDLZ-CC-100V103K
Weight: 1.00
SKU: RDDLZ-CC-100V103K

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

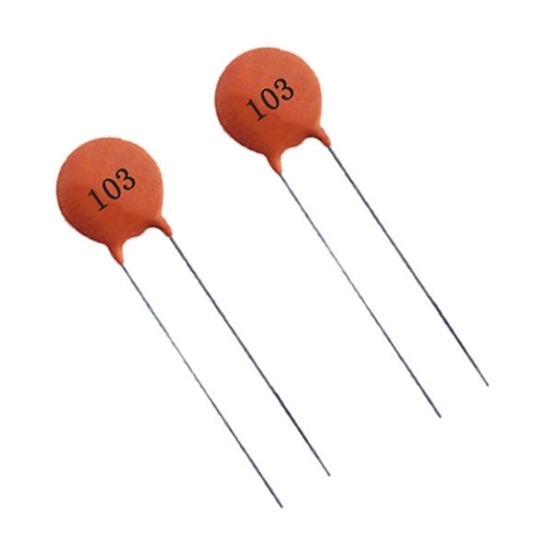

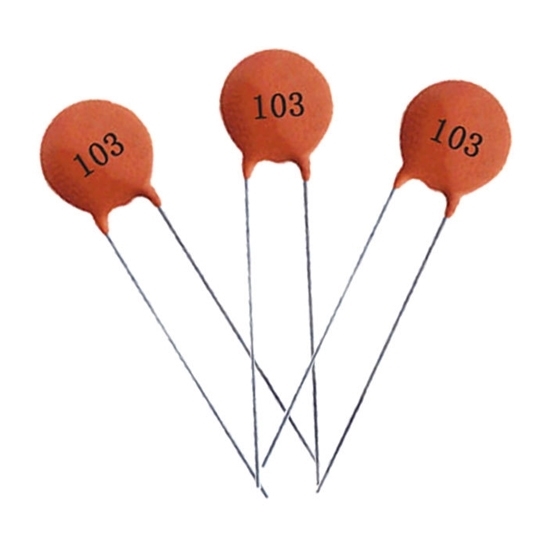

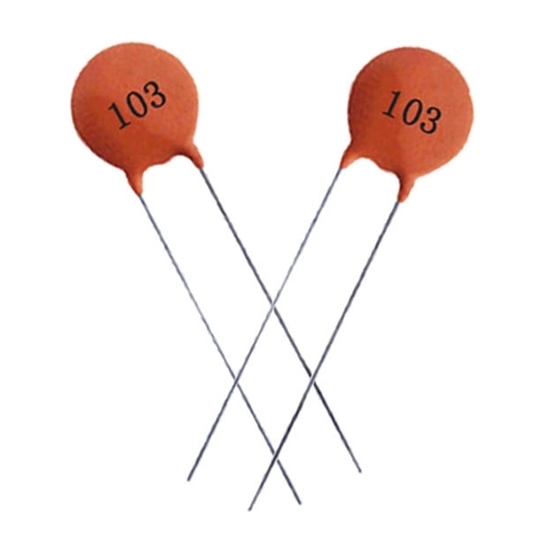

103 100V disc ceramic capacitor is a low voltage power capacitor with 3mm lead pitch, which can be used for household appliances.

Specification

Model: RDDLZ-100V103K
Series: Low Voltage Disc Ceramic Capacitor
Capacitance: 0.01μF (10000pF, 10nF)
Rated voltage: 100V
Tolerance: 20%
Dielectric Material: Y5T
Operating Temperature Range: -40℃ - 105℃
Feature: Medium Frequency
Lead Type: Radial Lead Wire
Lead Pitch: 3mm
Installation Type: In-line
Package: DIP
Application: Household Appliances
Medium Material: Ceramic (Porcelain)
Loss: 0.01%
Weight: 0.02kg

Note:

Capacitance: Under 1KHz (CLASSII), or 1MHz (CLASSI) and 25℃±2℃, Vrms = 1.0V conditons, not exceed capacitance tolerance.
Dissipation factor(D.F.): SL. YL Q> 1000, Y 5P Y 5U Y5V D.F. < 2.5%, Bn D.F. <0.5%, 2R D.F. <0.1%
Insulation resistance: At DC500V voltage for 1 minute CASSAII.R. ≥10,000MΩ, CLASSIII.R. ≥4000MΩ
Test voltage: UR< 6kV, Ut=1.5UR + 500V UR≥ 6kV, Ut = 1.5 x UR

Tips: What is a ceramic capacitor?

Ceramic chip capacitor is a kind of capacitor which uses ceramic material as medium, coats a layer of metal film on the ceramic surface, and then sinters it at high temperature as an electrode. It is usually used in highly stable oscillation circuits as a loop, bypass capacitor and pad capacitor.
