Cable Drag Chain, 25 X 60mm

0 reviews • Write a review

from

$62.89

Ex Tax: $62.89

Stock: In Stock
Model: RDDLZ-CDC-T25
Weight: 1.00
SKU: RDDLZ-CDC-T25

Available Options

Short Description

Model

Length

Bending Radius

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

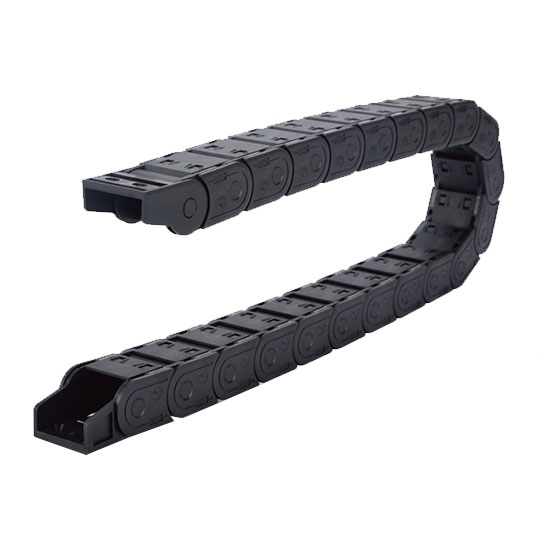

Cable drag chain for sale, inner size 25 x 25mm, 25 x 38mm, 25 x 50mm and 25 x 60mm are available. Cable drag chain is suitable for use in reciprocating situations, such as CNC machine tools, electronic equipment and lifting and transportation equipment.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	RDDLZ-CDC-T2525	RDDLZ-CDC-T2538	RDDLZ-CDC-T2550	RDDLZ-CDC-T2557	RDDLZ-CDC-T2560
Inner Height	25	25	25	25	25
Inner Width	25	38	50	57	60
Outer Height	36	36	36	36	36
Outer Width	40	53	65	72	75
Bending Radius ®	40mm, 55mm, 75mm, 100mm, 125mm, 150mm, 175mm
Open Mode	Bridge type	Bridge closed
Aperture (φ)	6.3	6.3 x 11.3	6.3 x 16.3
Connector Hole Distance	A=14, B=11.5	A=22, B=11.5	A=29, B=11.5	A=36, B=11.5	A=36, B=11.5
Connector Ordering Model	25.25.Q.12PZ (Figure 1)	25.38.Q(F).12PZ (Figure 2)	25.50.Q(F).12PZ (Figure 2)	25.57.Q(F).12PZ (Figure 2)	25.60.Q(F).12PZ (Figure 2)
Bridge Weight	0.69kg	0.76kg	0.81kg	0.84kg	0.85kg
Closed Weight	/	0.86kg	1.01kg	1.03kg	1.09kg

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 46.4mm, excluding the number of joints per meter= 22, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	40	55	75	100	125
H	116	146	186	236	286
D	105	120	140	165	190
K	229	276	339	417	496

Tips: Features of cable drag chain

Drag chain cables are mainly used in industrial electronic systems, automatic generation lines, automation equipment, storage equipment, robots, robot arms, fire fighting systems, cranes, CNC machine tools and metallurgical industries.

The main characteristics of cable drag chain are bending resistance, torsion resistance, bending resistance, shallow water resistance, oil resistance, UV resistance, weather resistance, cold resistance, abrasion resistance, ability to withstand heavier mechanical external forces, and faster acceleration and stronger flexural resistance, suitable for installation under continuous reciprocating motion, especially in frequent bending occasions under industrial environment.
