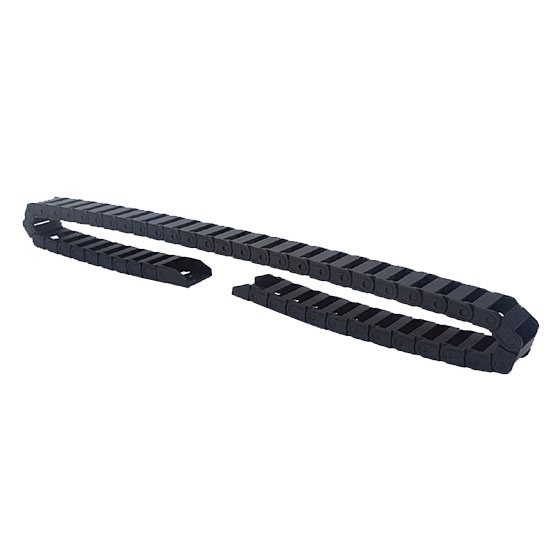

Cable Drag Chain, 10 X 20mm

0 reviews • Write a review

from

$49.72

Ex Tax: $49.72

Stock: In Stock
Model: RDDLZ-CDC-T10
Weight: 1.00
SKU: RDDLZ-CDC-T10

Available Options

Short Description

Model

Length

Bending Radius

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Plastic cable drag chain innner size can choose 10 x 10mm (0.39" x 0.39mm"), 10 x 15mm (0.39" x 0.59"mm), 10 x 20mm (0.39' x 0.78") and 10 x 30mm (0.39" x 1.18"mm). Simple installation, work smoothly, traction and protect built-in cables, oil pipes, air pipes, water pipes, etc.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	RDDLZ-CDC-T1010	RDDLZ-CDC-T1015	RDDLZ-CDC-T1020	RDDLZ-CDC-T1030
Inner Height	10mm	10mm	10mm	10mm
Inner Width	10mm	15m	20mm	30mm
Outer Height	15mm	15mm	15mm	15mm
Outer Width	18mm	23mm	28mm	38mm
Bending Radius ®	18mm, 28mm, 38mm
Open Mode	Bridge cannot be opened
Aperture (φ)	4 x 7Lmm
Connector Hole Distance	B=8mm, C=9mm	B=8mm, C=9mm	A=12mm, B=8mm, C=9mm	A=12mm, B=8mm, C=9mm
Connector Ordering Model	10.10.B1.12PZ.(figure1)	10.15.B1.12PZ.(figure1)	10.20.B1.12PZ.(figure2)	10.30.B1.12PZ.(figure3)
Weight	0.16kg	0.18kg	0.19kg	0.22kg

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 20.7mm, excluding the number of joints per meter= 49, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	18	28	38
H	51	71	91
D	47	57	67
K	101	131	164

Cable drag chain installation tips

1. Do not untie the cable from one end of the cable drag chain. Instead, rotate the cable drag chain to unfold the cable. If necessary, unfold or hang the cable.
2. Attention must be paid to the minimum bending radius of the cable.
3. The cables must be laid loosely side by side in the drag chain, separated as much as possible, separated by spacers or penetrated into the separation cavity of the bracket, the gap between the cables in the drag chain should be at least 10% of the cable diameter.
4. The cables in the drag chain must not touch each other or be bundled together.
5. Both points of the cable must be fixed, or at least the moving end of the drag chain must be fixed. Generally, the distance between the moving point of the cable and the end of the able drag chain should be 20-30 times the diameter of the cable.
6. Ensure that the cable moves completely within the bending radius, that is, it cannot be forced to move. This way the cables can be moved with each other. After a period of operation, it is best to check the position of the cable. The inspection must be carried out after the push and pull movement.
7. If the drag chain breaks, the cable also needs to be replaced, because damage caused by excessive stretching cannot be avoided.
