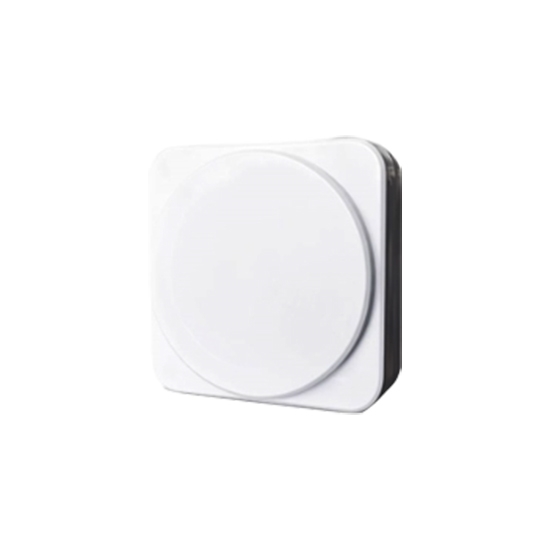

MmWave Radar Presence Sensor, RS485 Output

0 reviews • Write a review

from

$121.85

Ex Tax: $121.85

Stock: In Stock
Model: RDDLZ-RPS-FDD-12
Weight: 1.00
SKU: RDDLZ-RPS-FDD-12

Available Options

Short Description

Gateway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The mmWave Radar Presence Sensor uses sensitive radar technology to detect human presence through breathing, heart rate, and micro-movements. The smart presence sensor supports fall alerts, distance detection, and range setting, accurately sensing even stationary people up to 4 meters. RS-485 output enables smart data collection and management.

Specification

Model	RDDLZ-RPS-FDD-12
Signal Output	RS485 output
DC Power Supply	DC 12V
Warm-up Time	1min
Working Temperature	-10°C-55°C
Working Humidity	0-95% RH, non-condensing
Material	ABS
Installation	Ceiling
Note	If you require air quality monitor sensors in other measurement ranges not listed in the table above, please contact us with your operating environment to help you select the right sensor for your application.

Feature

Accurate Fall Detection: mmWave radar presence sensors use ultra-wideband radar to detect posture changes and provide real-time fall alerts.
Motion & Presence Monitoring: Identifies human movement, stillness, and occupancy status for reliable indoor monitoring.
High Sensitivity: Detects micro-movements within a 4-meter range, ensuring precise detection even for static individuals.
RS-485 with Modbus RTU: millimeter-wave radar presence sensor supports standard protocol for easy system integration and centralized management.
Flexible Installation: Designed for ceiling mounting with optimized beam coverage in bathrooms, elevators, and smart spaces.

Dimension (unit: mm)

Detection Range

Maximum Detection Ranges:

Human Activity Detection: Up to 4m × 6m
Static Presence Detection: Up to 4m × 4.5m
Fall Detection: Up to 2m × 2m

Applications

Tips: What is mmWave Radar Presence Sensor?

The mmWave Radar Presence Sensor is a high-precision sensor that utilizes millimeter-wave radar technology to detect human presence, movement, and micro-motion, even through non-metallic obstacles such as glass or plastic. Unlike traditional infrared or ultrasonic sensors, mmWave radar operates reliably in various lighting and environmental conditions, offering higher accuracy and privacy. It is ideal for applications such as smart lighting, security monitoring, and elderly care, providing real-time occupancy detection and status feedback with minimal false triggers.
