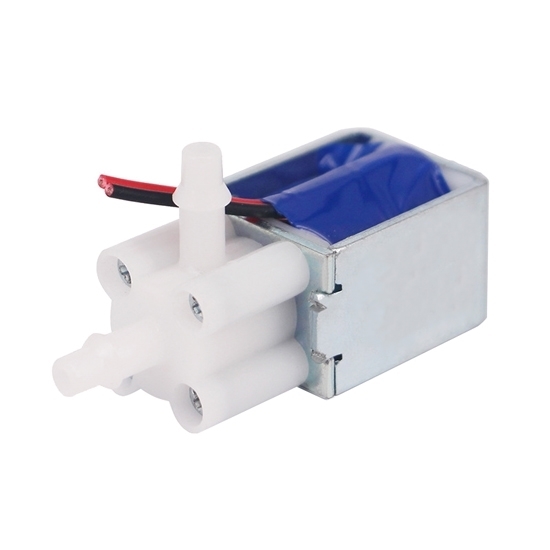

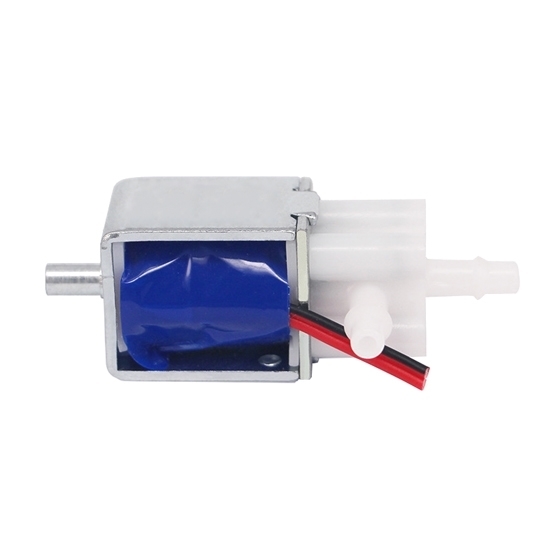

3V Mini Solenoid Valve, 2 Way

0 reviews • Write a review

from

$49.37

Ex Tax: $49.37

Stock: In Stock
Model: RDDLZ-MSV-3V
Weight: 1.00
SKU: RDDLZ-MSV-3V

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

A mini solenoid valve is a type of solenoid valve that is compact in size and designed for applications where space is limited or where smaller flow rates are required.

Features:

Good food grade rubber material, high purity, good wear resistance, long life.
Compact design, low temperature rise, no noise, fast response, high frequency.
High quality motor, strong and durable, less heating noise, surface increase is not easy to corrosion process, ease of use.

Specification:

Model	RDDLZ-KYK0626GF-3V
Rated Voltage	DC 3.0V
Rated Current	857 mA±15%
Resistor	3.5Ω±15%
Exhaust Time	max.30seconds from300mmHg reduce to 15mmHg at 100CC tank
Airtightness	max.3mmHg from 300mmHg at 100CC tank
Insulation Grade	A
Used Fluid	air
Use Environment	0-50℃ 75% RH
Working Mode	normally closed
Life Test	200000 times (12s on and 5s off)
Net Weight	41g

Dimension (Unit: mm)

Application:

Tips: How to Maintain Mini Solenoid Valve?

Regular inspection. Periodically inspect the valve for any signs of wear, corrosion, or damage. Check the valve body, coil, and electrical connections for any issues.
Cleaning. Keep the valve and its surrounding area clean to prevent dust or debris from interfering with its operation. Use a soft brush or compressed air to remove any accumulated dirt.
Lubrication. If your solenoid valve requires lubrication, follow the manufacturer's recommendations regarding the type of lubricant and the proper application method. Over-lubrication can be as detrimental as no lubrication, so be cautious.
Electrical connections. Check the electrical connections and wiring for any loose connections or signs of damage. Secure any loose connections and replace damaged wires if necessary.
