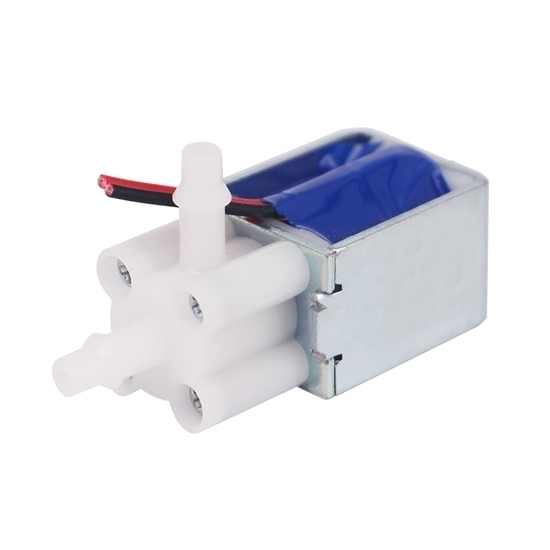

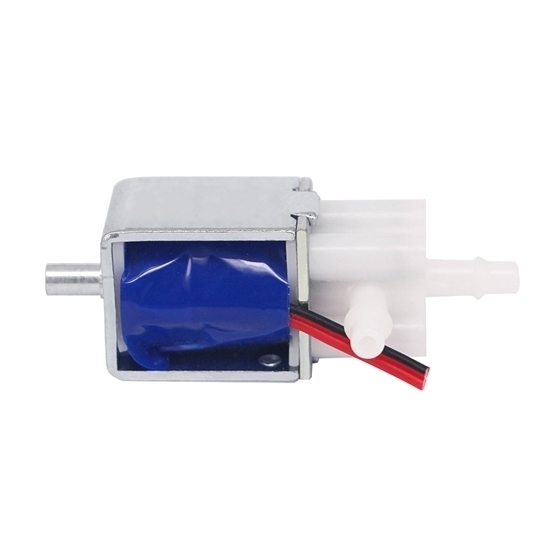

12V Mini Solenoid Valve, 2 Way

0 reviews • Write a review

from

$55.63

Ex Tax: $55.63

Stock: In Stock
Model: RDDLZ-MSV-12V
Weight: 1.00
SKU: RDDLZ-MSV-12V

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The smaller size of mini solenoid valves makes them suitable for installations in tight spaces or where weight and size constraints are critical. Despite their reduced dimensions, they still offer reliable and precise fluid control.

Features:

Good food grade rubber material, high purity, good wear resistance, long life.
Compact design, low temperature rise, no noise, fast response, high frequency.
High quality motor, strong and durable, less heating noise, the surface increase is not easy to corrosion process, ease of use.

Specification:

Model	RDDLZ-KYK0626GF-12V
Rated Voltage	DC 12.0V
Rated Current	171 mA±10%
Resistor	70Ω±10%
Exhaust Time	max.30 seconds from 300 mmHg reduce to 15 mmHg at 100 CC tank
Airtightness	max.3 mmHg from 300 mmHg at 100 CC tank
Insulation Grade	A
Used Fluid	air
Use Environment	0-50 ℃ 75% RH
Working Mode	normally closed
Life Test	200000 times (12s on and 5s off)
Net Weight	41g

Dimension (Unit: mm)

Application:

Tips: How Does Mini Solenoid Valve Work?

A mini solenoid valve operates by using an electromagnetic coil to control the flow of fluid or gas through a small opening. The valve consists of a coil, plunger, and a valve body with an orifice. When an electric current passes through the coil, it creates a magnetic field, which attracts the plunger towards the valve body. This movement opens the orifice, allowing the fluid or gas to flow through. Conversely, when the current is removed, the magnetic field collapses, and a return spring pushes the plunger back, closing the orifice and stopping the flow.
