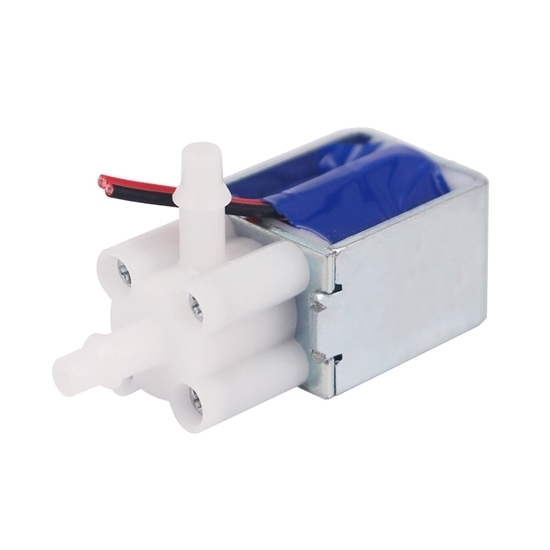

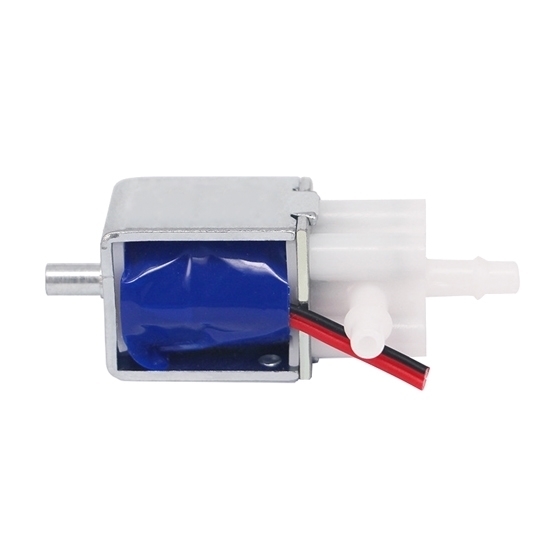

6V Mini Solenoid Valve, 2 Way

0 reviews • Write a review

from

$52.65

Ex Tax: $52.65

Stock: In Stock
Model: RDDLZ-MSV-6V
Weight: 1.00
SKU: RDDLZ-MSV-6V

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Solenoid valves, in general, are electromechanical devices used to control the flow of fluids (liquids or gases) through a system. They work by using an electromagnetic coil to actuate a valve mechanism, opening or closing the flow path as needed.

Features:

Good food grade rubber material, high purity, good wear resistance, long life.
Compact design, low temperature rise, no noise, fast response, high frequency.
High quality motor, strong and durable, less heating noise, the surface increase is not easy to corrosion process, ease of use.

Specification:

Model	RDDLZ-KYK0626GF-6V
Rated Voltage	DC 6.0V
Rated Current	375 mA±10%
Resistor	16Ω±10%
Exhaust Time	max.30 seconds from 300 mmHg reduce to 15 mmHg at 100 CC tank
Airtightness	max.3 mmHg from 300 mmHg at 100 CC tank
Insulation Grade	A
Used Fluid	air
Use Environment	0-50 ℃ 75% RH
Working Mode	normally closed
Life Test	200000 times (12s on and 5s off)
Net Weight	41g

Dimension (Unit: mm)

Application:

Tips: What are the Advantages of Mini Solenoid Valve?

Fast Response. Mini solenoid valves typically have lower internal volumes, which results in faster response times. This quick response is crucial in applications requiring rapid and precise control of fluid or gas flow.
Low Power Consumption. Due to their smaller size and reduced internal volume, mini solenoid valves generally require less power to operate. This makes them energy-efficient and suitable for battery-powered devices or applications where power consumption is a concern.
Precise Control. Mini solenoid valves offer precise and accurate control over the flow of fluids or gases. This level of control is crucial in applications such as medical devices, analytical instruments, and other precision equipment.
