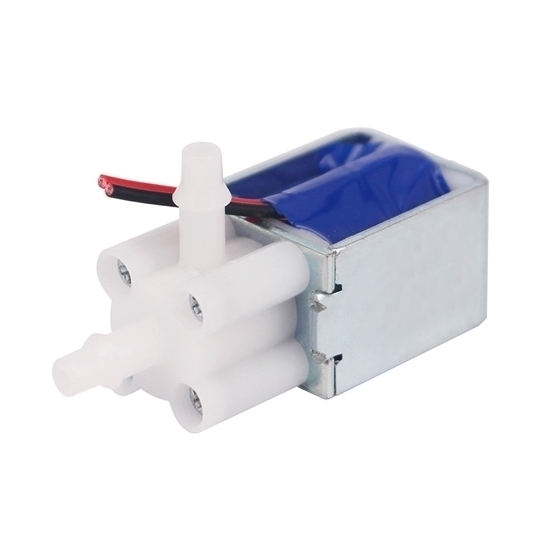

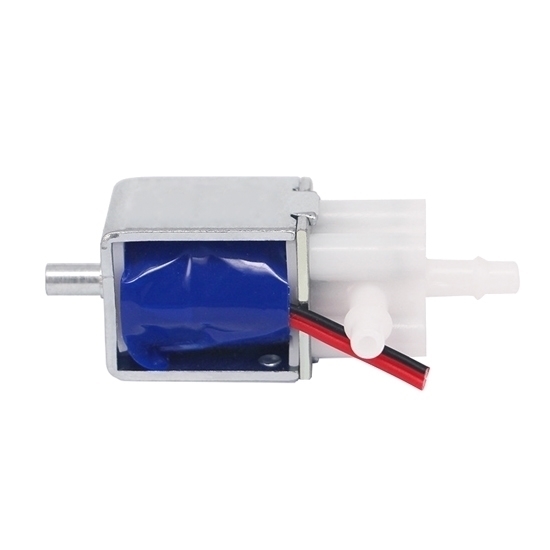

24V Mini Solenoid Valve, 2 Way

0 reviews • Write a review

from

$59.21

Ex Tax: $59.21

Stock: In Stock
Model: RDDLZ-MSV-24V
Weight: 1.00
SKU: RDDLZ-MSV-24V

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

A miniature solenoid valve is a compact and small-sized electromechanical device used to control the flow of fluids or gases in various applications. It operates on the principle of electromagnetic attraction and is commonly used in situations where space is limited or precise control is required.

Features:

Good food grade rubber material, high purity, good wear resistance, long life.
Compact design, low temperature rise, no noise, fast response, high frequency.
High quality motor, strong and durable, less heating noise, the surface increase is not easy to corrosion process, ease of use.

Specification:

Model	RDDLZ-KYK0626GF-24V
Rated Voltage	DC 24.0V
Rated Current	93 mA±10%
Resistor	260Ω±10%
Exhaust Time	max.30 seconds from 300 mmHg reduce to 15 mmHg at 100 CC tank
Airtightness	max.3 mmHg from 300 mmHg at 100 CC tank
Insulation Grade	A
Used Fluid	air
Use Environment	0-50 ℃ 75% RH
Working Mode	normally closed
Life Test	200000 times (12s on and 5s off)
Net Weight	41g

Dimension (Unit: mm)

Application:

Tips: How to Use Mini Solenoid Valve?

Power supply. Connect the valve to an appropriate power source, usually a DC power supply within the specified voltage range.
Connections. Attach the inlet and outlet ports of the valve to the fluid or gas lines. Use suitable fittings or adapters if necessary.
Electrical control. To open or close the valve, apply power to the solenoid coil. When energized, the coil generates a magnetic field that pulls the valve's plunger, allowing flow through the valve. Cutting off the power will close the valve.
Integration. Integrate the solenoid valve into your system or project, ensuring it functions harmoniously with other components.
Testing. Before implementing the valve in a critical application, perform testing to ensure proper operation and no leaks.
