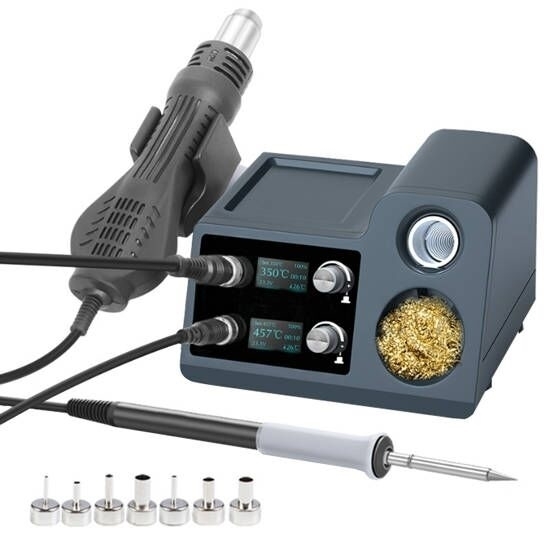

2 In 1 800W Desoldering Station, Variable Temperature

0 reviews • Write a review

from

$236.78

Ex Tax: $236.78

Stock: In Stock
Model: RDDLZ-DS-8115
Weight: 1.00
SKU: RDDLZ-DS-8115

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 in i desoldering station has a fast heating function that allows users to quickly remove solder from boards and components. 800W desoldering station is equipped with built-in safety features such as overheat protection and electrostatic discharge protection to ensure a safe and reliable soldering experience.

Specification

Model	RDDLZ-DS-8115
Dual Screen Digital display	Yes
Auto Shutoff	Yes
Power Consumption	820W
Melting Time	1s
Dimension	170130100mm
Net Weight	536g
Soldering Iron
Power	120W
Output Voltage	DC 24V
Control Method	Knob Adjustment
Display Form	Dual-screen digital display
Temperature Control Range	100-400°C
Handle Cable Length	1.3 Meters
Soldering Iron Length	78mm
Soldering Gun
Airflow Type	Gentle Brushless Blower
Power Consumption	700W
Air Flow	≤ 120L /min
Temperature Range	100- 550°C
Wind Way	Whirlwind
Display Form	Digital Display
Noise	≤45dB
Handle Cable Length	1 Meter

Features

Precision and Control: 800W desoldering station offers precise and controlled solder removal.
Temperature Control: Desoldering stations feature adjustable temperature controls, allowing users to set the optimal temperature for different soldering tasks.
Vacuum Suction: A desoldering station is a built-in vacuum suction mechanism.
Noise Reduction Design: The nozzle spiral guide air can reduce the noise, not direct blowing work, heating air more uniform and stable.

Details

Applications

The application areas of a desoldering station include electronic repair and rework, circuit board maintenance, and soldering/desoldering components for various electronic devices.

Tips: What is a desoldering station?

A desoldering station is a specialized tool used for removing soldered components or solder joints from electronic circuit boards. It is commonly used in electronics repair, prototyping, and manufacturing processes.

A typical desoldering station consists of a heating element, a vacuum pump or suction mechanism, and a temperature control unit. The heating element is usually a heated nozzle or tip that melts the solder, allowing it to be removed. The vacuum pump creates a suction force to extract the molten solder, pulling it away from the joint and into a collection chamber.
