RO Water Purification System, <20ppb TOC, Type 1 & 3

0 reviews • Write a review

from

$4,919.23

Ex Tax: $4,919.23

Stock: In Stock
Model: RDDLZ-WPS-Moatom510
Weight: 1.00
SKU: RDDLZ-WPS-Moatom510

Available Options

Flow Rate

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

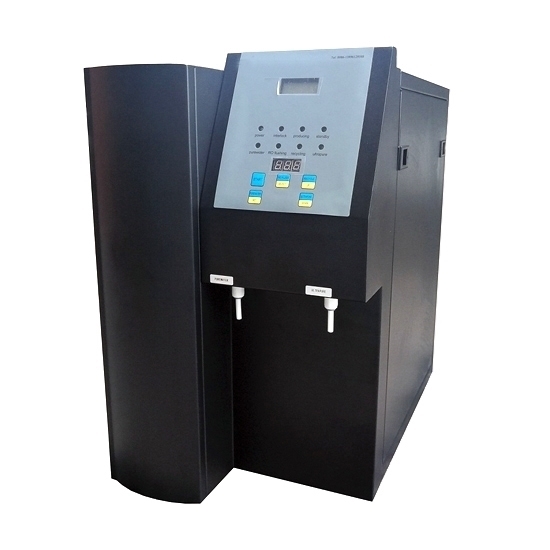

Low cost 10L per hour laboratory water ultrapurifier with 30L tank and metal plate housing, IC microcomputer intelligent control/Full automatic PLC control, ultrapure water & pure water from one unit.

Specification

Model	Moatom510s/ 520s/ 530s	Moatom510d/ 520d/ 530d
Process	Single pass RO system	Double pass RO system
Output of pure water	≥10L/H	≥10L/H
Output of ultrapure water	≥ 1-1.5L/min	≥ 1-1.5L/min
Resistivity at 25℃	18.25MΩ.cm	18.25MΩ.cm
Conductivity at 25℃	≤10μs/cm	≤5μs/cm
TOC	< 20ppb	< 20ppb
Pyrogens	< 0.02EU/ml	< 0.02EU/ml
Absorbance (254nm,1cm optical distance)	≤ 0.001	≤ 0.001
Reactive Silica (SiO2)	< 0.01ppm	< 0.01ppm
Heavy metal	< 0.01ppm	< 0.01ppm
Electrical requirements	220V (230V, 240V) 50Hz
Power	≥100W	≥150W
Dimension (L/W/H)	340550530mm	340550530mm
Weight	≥30KG	≥39KG
Tank capacity	30L

Note: The model end with 's' has single stage RO module, suitable for feed water inlet TDS<200PPM. Model end with 'd' have double stage RO module, suitable for feed water inlet 200ppm400PPM, suggest an additional industrial type softener.

Product Features
Power-on self-test, water shortage protection alarm, power-off protection.
Built-in RO membrane anti-scaling program, RO membrane manual cleaning button.
Built-in ultra-pure water automatic cycle program, manual cycle button to maintain ultra-pure water quality.
On-line monitoring of water resistance, real-time display of system operating status and warnings.
With water quality and water production upgrade function.
Intelligent large-capacity ultra-purification column with built-in RFID chip.
Digital display the time of regular intake or the water pressure.
Easy to clean, disinfect and drain off waste water.

Lab Test and Corresponding Water Type List

Test Name	Type III Water	Type II Water	Type I Water
Lab glassware washing	√
Hydroponics	√
Sterilizer use water	√
Gas generator use water	√	√
Conventional test	√
Reagents/ drugs preparation, dilution	√
Feed water for ultrapure water	√
IC		√
LC/LC-MS			√
HPLC			√
AAS			√
ICP/ICP-MS			√
GC/GC-MS			√
Trace analysis			√
TOC analysis			√
Organic analysis			√
Inorganic analysis			√
Environmental analytical test			√
Microelectronics parts cleaning			√
Precision instrument use water			√
Analytical reagent/ drugs preparation, dilution			√
Mass spectrometry			√
PCR application/analysis			√
DNA/RNA research			√
Proteomics research			√
Plant and animal cell culture			√
Toxicity analysis			√
Microbiology experiment			√
Immunological experiment			√
Biochemistry experiment		√
Serum test		√
IVF			√

Main Consumable List (A water purification system is equipped with a set of consumables. If you want to buy some of the following consumables, contact us now.)

No.	Name	Specification	Lifespan
1	PP filter	1st stage, 10”/20” (5μm)	3-6 months
2	Activated Carbon filter	2nd stage, 10”/20”	6-12 months
3	Softener filter	3rd stage, 10”/20”	6-12 months
4	Precision filter	4th stage, 10”/20” (1μm)	10-12 months
5	RO membrane	75g/300g	1-2 years
6	Ultra purification resin column		1 year
7	Micro filter	0.22μm	1 year
8	UV lamp	185/254nm	8000 hours

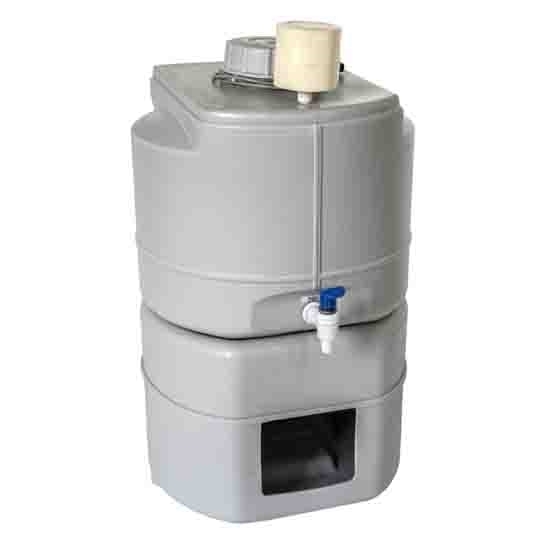

9	Pure water tank	30L, 80L, 120L

Tips: Operation process of RDDLZ laboratory ultrapure water system
1. Check whether the water source stainless steel ball valve switch is open and the power cord is connected.
2. Press the power button. At this time, the “system water making” indicator lights up and starts to work normally.
3. Every 2-3 days, please press the "System Wash" button before taking water after booting. At this time, the system is manually cleaned for 1-2 minutes. After washing, press the "System Wash" switch again.
4. Please keep the plastic ball valve on the water storage bucket in the same direction as the pipeline connection. At this time, do not turn off the ball valve switch. Do not twist the vacuum plug on the bottom of the water storage bucket, otherwise the water storage bucket will be scrapped.
5. Pre-processor cleaning: After a period of time when the equipment is in use, the white PP polymer fiber filter starts to change from white to yellow. At this time, remove the bucket of the preprocessor with a special wrench equipped, take out the fiber filter element and wash it with high-pressure tap water. When reinstalling, check whether the plastic pad inside the bucket is properly mated, and make sure that the bucket does not leak after installation. Activated carbon cleaning is the same method. Under normal circumstances, the cleaning time is 2-3 months / times.
